GRADIENT T47//ADVENTURE DISC FRAMESET

  • £2,499.00
    Unit price per
Tax included.

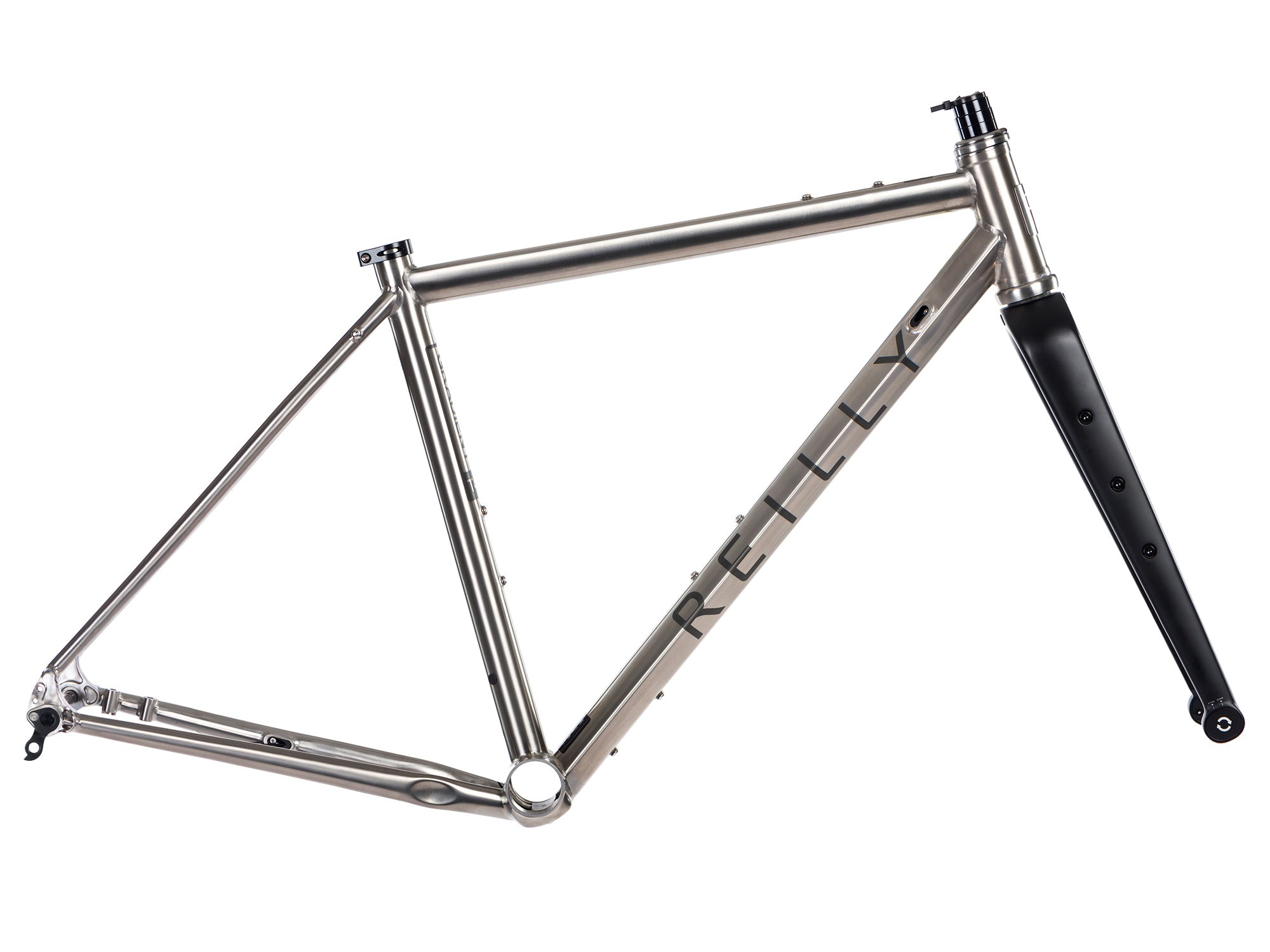

GRADIENT T47 // ADVENTURE DISC FRAMESET

The REILLY GRADIENT T47 - an evolution of the species...

Drawn on the blueprint design of Reilly's ultra successful 3AL-2.5V titanium Gradient, the GRADIENT T47 incorporates an internally cable routed bottom bracket that is compatible with all axle standards producing cleaner lines and mud-free shifting. The new frameset features revised hydroformed down tube and top tube profiles with top tube pack boss mounts and a new carbon fork design incorporating internal dynamo and brake cable routing with variable rake for running 650b or 700c wheels with up to 55mm tyre clearance.

The GRADIENT T47 matches the ride characteristics and the geometry of the original.

The GRADIENT T47 frameset comes with our new titanium headset and titanium rear mech hanger as standard, which is about as standard as this frame gets.


We set the bar with the original, now that bar has been raised to create a truly cutting edge bicycle frame ready for your next big adventure, adding thrills to your bikepacking trip, gravel trails or your daily commute...

T47 Frame Features

  • 3AL-2.5V titanium frame

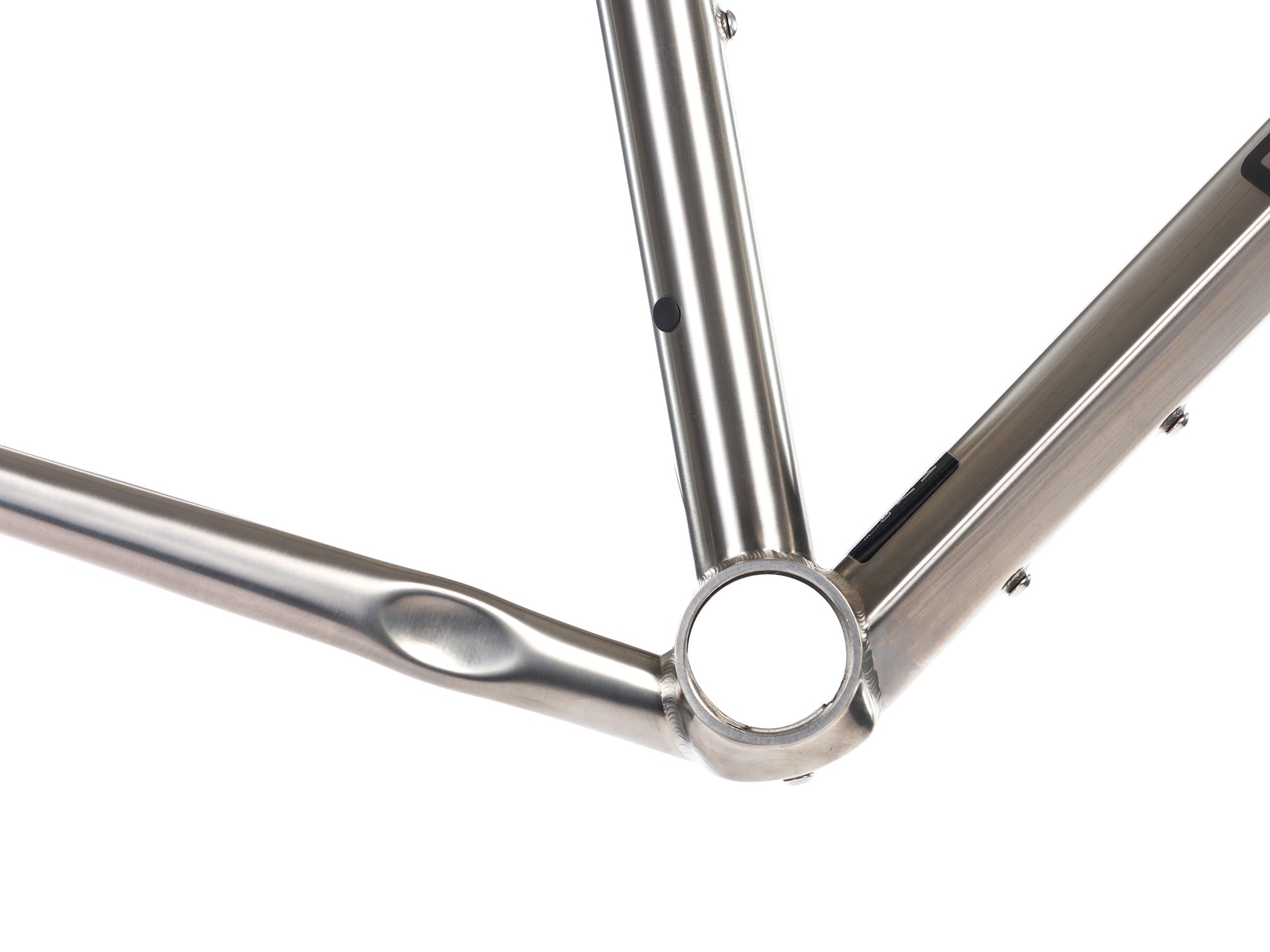

  • English-threaded T47 bottom bracket
  • Revised hydroformed down tube and top tube profiles
  • Internal downtube / bottom bracket cable routing, with BB access port

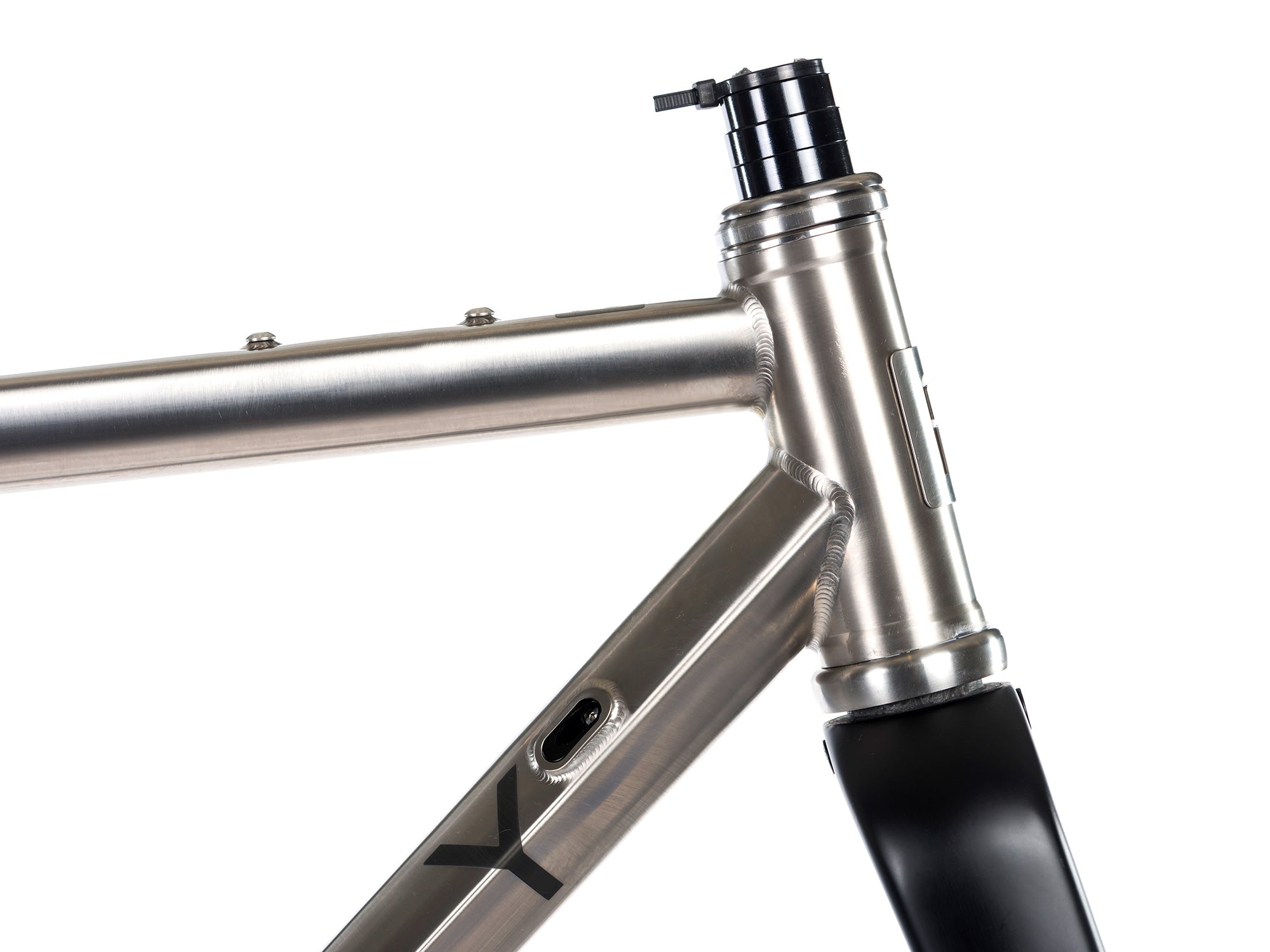

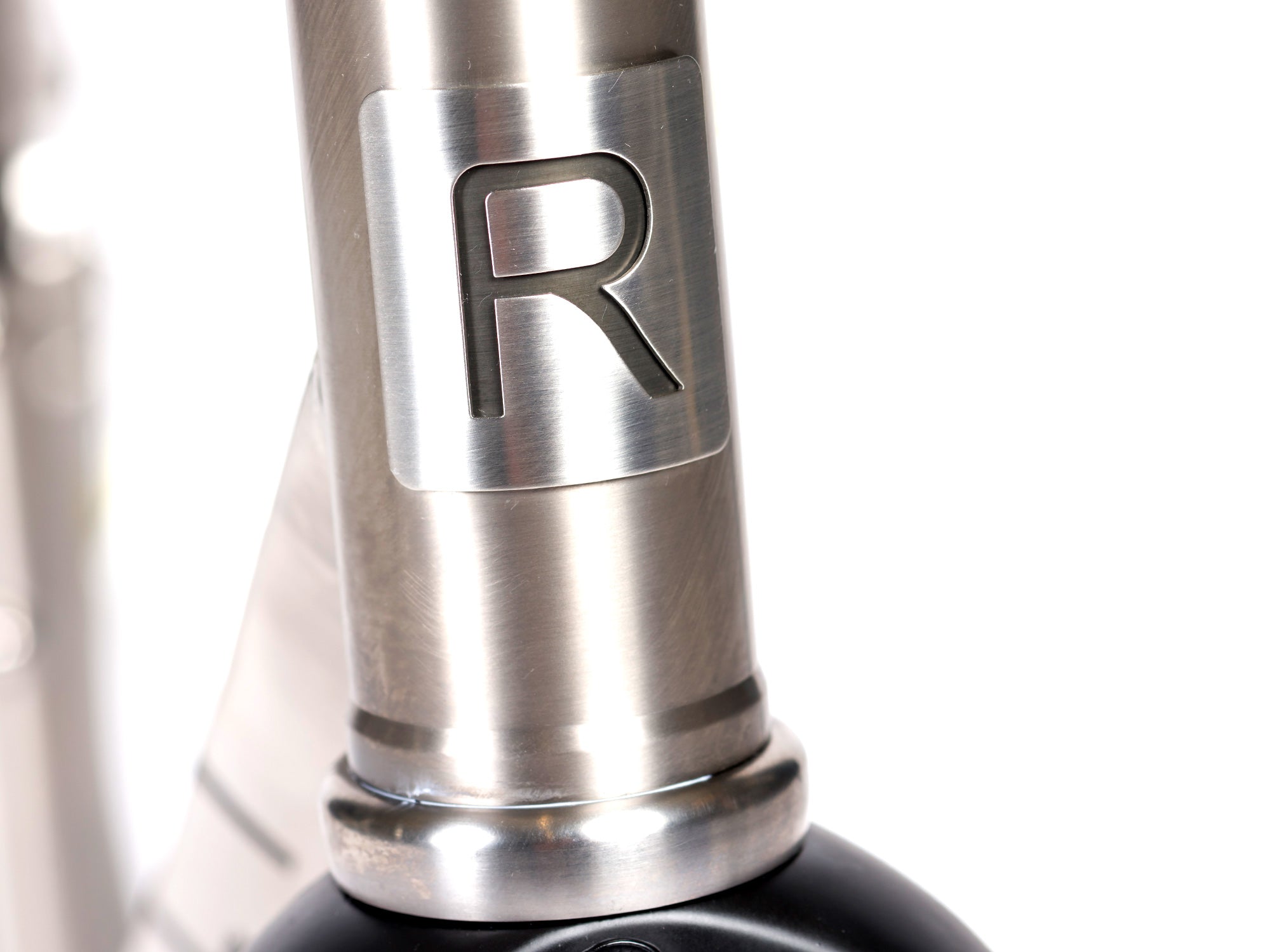

  • Reilly titanium headset for 44mm head tubes and 1 1/8" to 1 1/2" tapered steerers
  • Reilly titanium rear mech hanger
  • Flat mount disc brakes, with ultra secure 42mm x 12mm thru axle
  • Seat stay pannier mounts and mudguard fixings
  • 3 sets of bottle cage mounts, with a 3rd set of bosses on the underside of the down tube perfect for tool kegs
  • Top tube boss mounts for top tube pack
  • 31.6mm seat post size
  • 34.9mm band on front derailleur clamp

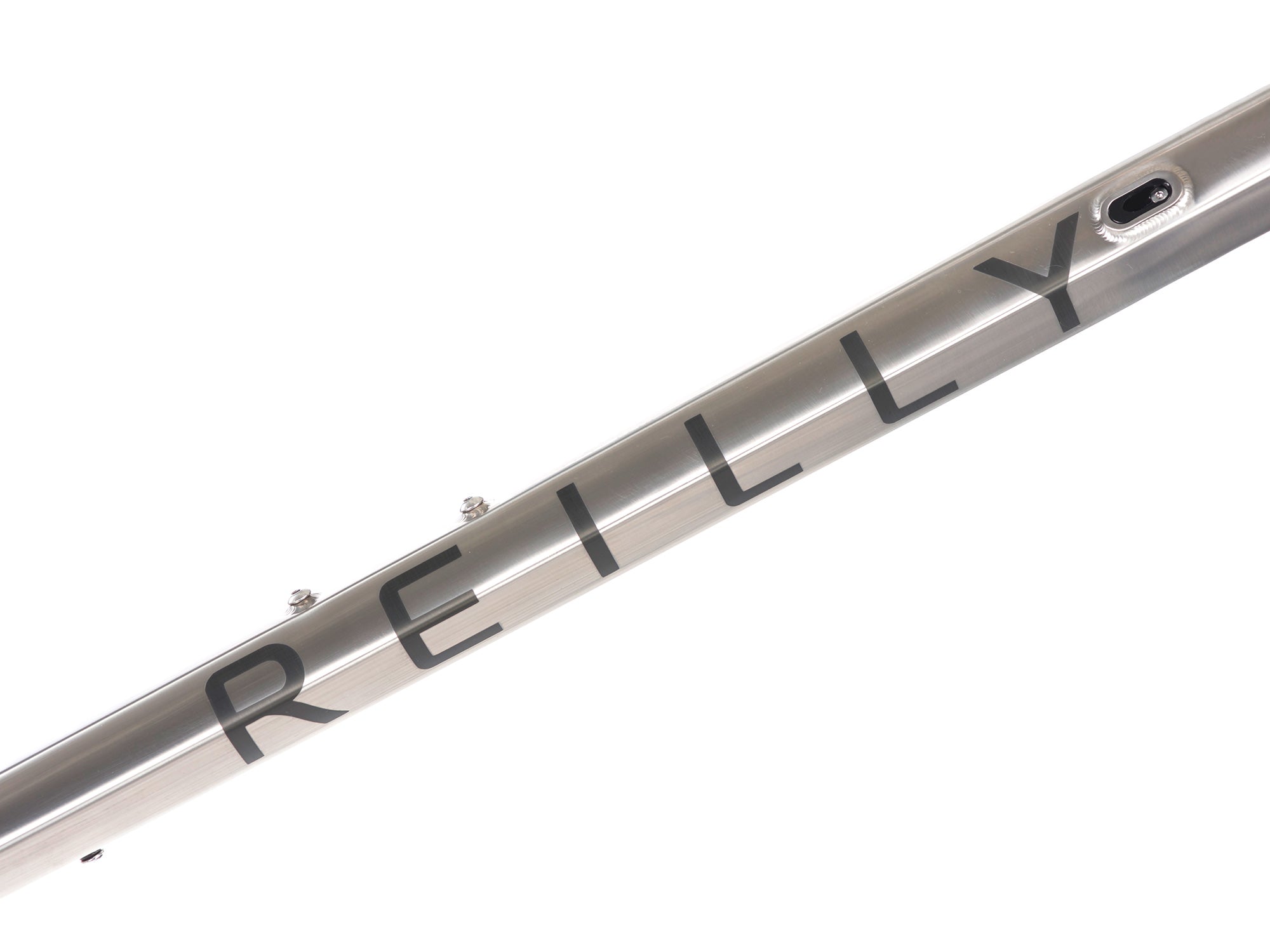

  • REILLY signature black logos / brushed finish as standard
  • Lifetime warranty. This extends to the original owner only and is non-transferable
  • FAQs

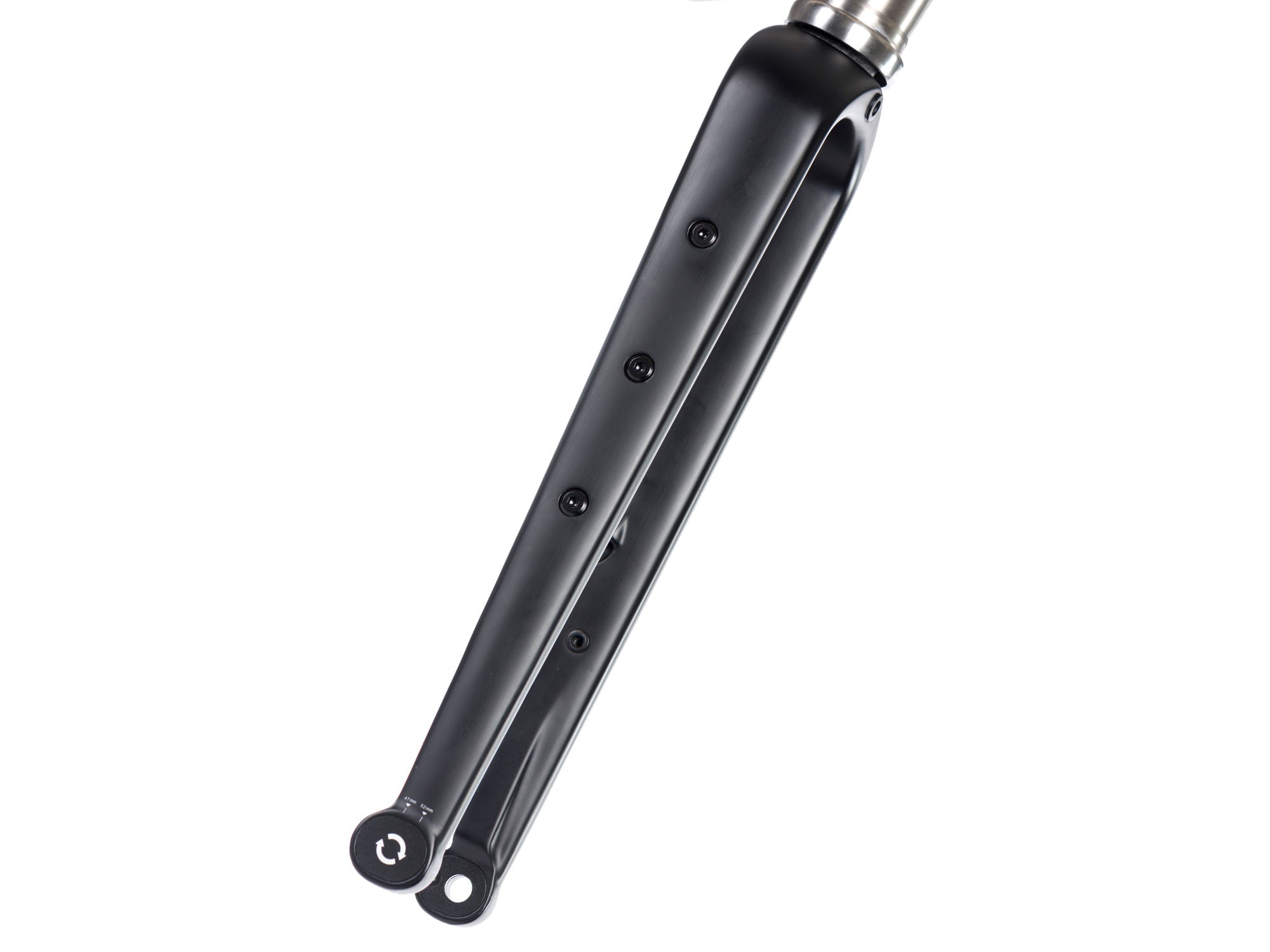

R+five Fork Features

  • T700 Carbon Adventure Fork
  • Super wide clearance for 700c x 55mm or 650b x 2.4" tyres.
  • Adjustable rake (47-52mm)
  • x3 recessed cage mounts on each fork
  • Mudguard / light / pannier mounts
  • Internal disc brake cable routing
  • Internal cable routing for dynamo hub / light / USB charging port

Rider Height vs Frame Sizing

Rider Height (Ft/in) Rider Height (Metres) Suggested Frame Size
5'1" to 5'4" 1.55m to 1.63m EXTRA EXTRA SMALL
5'3" to 5'6" 1.60m to 1.68m EXTRA SMALL
5'5" to 5'8" 1.65m to 1.73m SMALL
5'7" to 6'0" 1.70m to 1.83m MEDIUM
5'11" to 6'2" 1.80m to 1.88m LARGE
6'1" to 6'4" 1.85m to 1.93m EXTRA LARGE
6'3" to 6'6" 1.91m to 1.98m EXTRA EXTRA LARGE


Frame Sizing

SIZE EXTRA SMALL SMALL MEDIUM LARGE
EXTRA LARGE
SEAT TUBE C/TOP 470MM 490MM 510MM 530MM 550MM
TOP TUBE VIRTUAL 520MM 540MM 550MM 570MM 590MM
BB HEIGHT 275MM 275MM 275MM 275MM 275MM
CHAINSTAY LENGTH 430MM 430MM 430MM 430MM 425MM
SEAT TUBE ANGLE 76 75 74 73.5 73
HEAD TUBE ANGLE 70 71 71.5 72 72
FORK RAKE 50MM 50MM 50MM 50MM 50MM
HEAD TUBE 100MM 120MM 135MM 155MM 175MM
AXLE TO CROWN 400MM 400MM 400MM 400MM 400MM
STACK 531MM 552MM 568MM 589MM 608MM
REACH 384MM 386MM 390MM 395MM 404MM
WHEELBASE 1032MM 1032MM 1035MM 1038MM 1053MM
FRONT CENTRE 612MM 612MM 615MM 618MM 632MM
