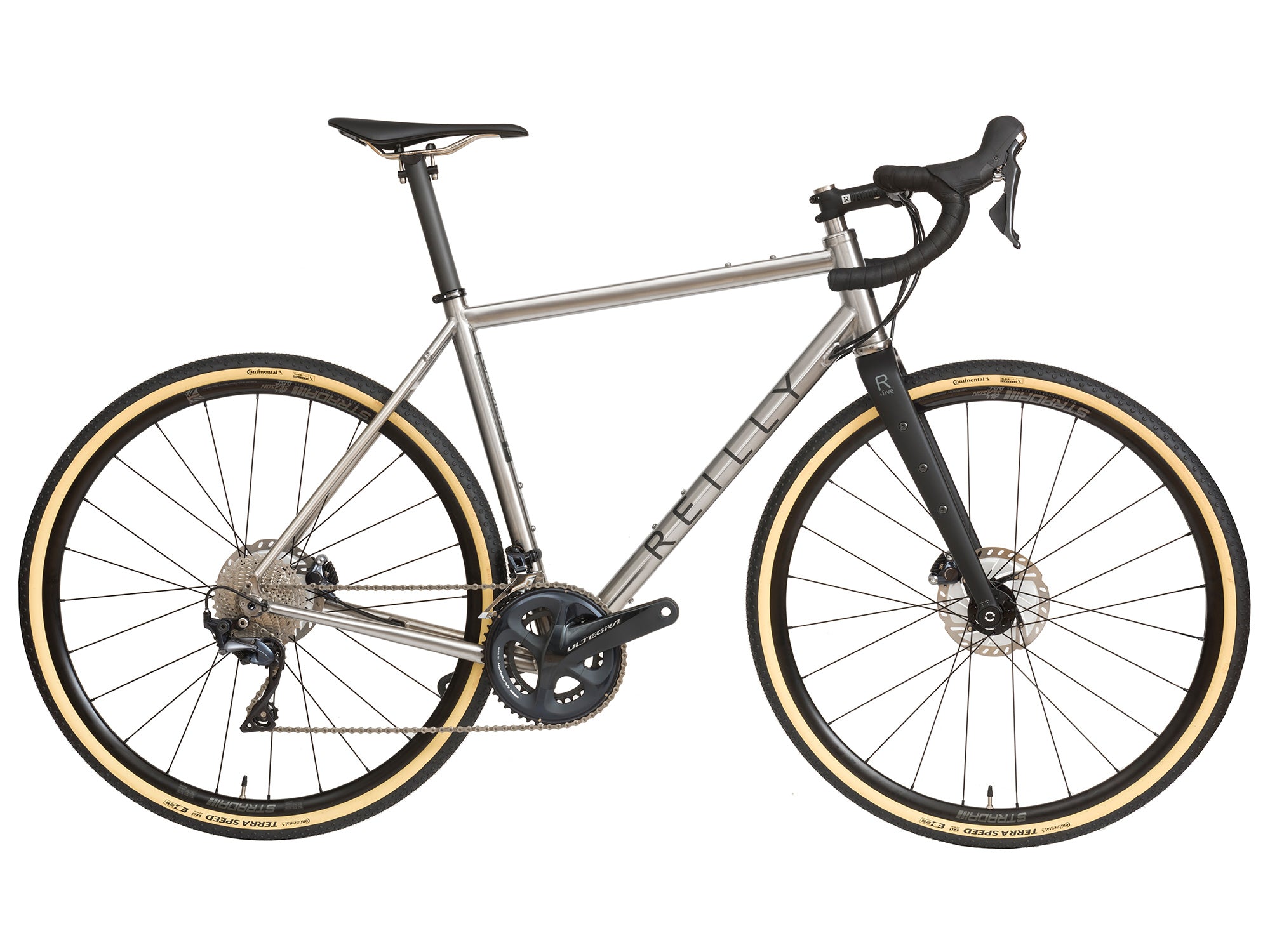

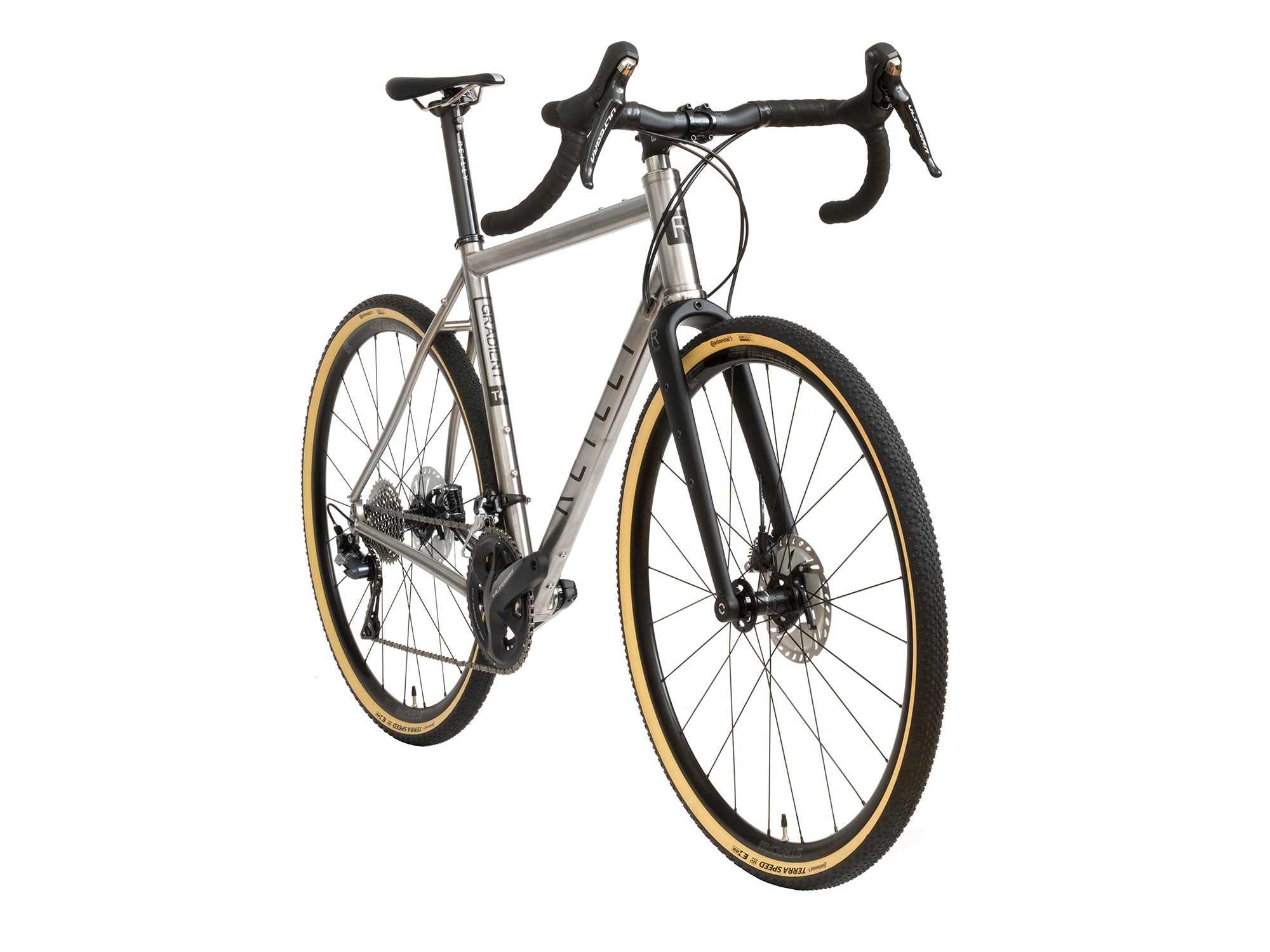

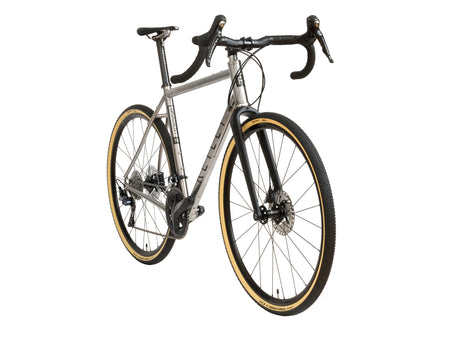

GRADIENT T47 // ADVENTURE BIKE
The REILLY GRADIENT T47 - an evolution of the species...
Drawn on the blueprint of Reilly's ultra successful 3AL-2.5V titanium Gradient. The GRADIENT T47 incorporates semi internal cable routing for cleaner lines and mud-free shifting. Based on Mark Reilly’s ground breaking frame geometry the GRADIENT T47 is hailed for comfort, speed and beauty.
The Gradient T47 is ready for your next big adventure. If it’s a bike packing trip, extra gravel trails or your daily commute this beauty can handle it all with ease.
T47 Frame Features

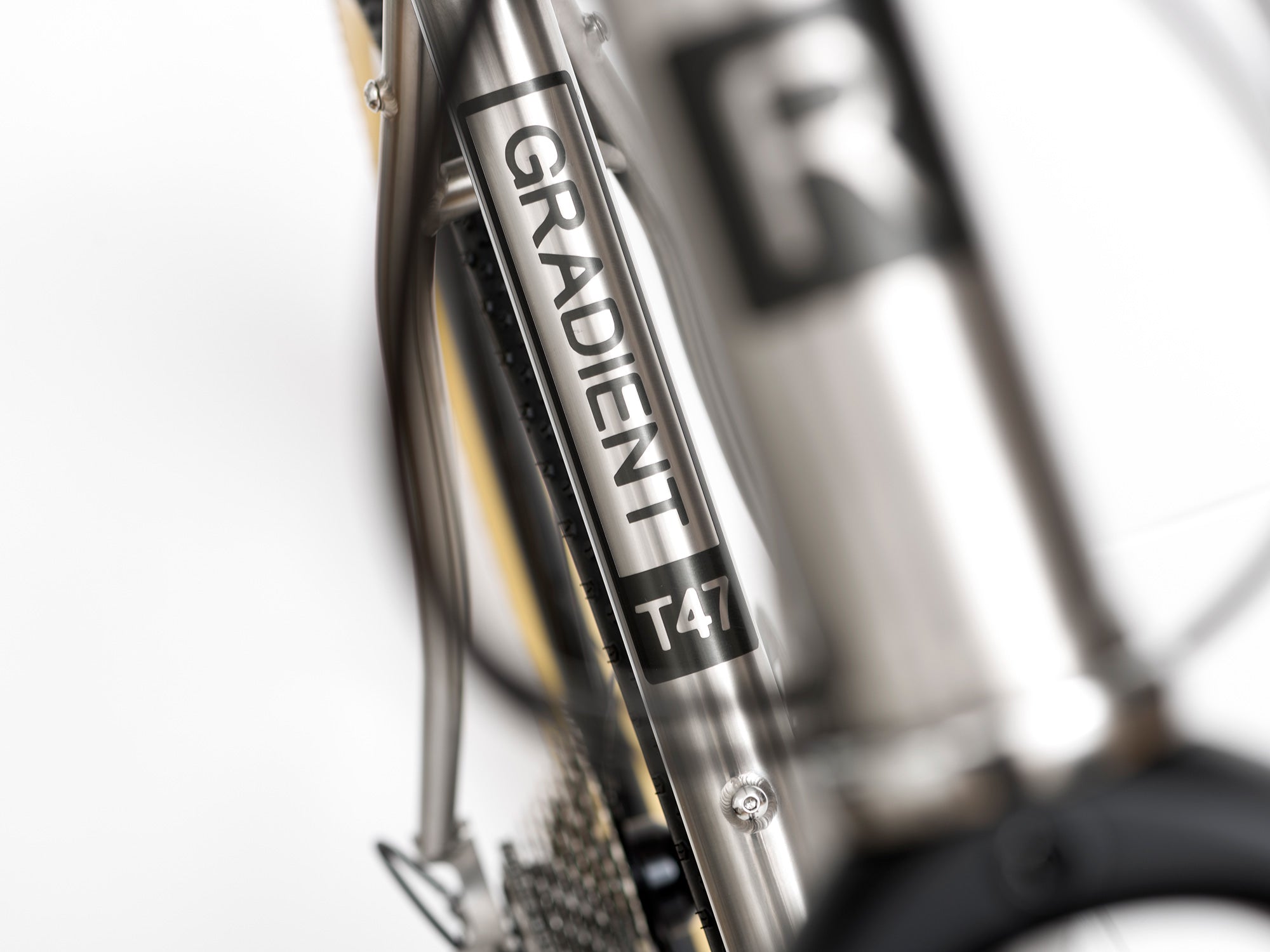

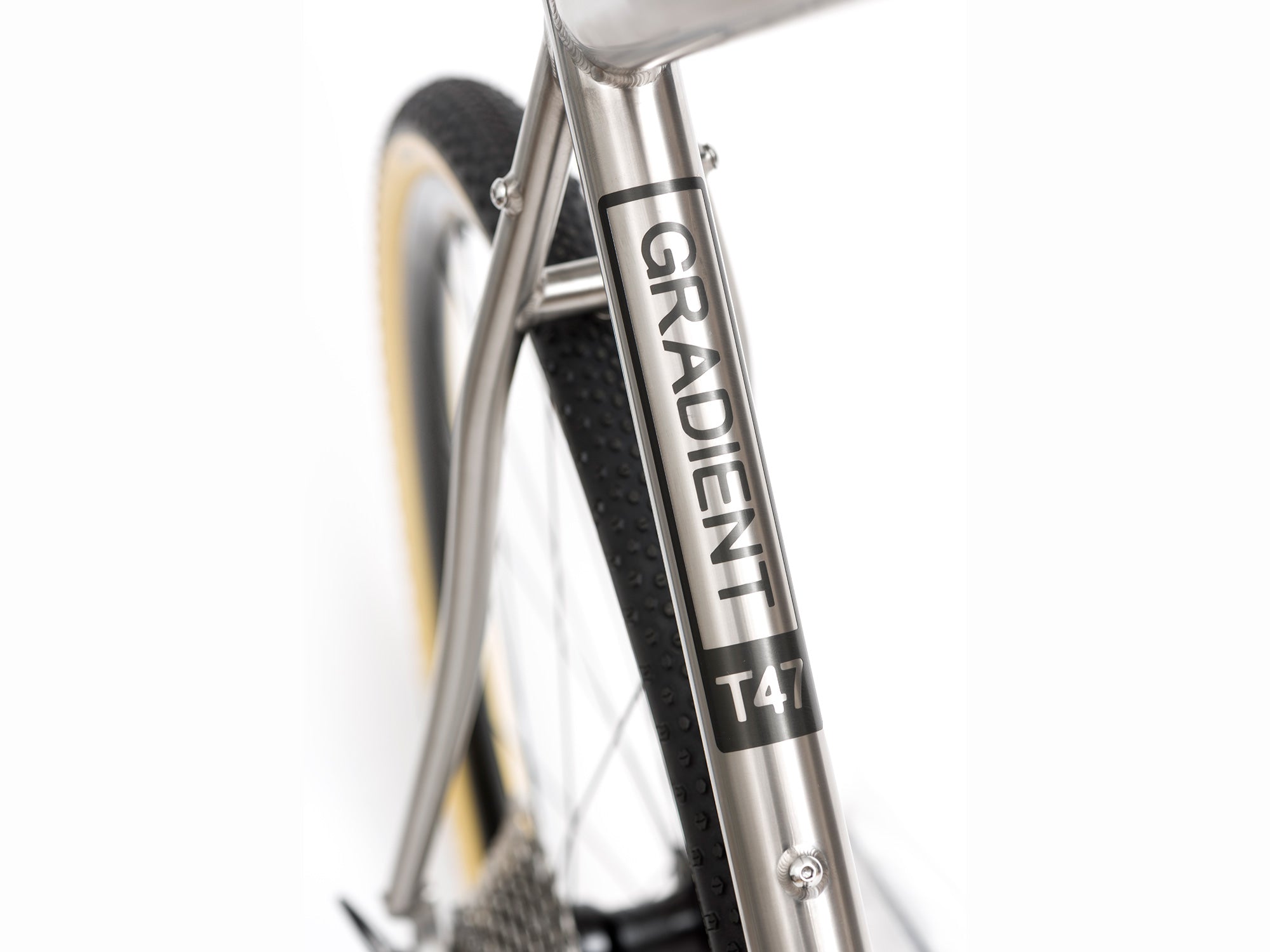

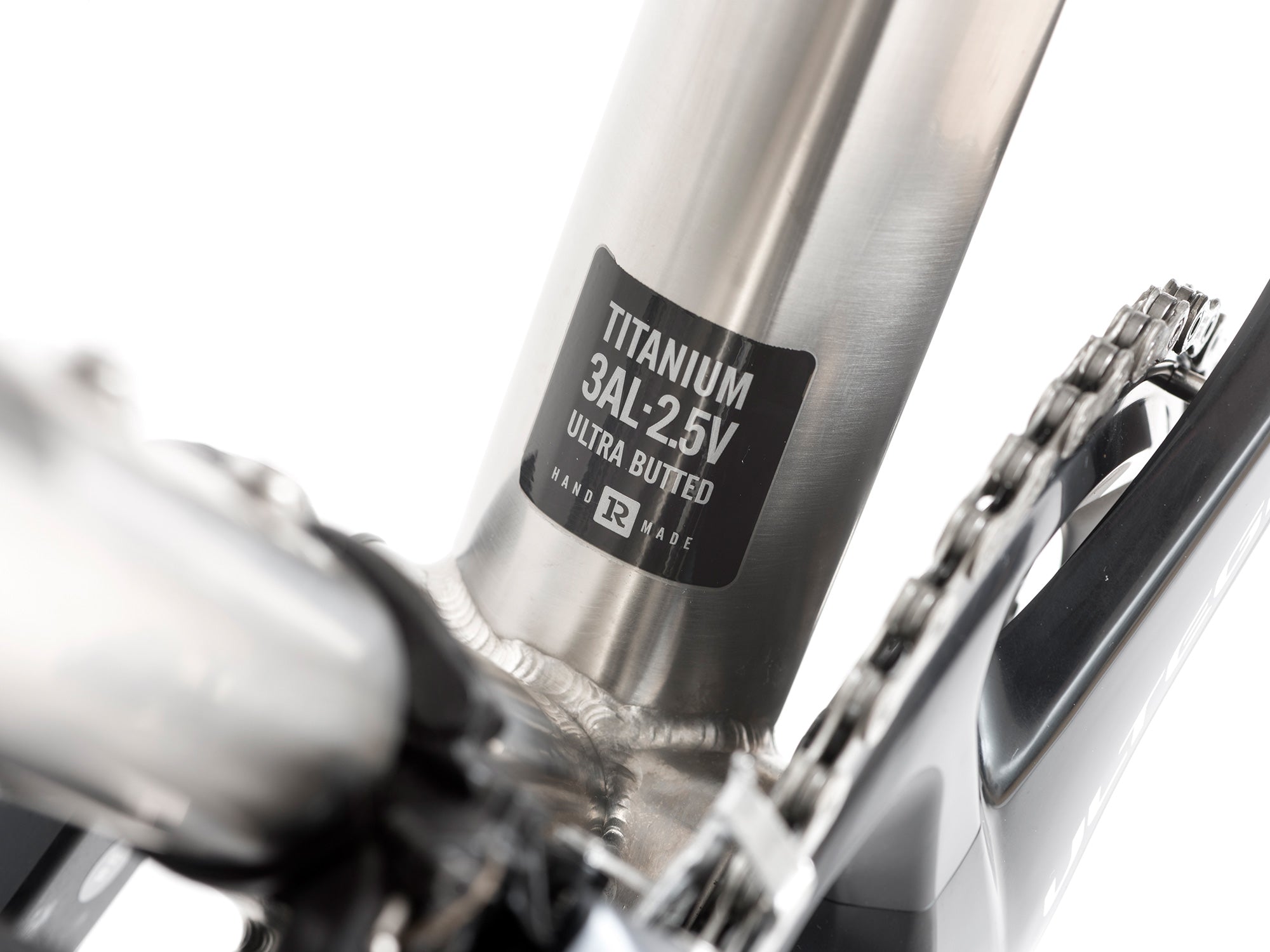

• 3AL-2.5V titanium frame

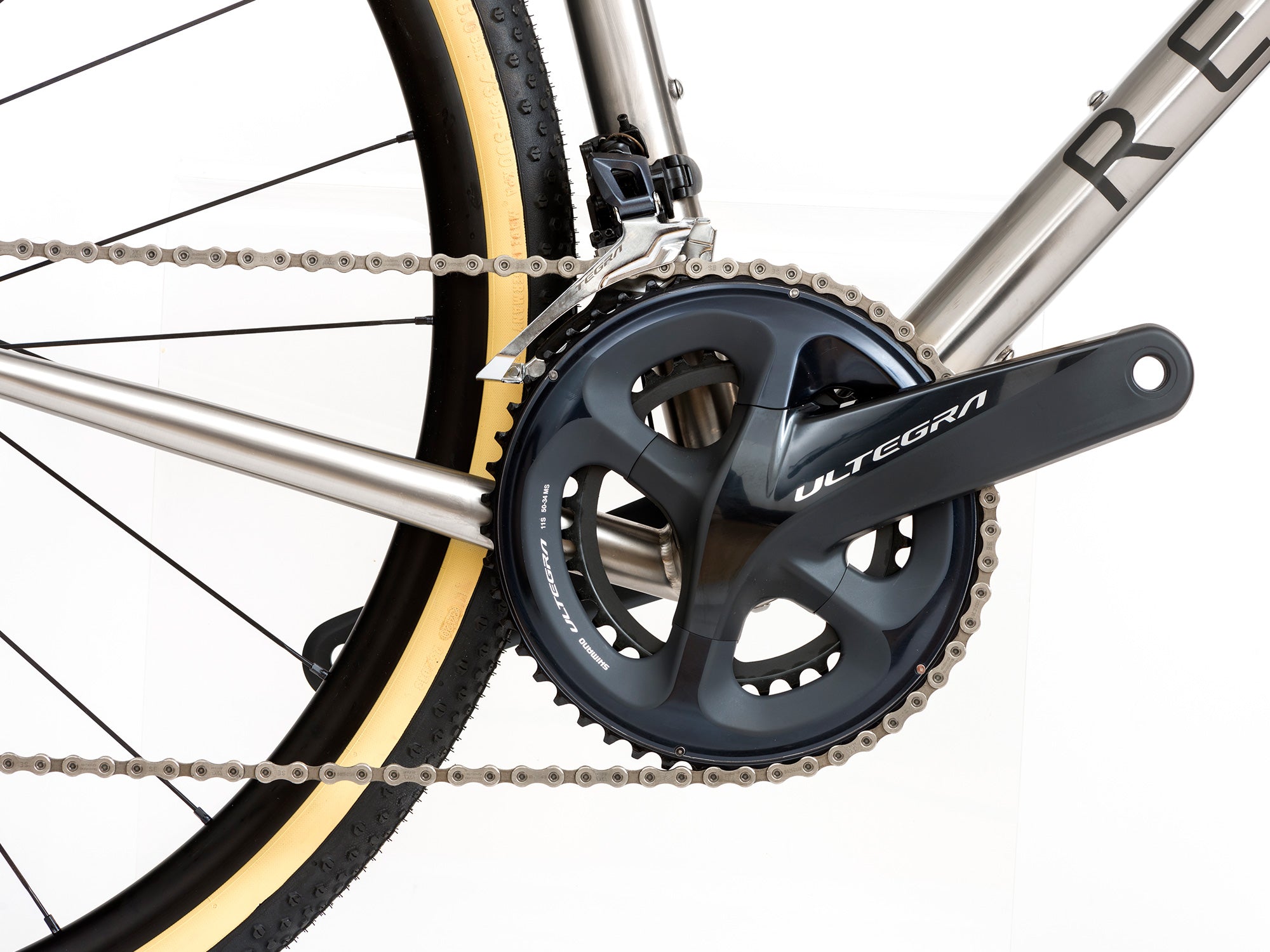

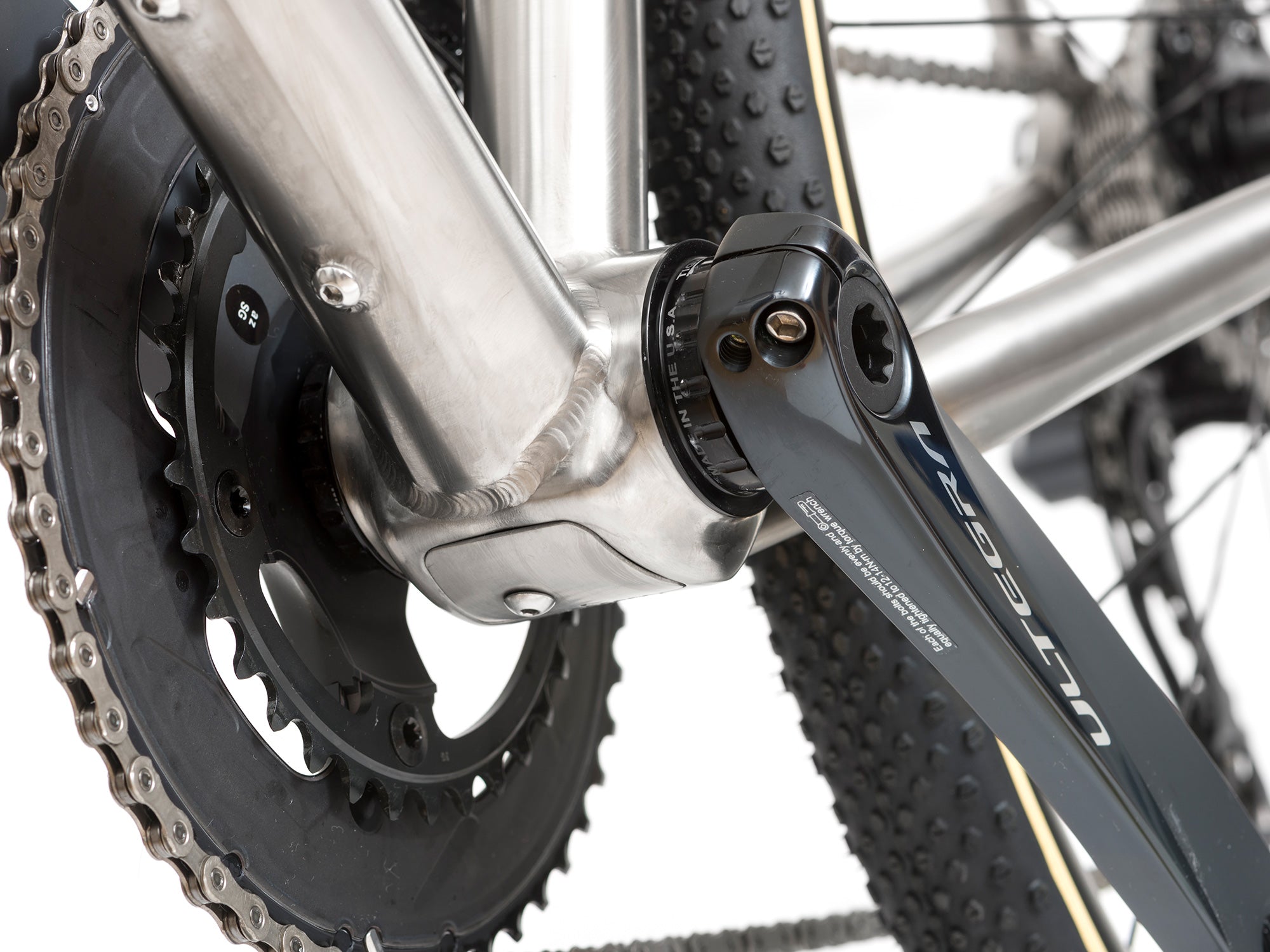

• Threaded cast T47 bracket in 6AL-4V titanium

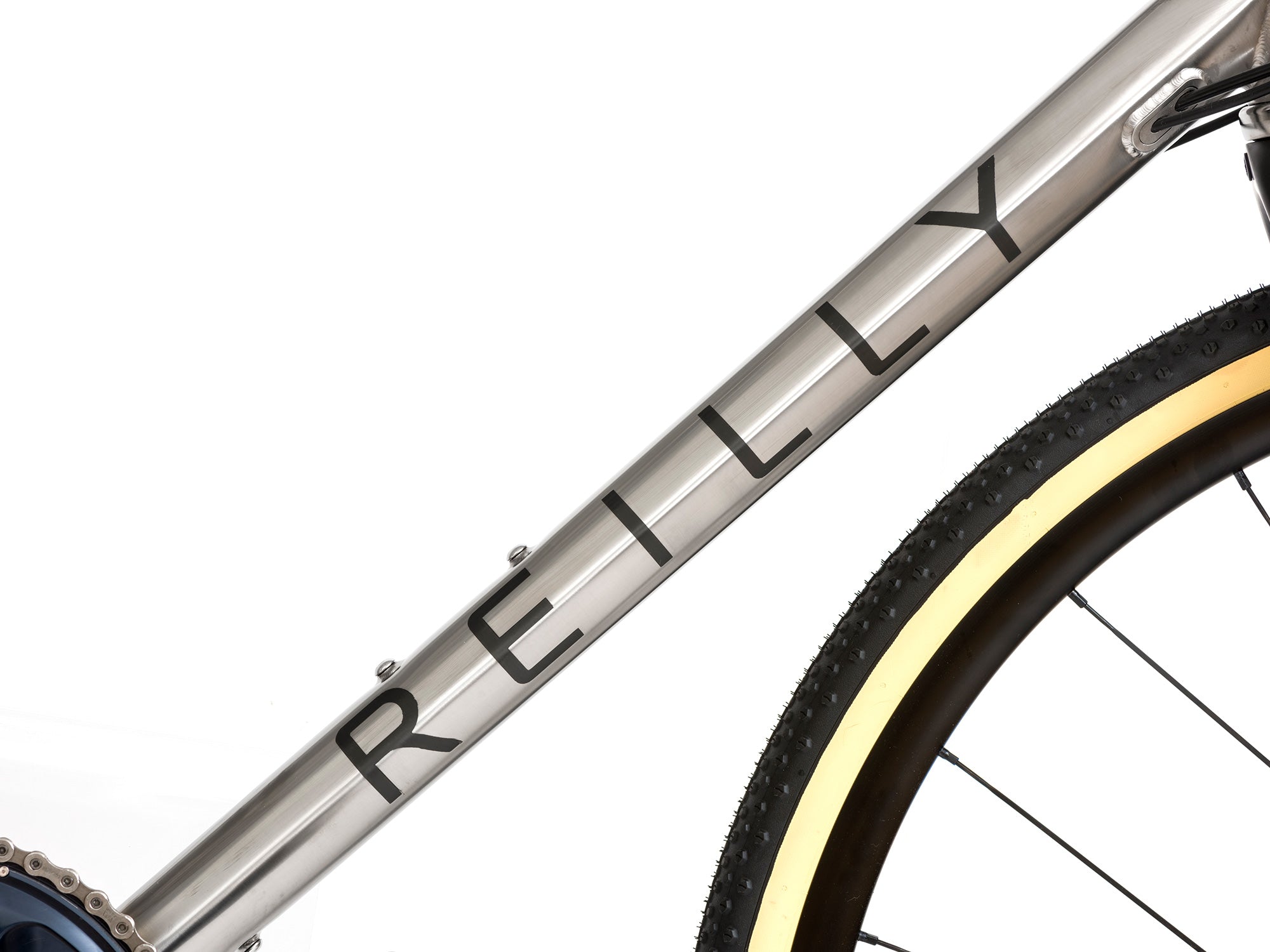

• Revised hydroformed down tube and top tube profiles

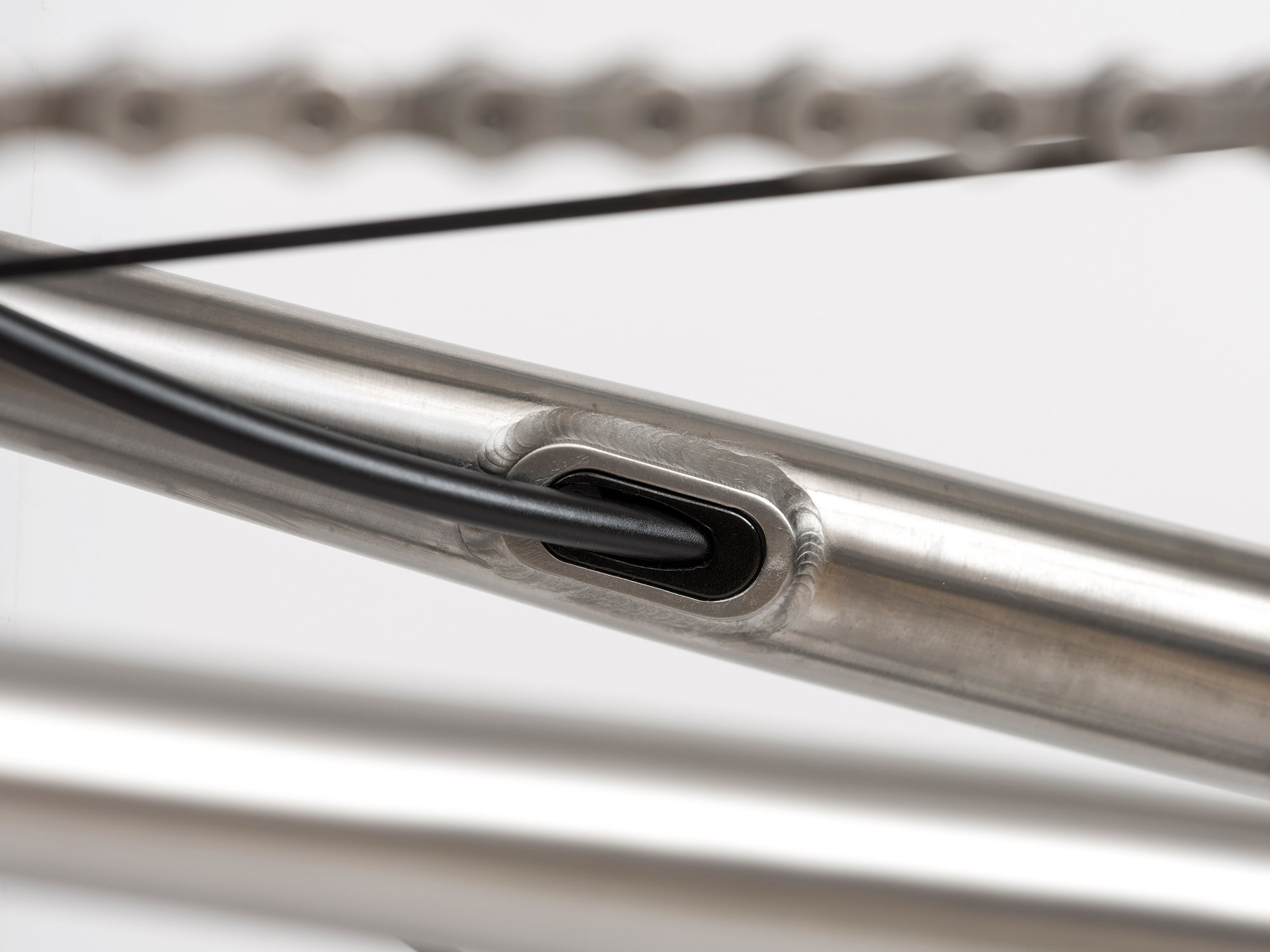

• Internal downtube / bottom bracket cable routing, with BB access port

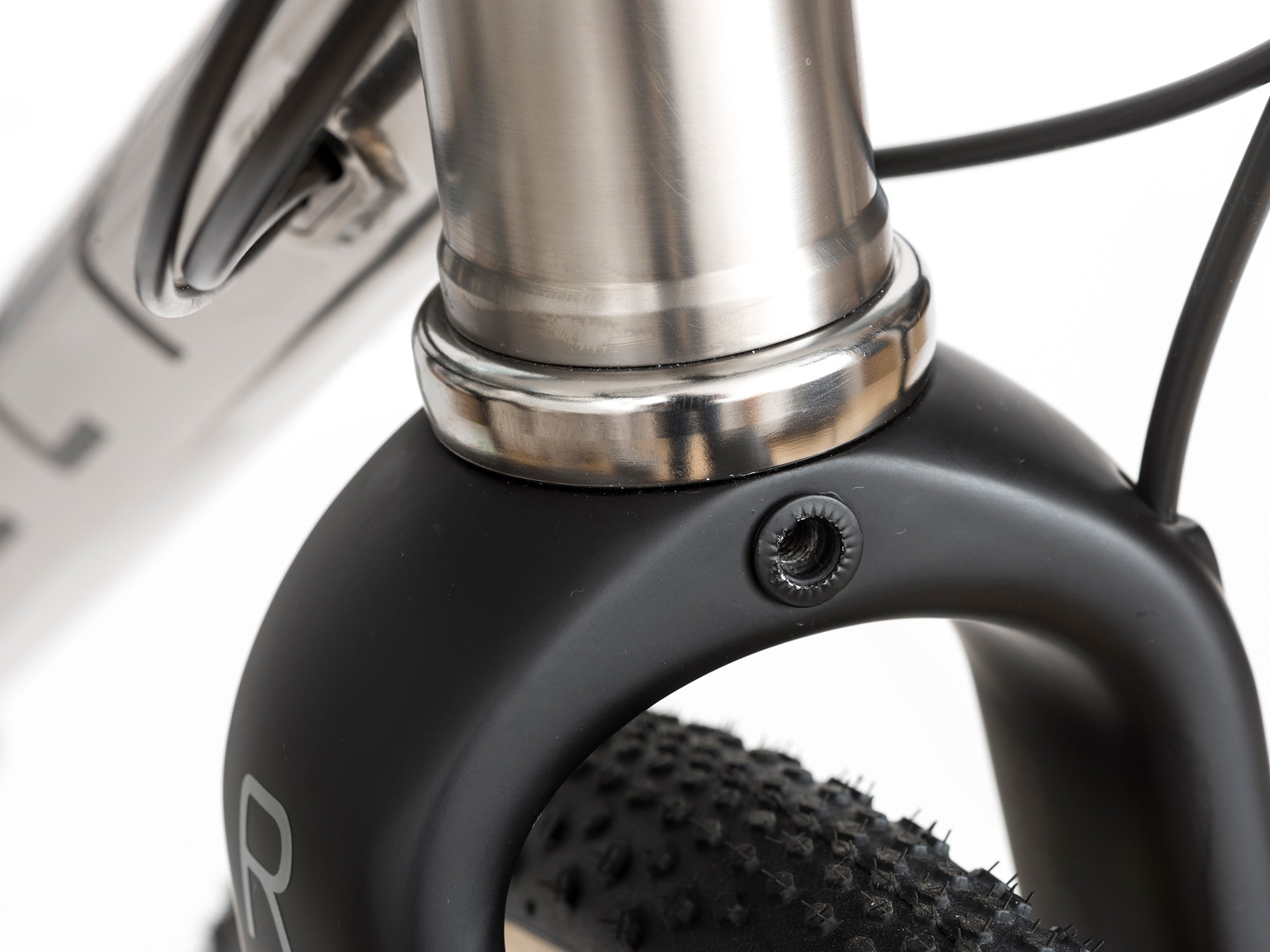

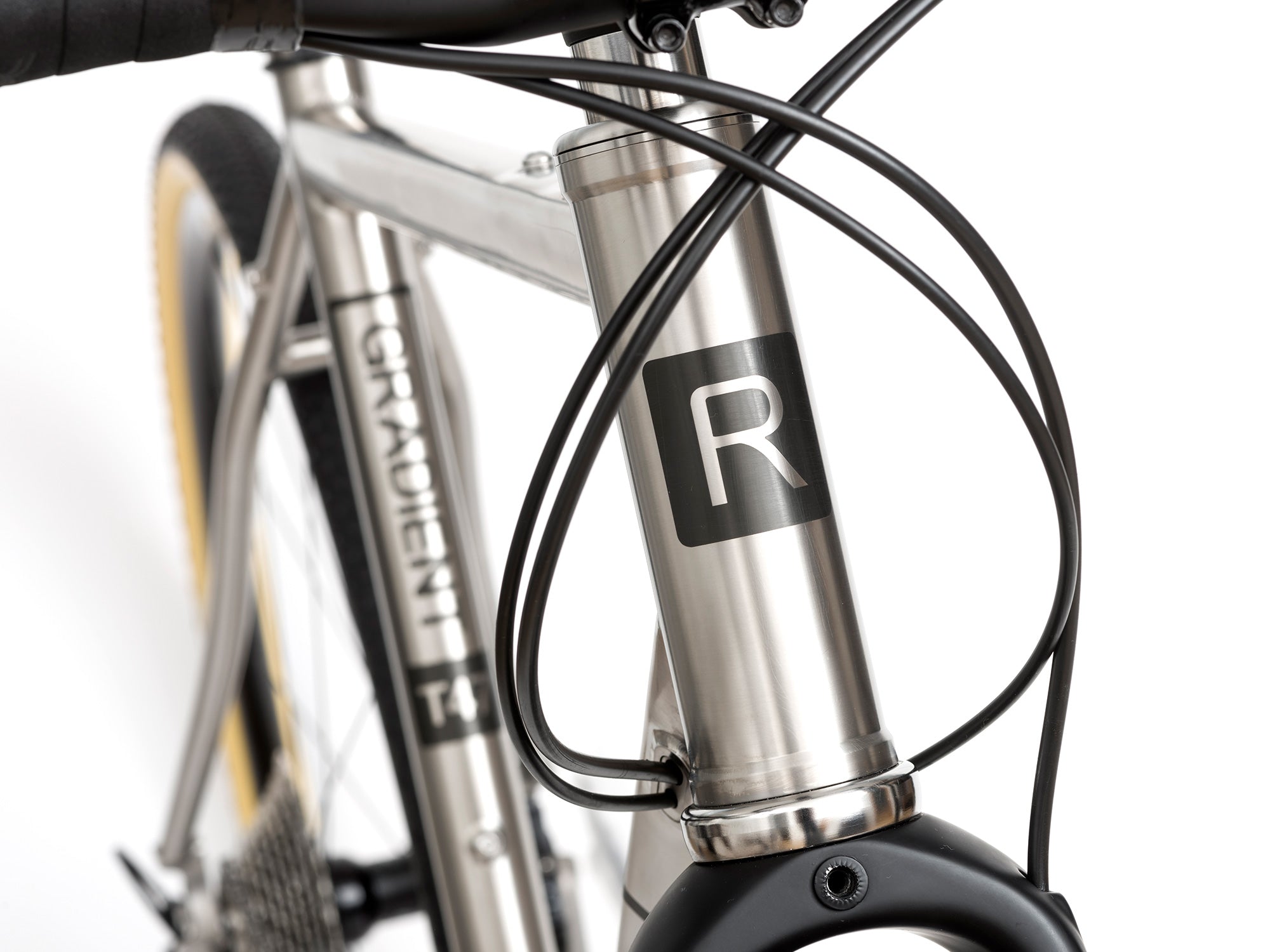

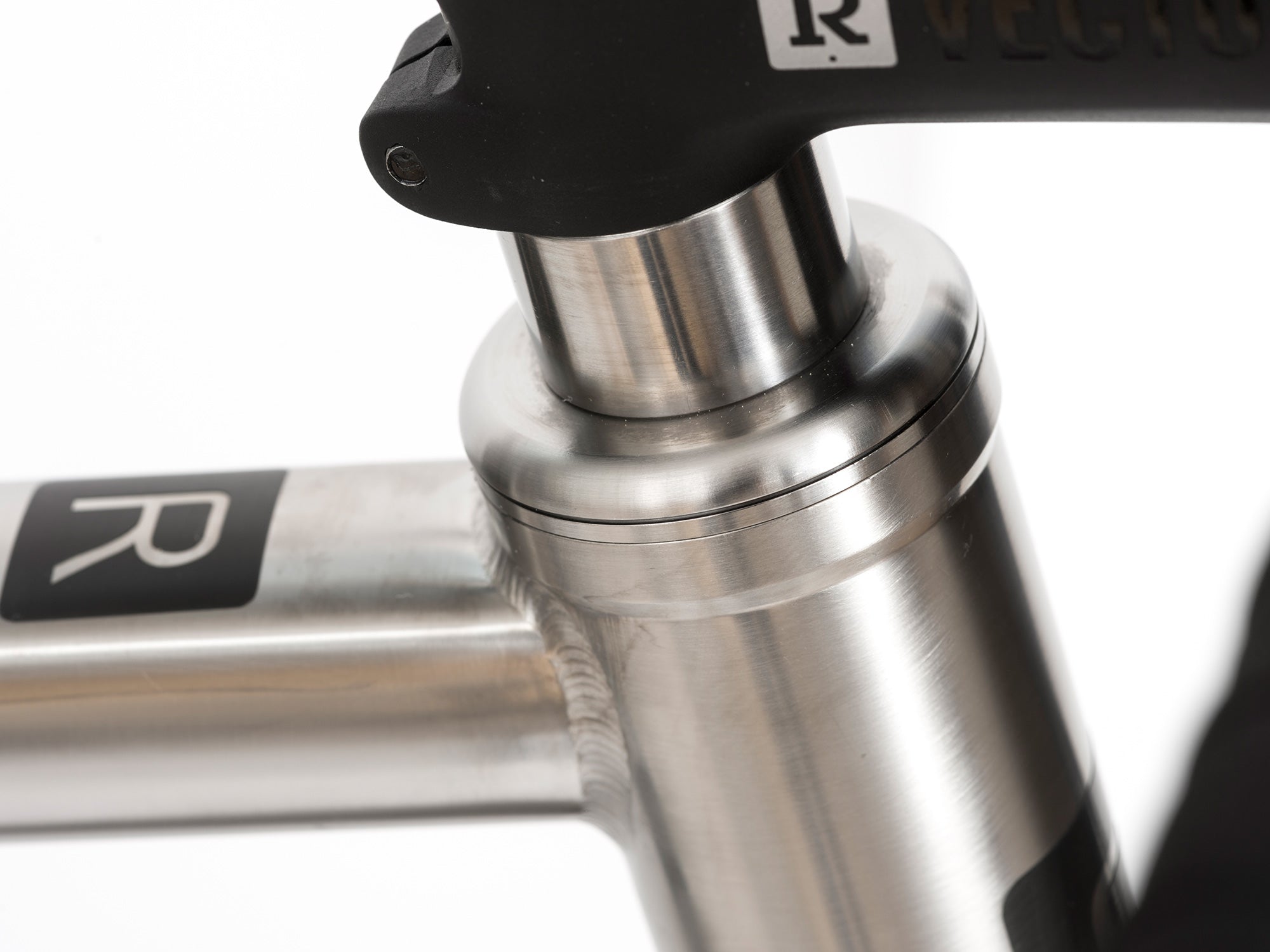

• Reilly titanium headset for 44mm head tubes and 1 1/8" to 1 1/2" tapered steerers

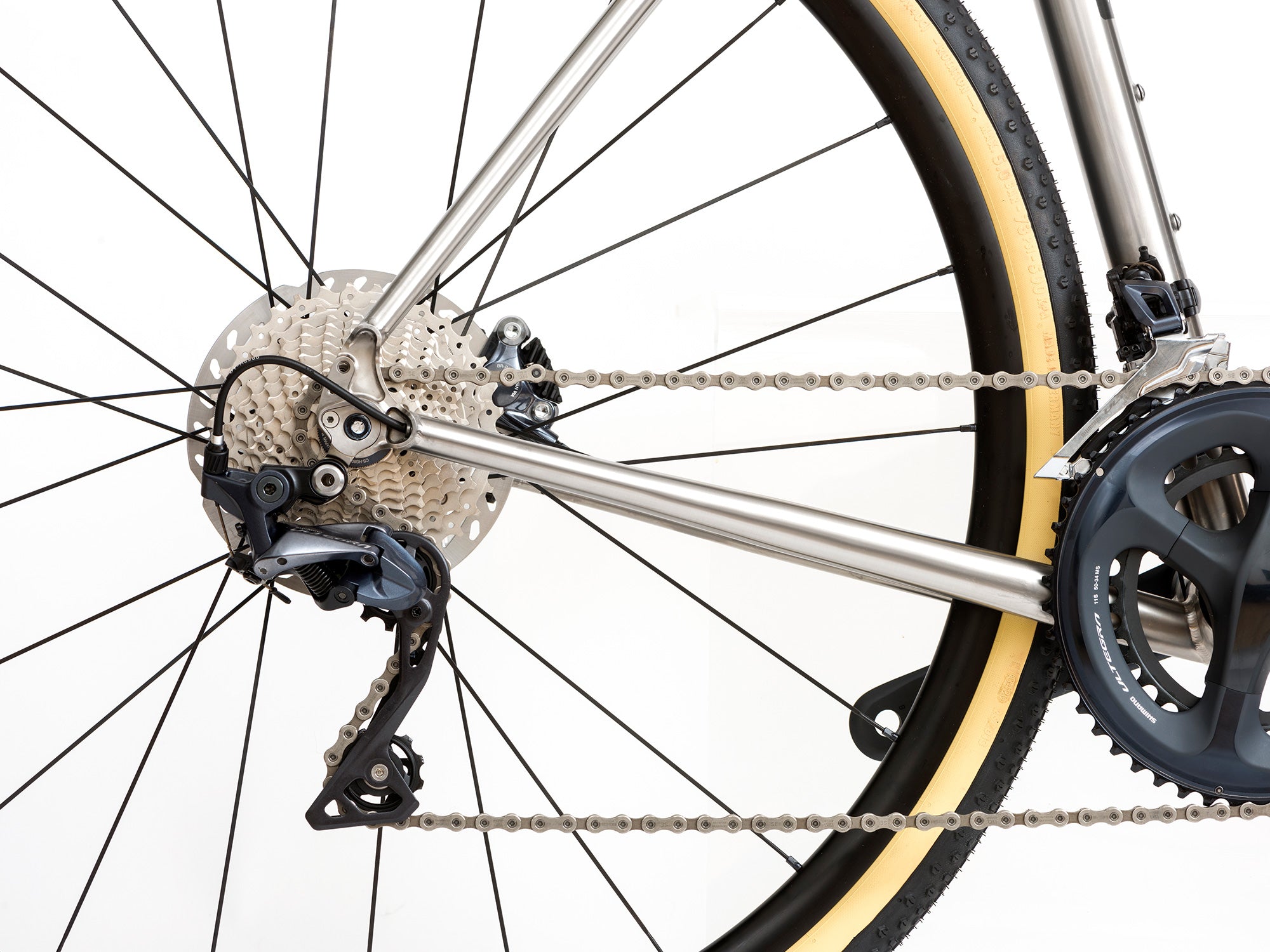

• Reilly alloy rear mech hanger

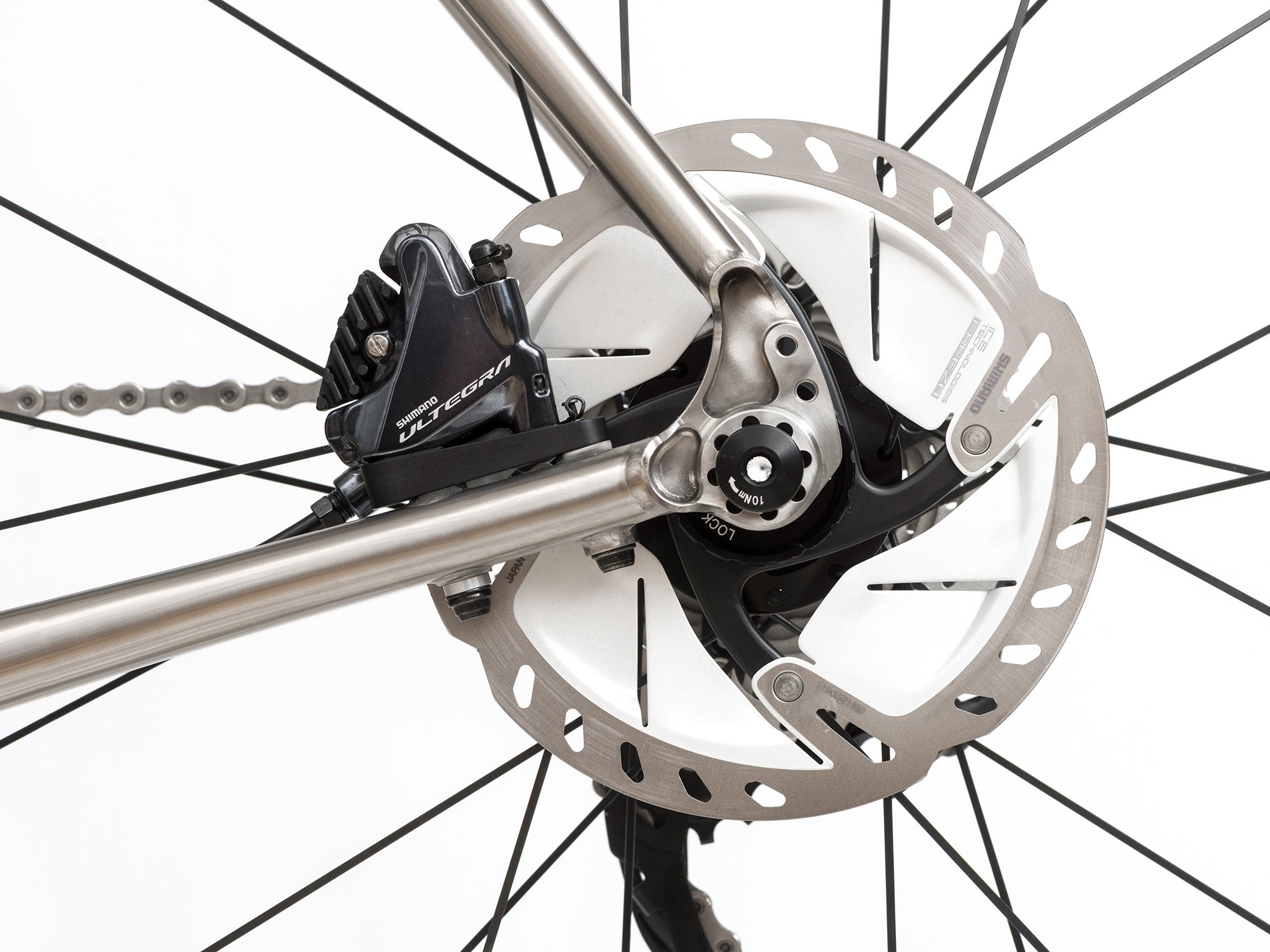

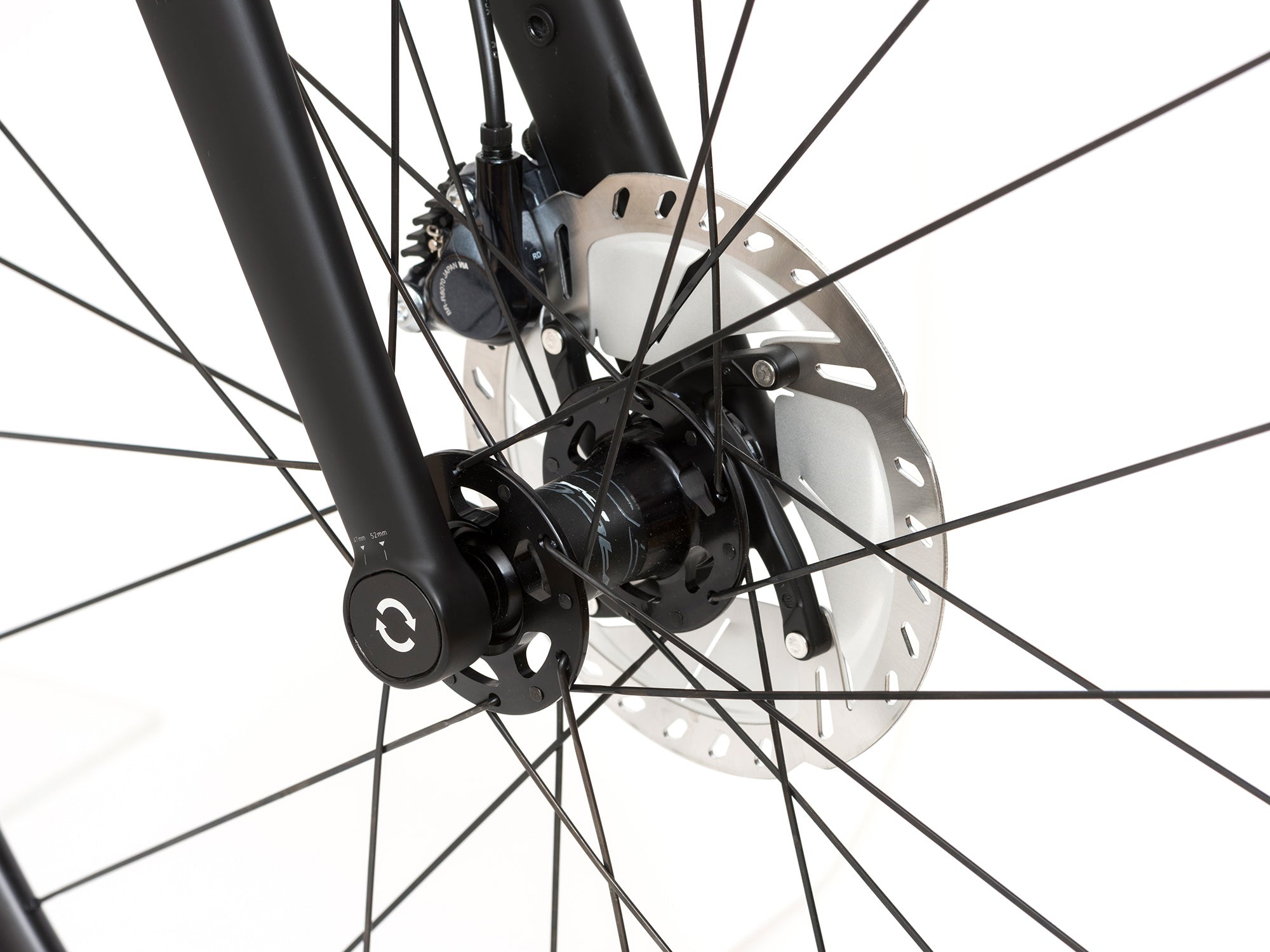

• Flat mount disc brakes, with ultra secure 42mm x 12mm thru axle

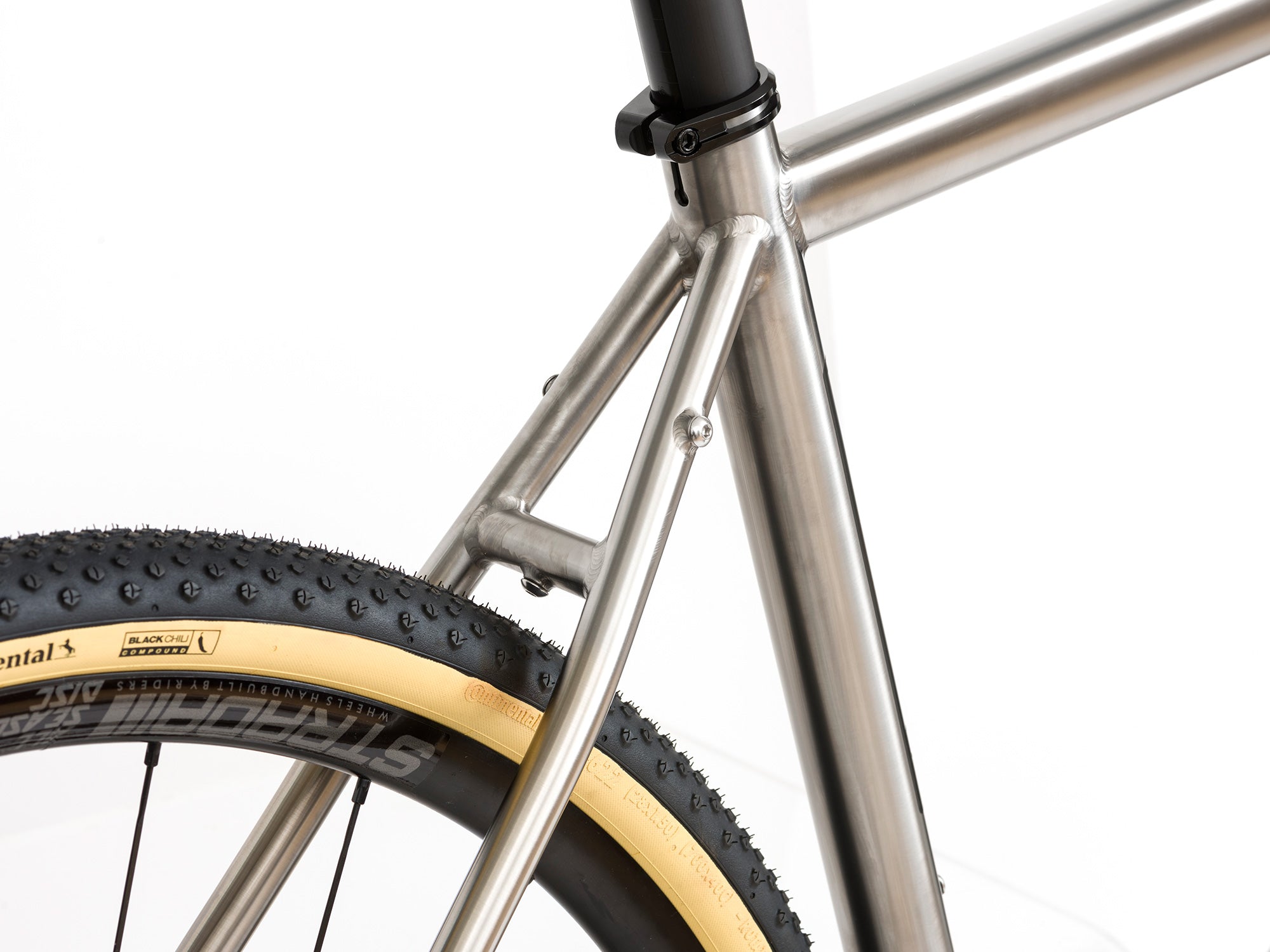

• Seat stay, pannier mounts and mudguard fixings

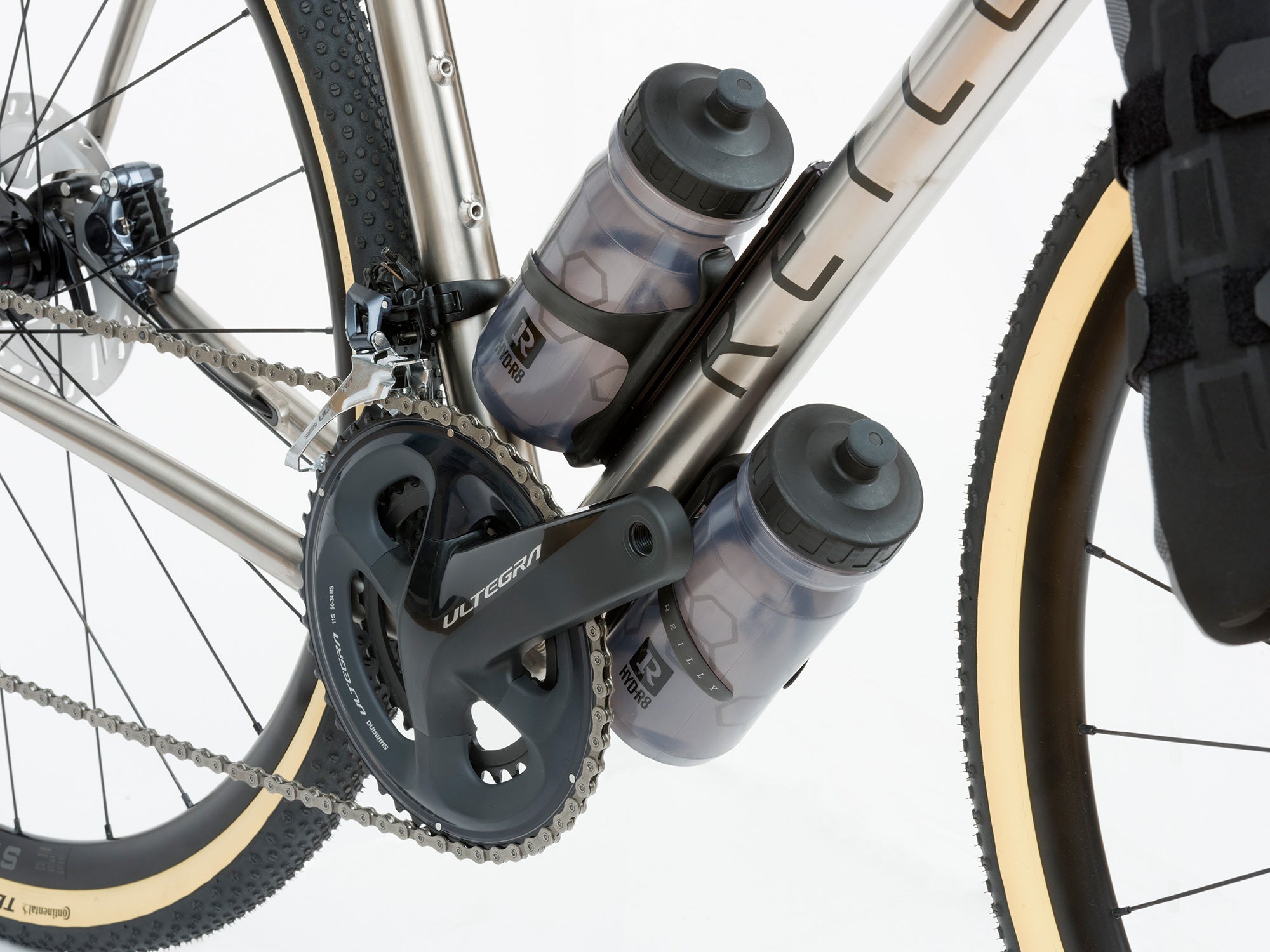

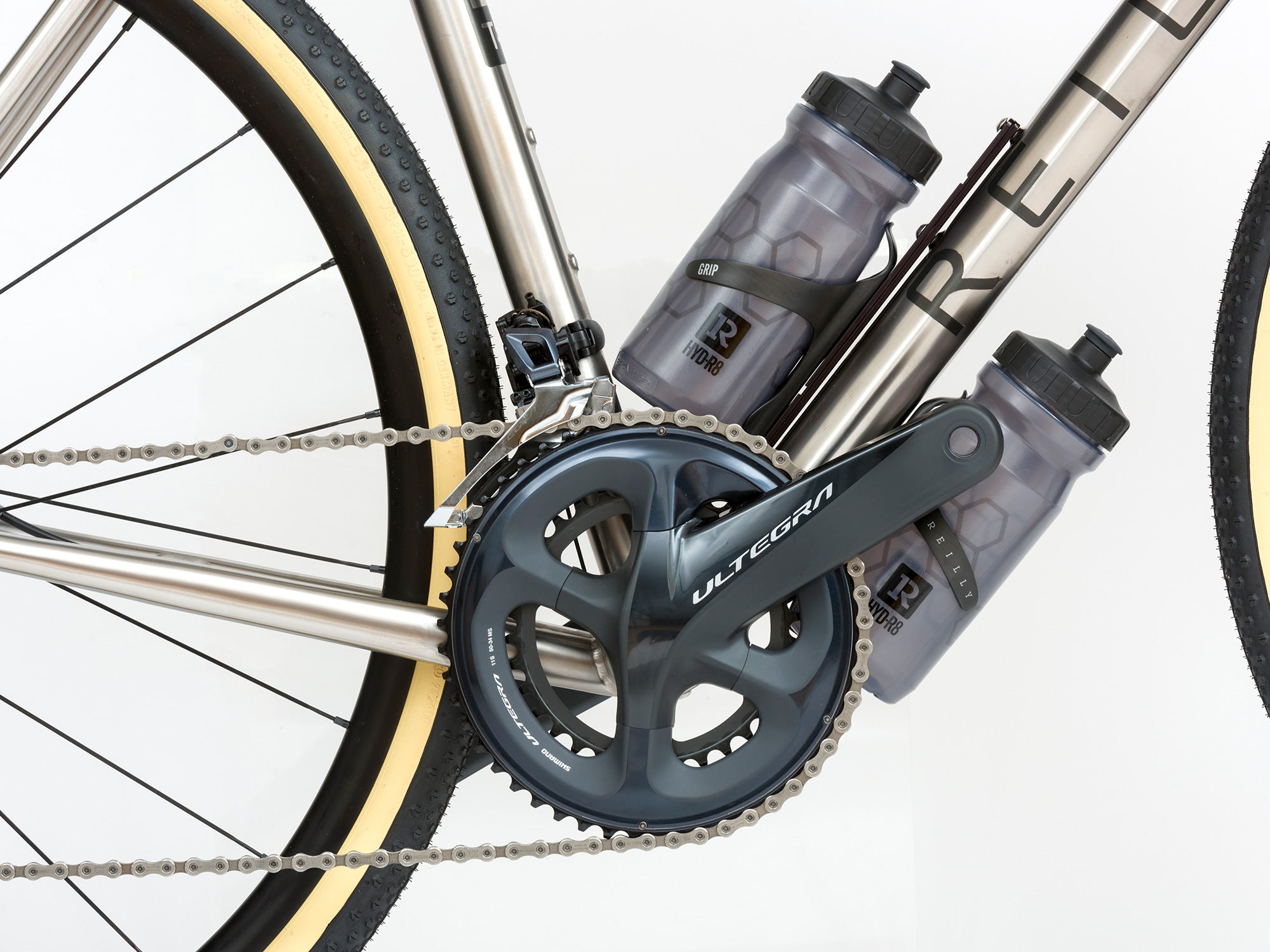

• 3 sets of bottle cage mounts with one on the underside of the down tube

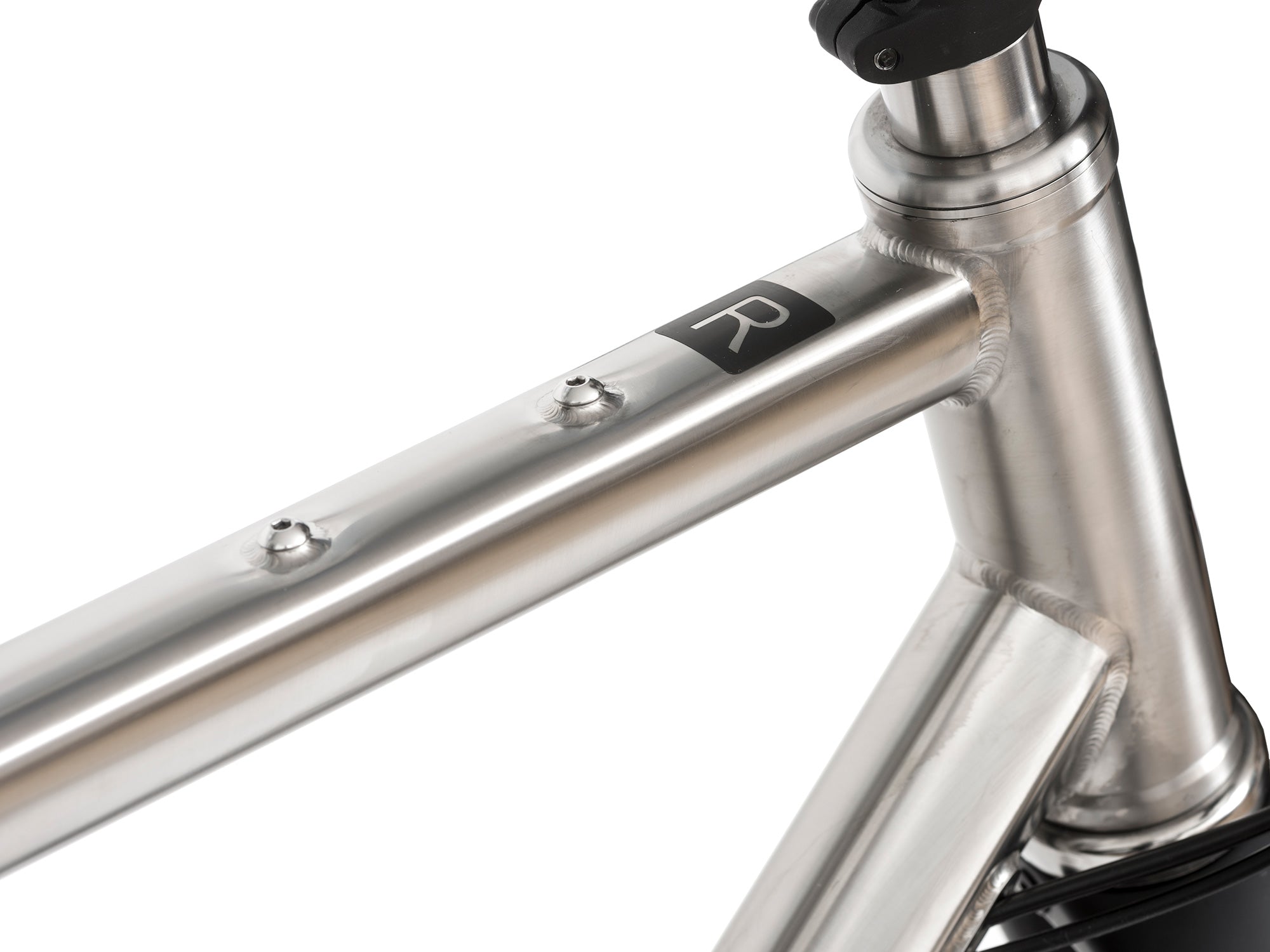

• Top tube boss mounts for top tube pack
• 31.6mm seat post size

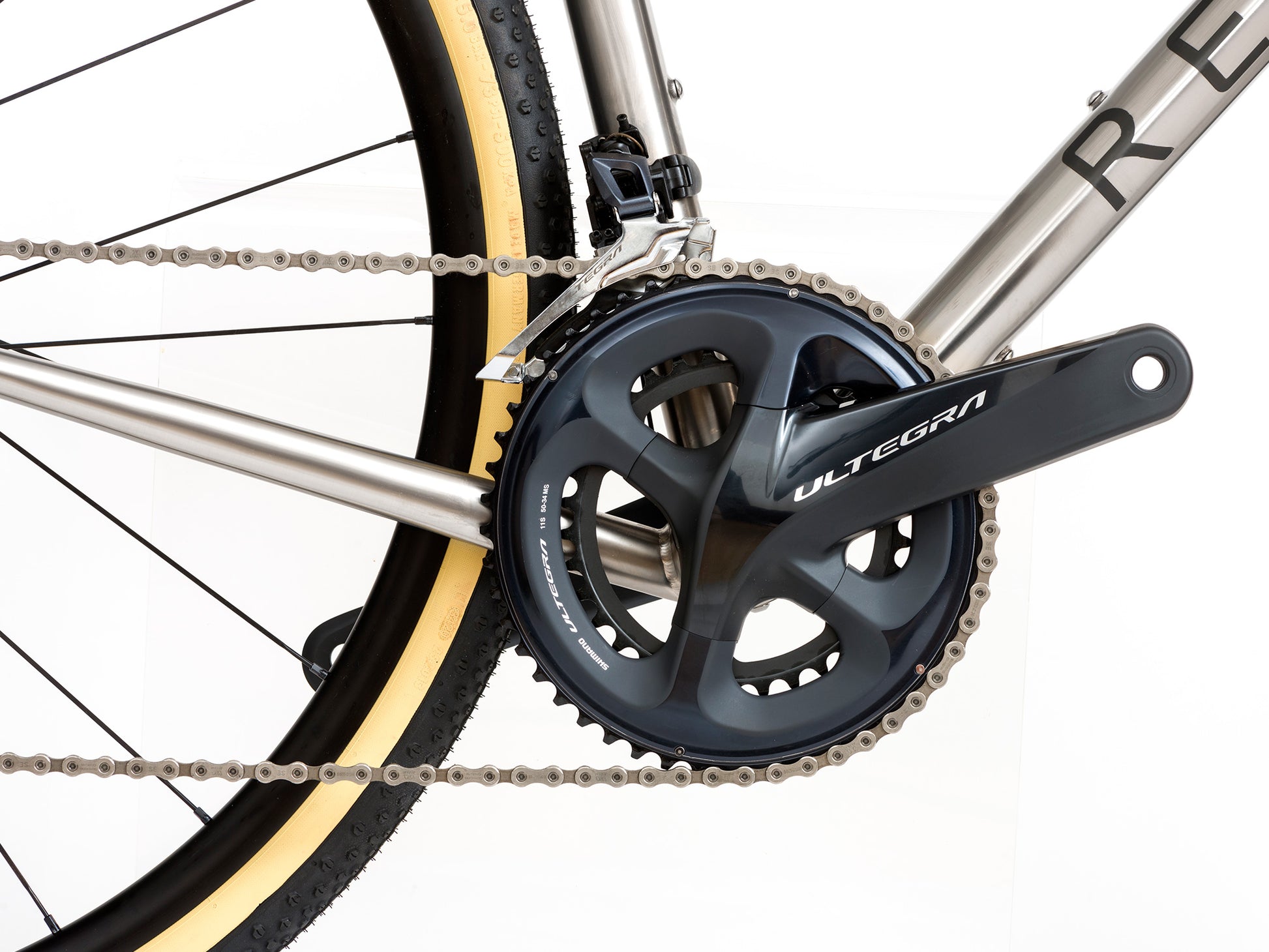

• 34.9mm band on front derailleur clamp
• Lifetime guarantee for original owner. T&C’s apply

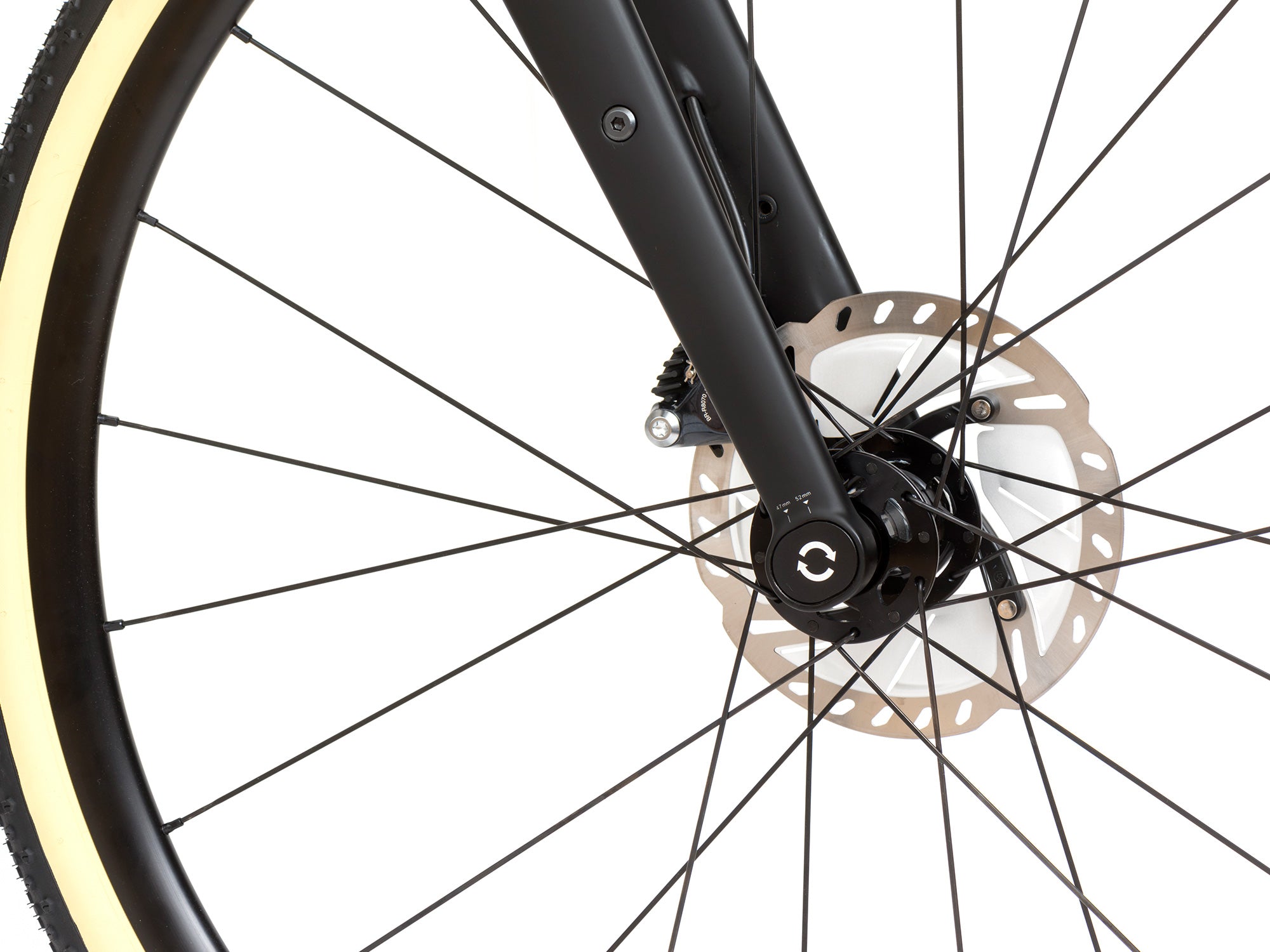

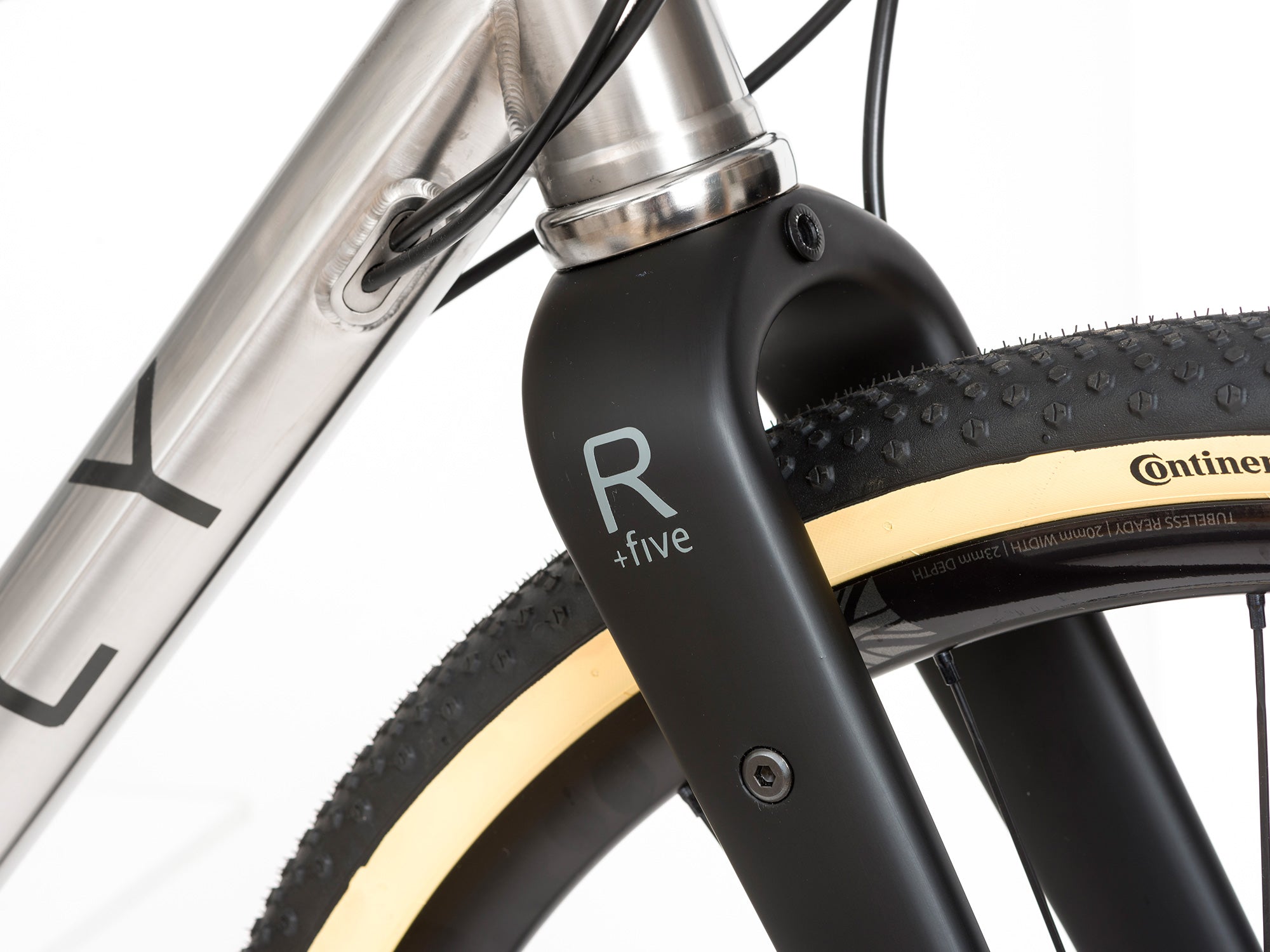

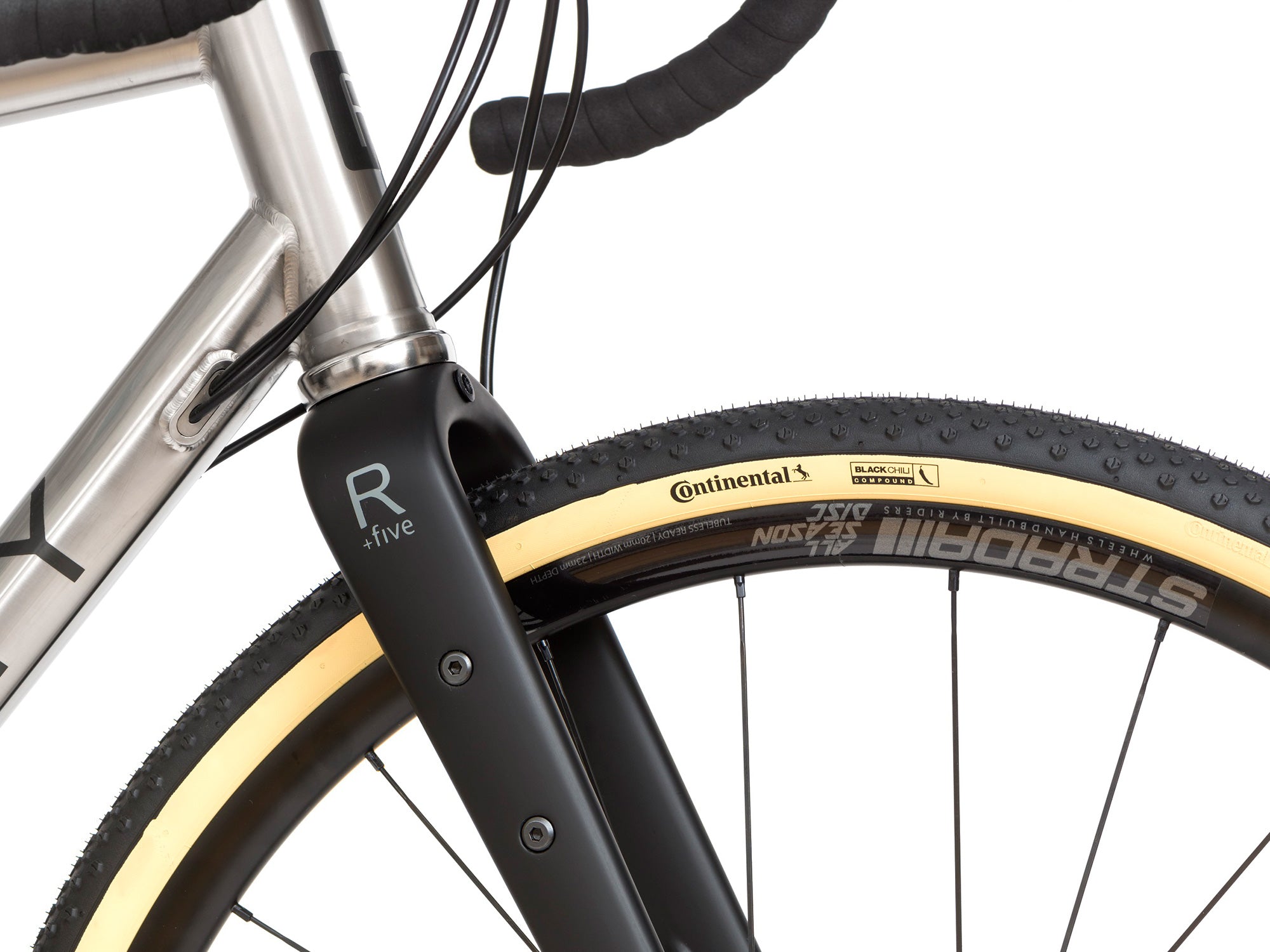

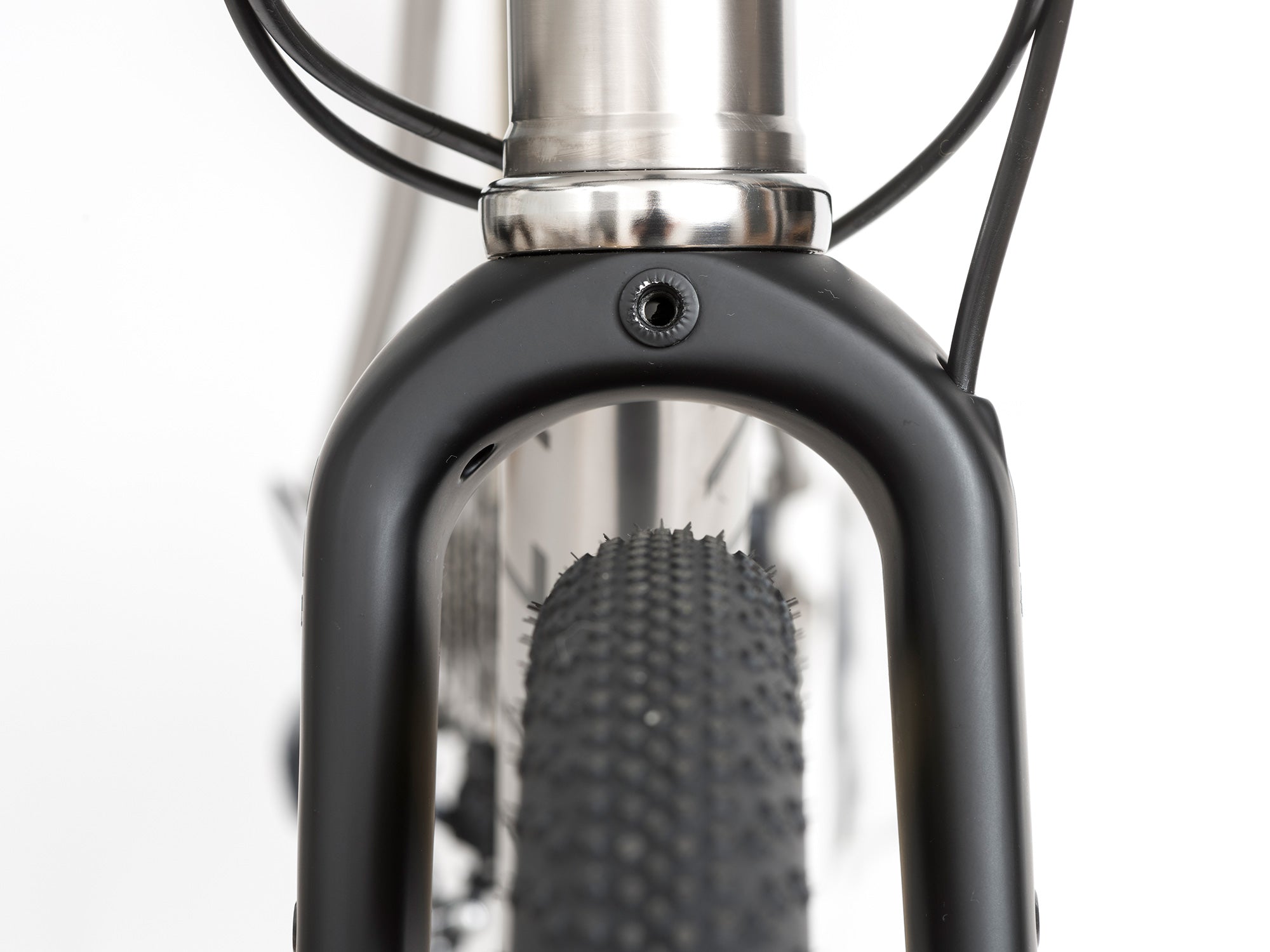

Reilly Carbon Adventure Fork
• Adjustable rake (47-52mm)
• Wide clearance for 700c x 55mm or 650b x 2.4" tyres
• 3 recessed cage mounts
• Mudguard / light / pannier mounts
• Internal disc brake cable routing
• Internal cable routing for dynamo hub / light / USB charging port
Additional Features

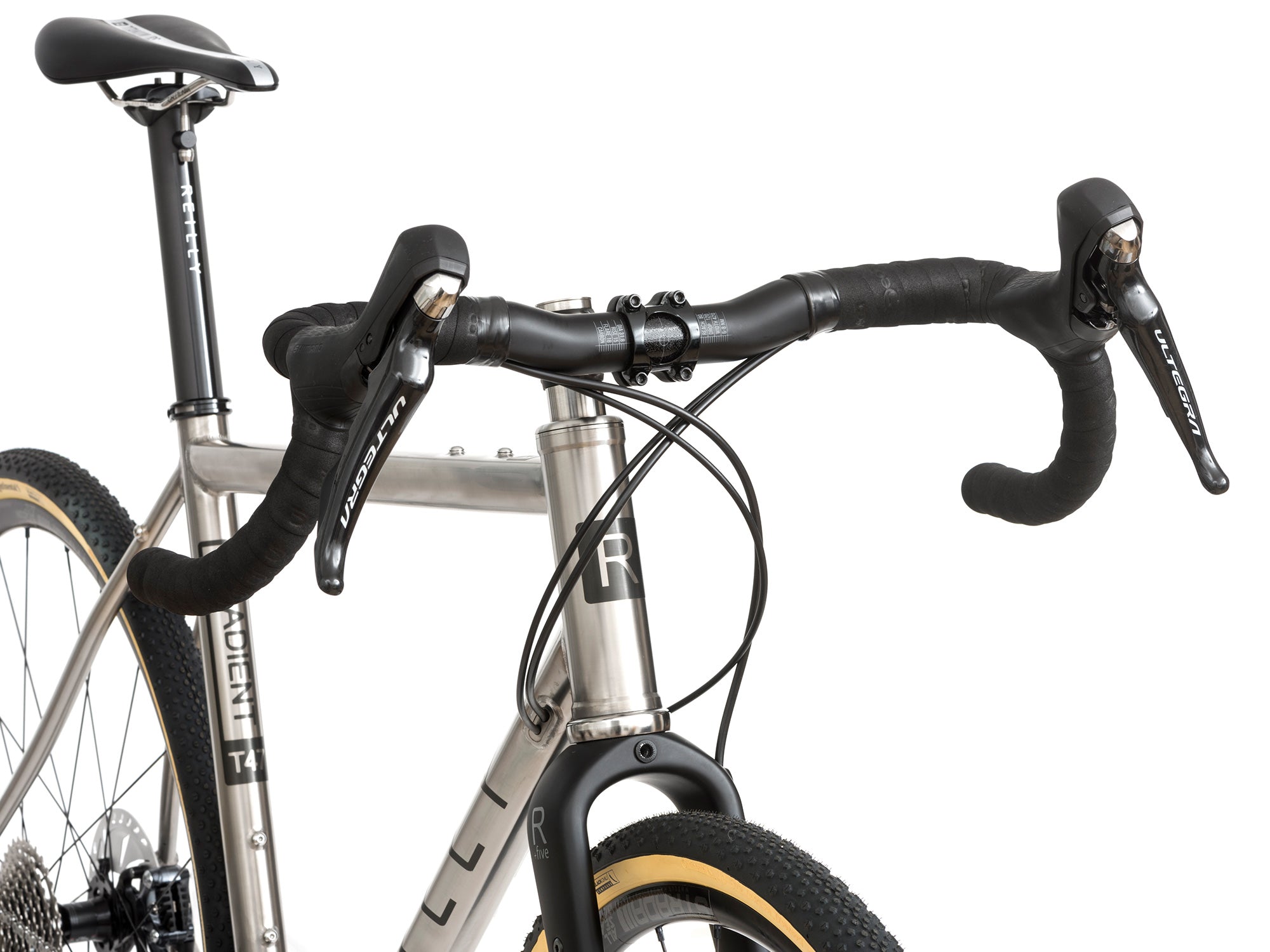

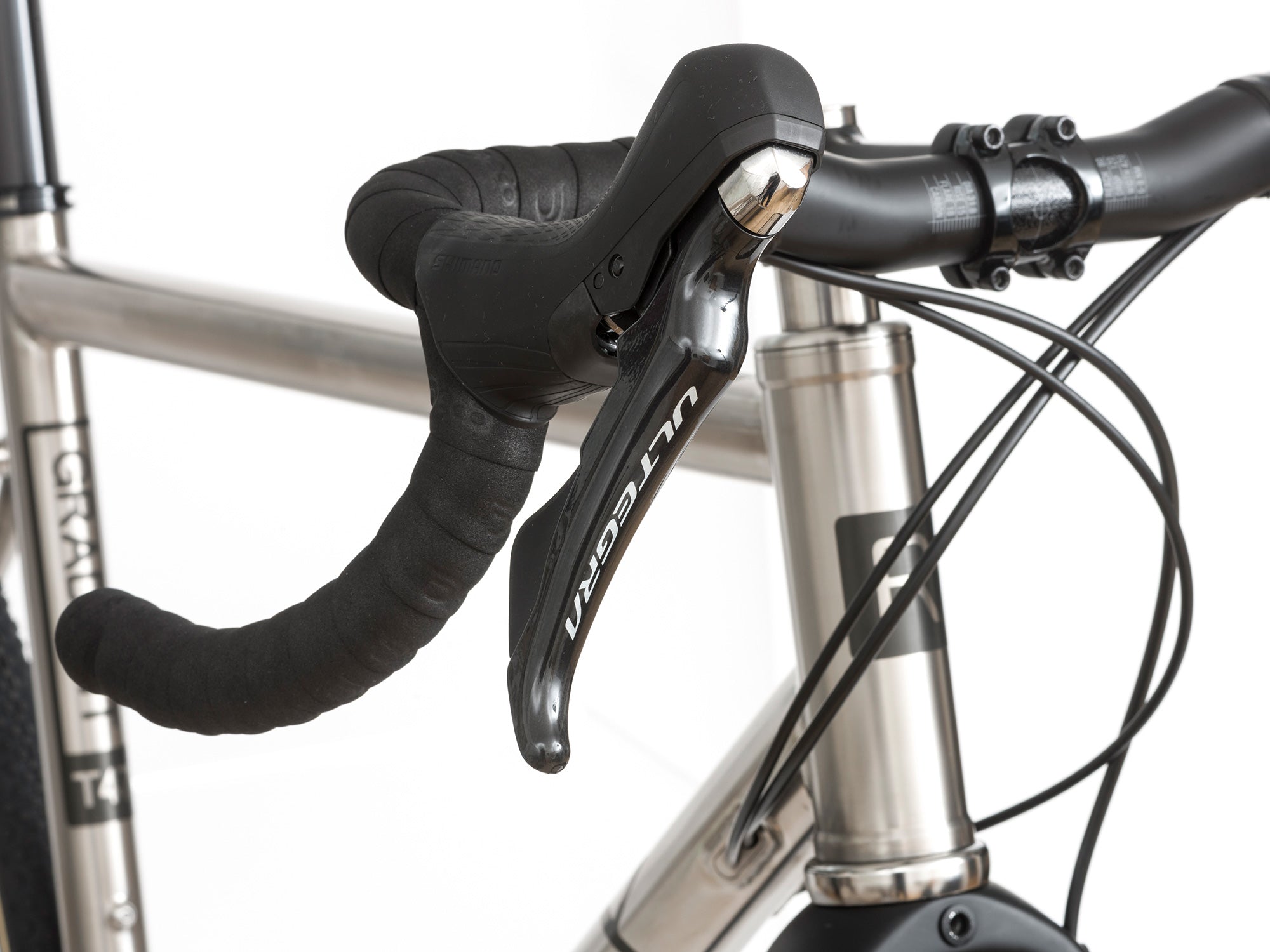

• T700 Carbon Gravel handlebars with 18 degree flare

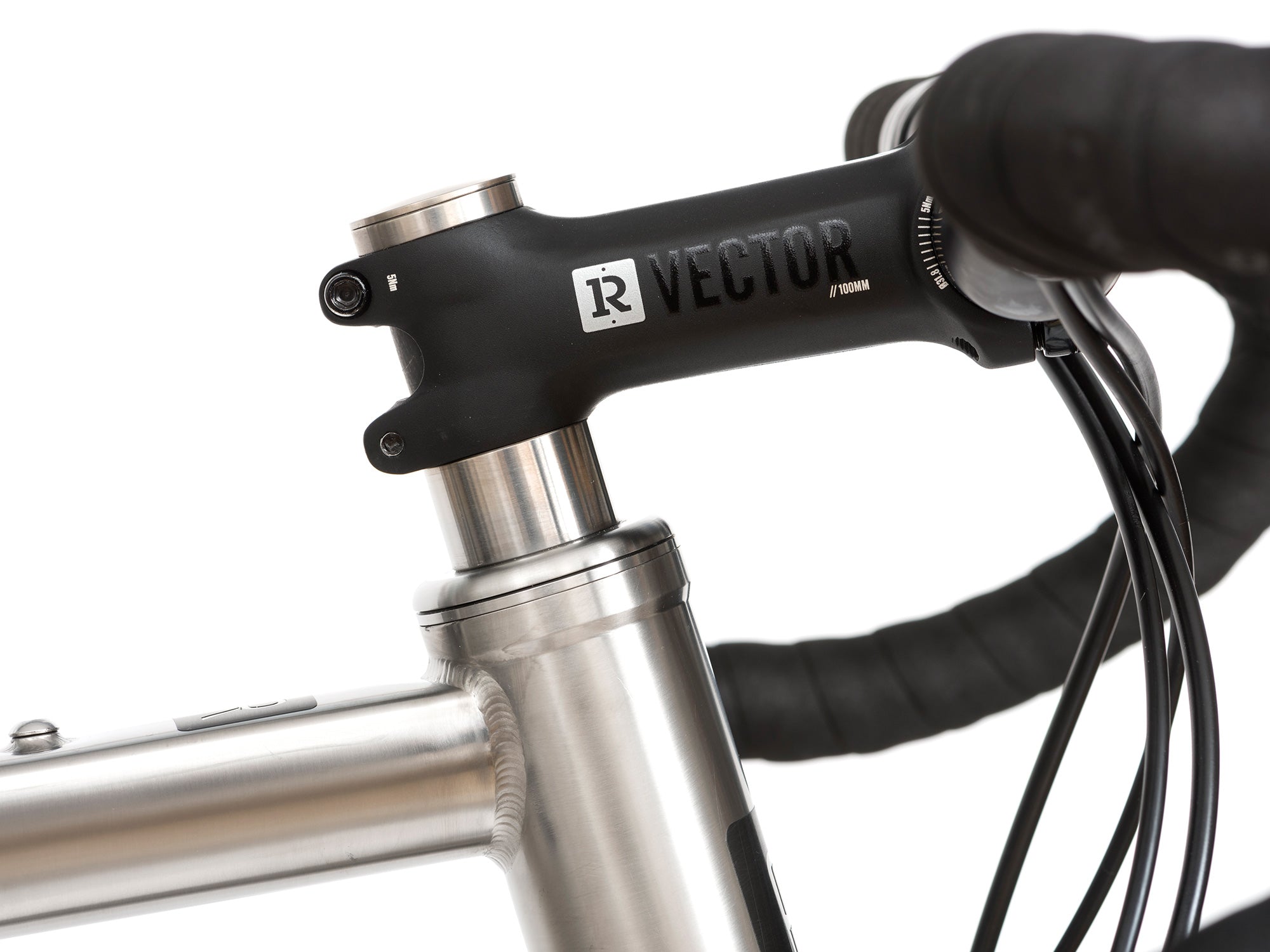

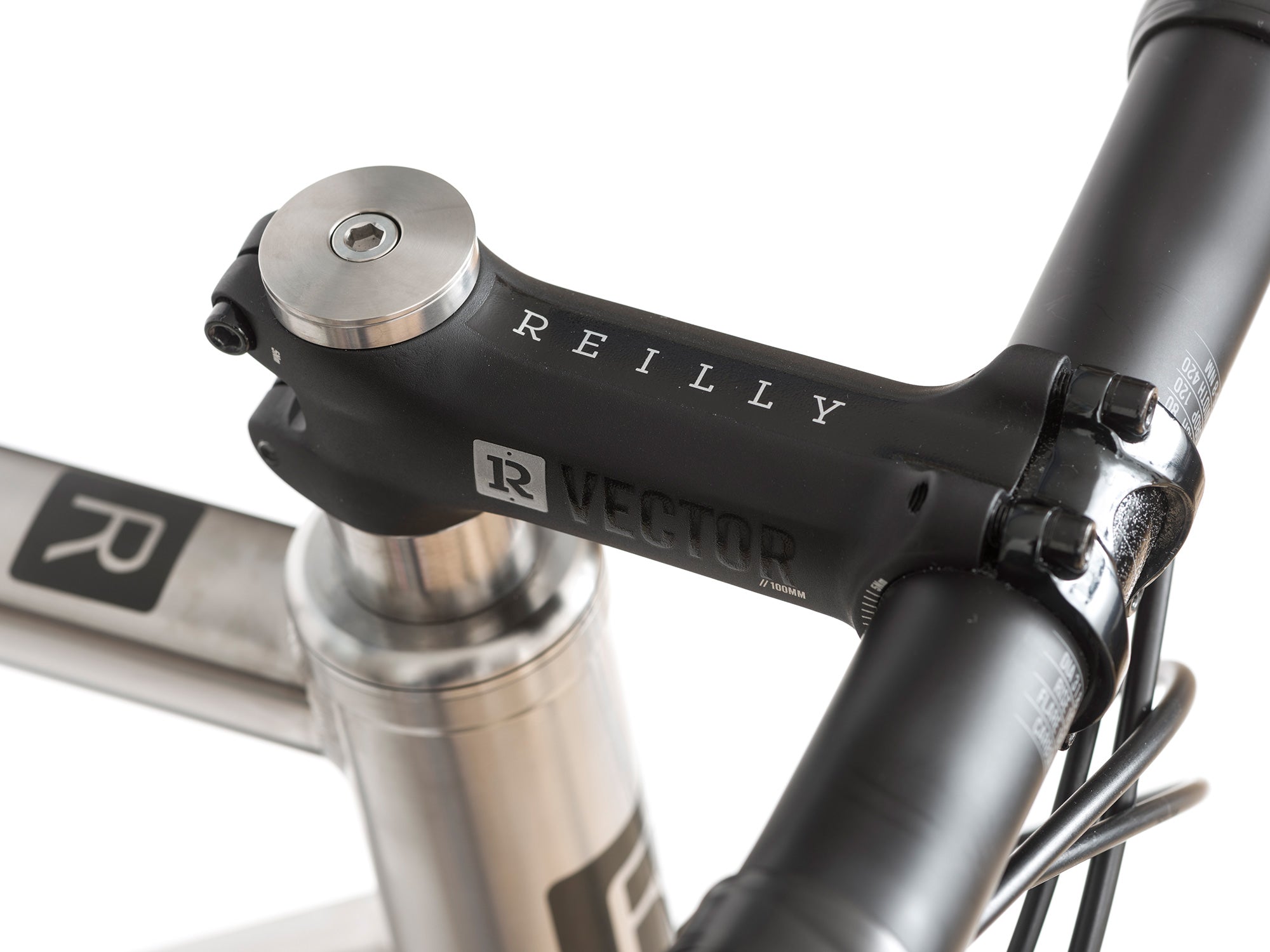

• Reilly Vector stem
• Strada All Season Disc handbuilt wheelset, tubeless ready. DT rims on Miche hub (200mm width; 23mm depth)
• Continental Terra Speed or Panaracer Gravel King SK tyres, subject to availability. Tubeless ready 38 to 43c fitted. Other sizes available, but please call to discuss
• Reilly Vector carbon seat post (31.6mm), supplied with 2 6AL-4V titanium retaining bolts

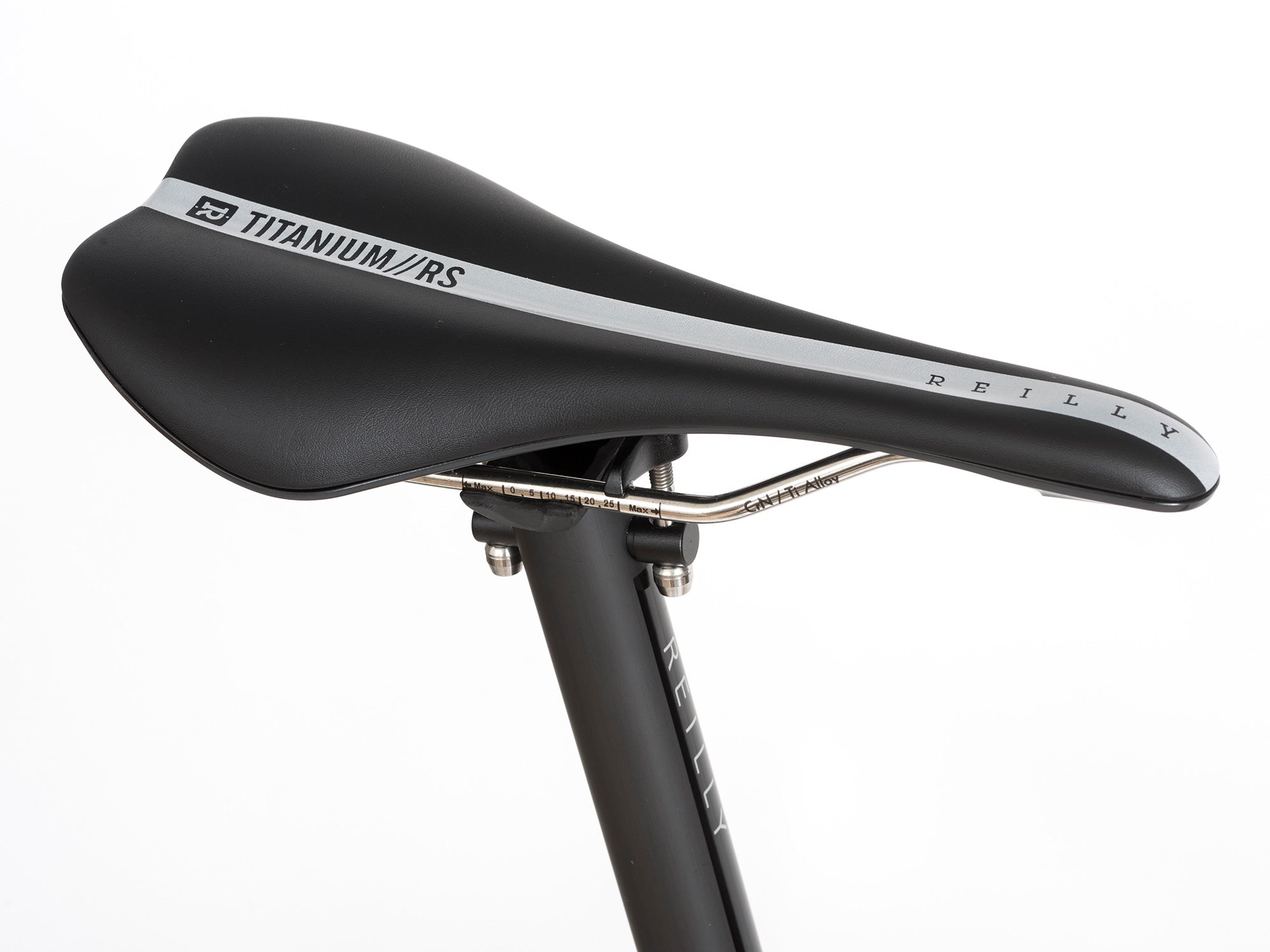

• Reilly Vector RS saddle with titanium alloy rails
We'll set-up the front brake to be operated by the Right Hand lever. Please state in 'Order Notes' how you would like them set-up if otherwise.

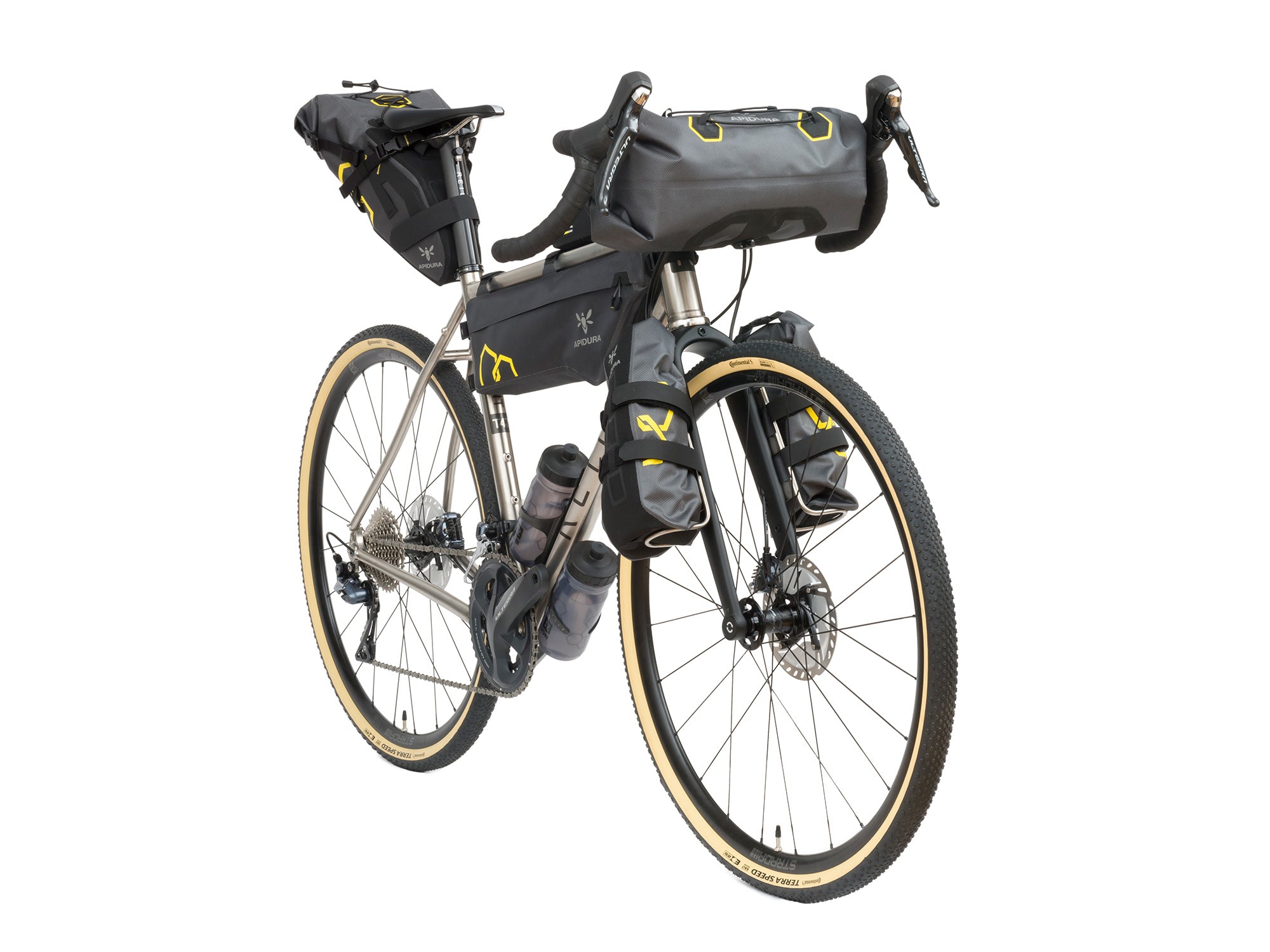

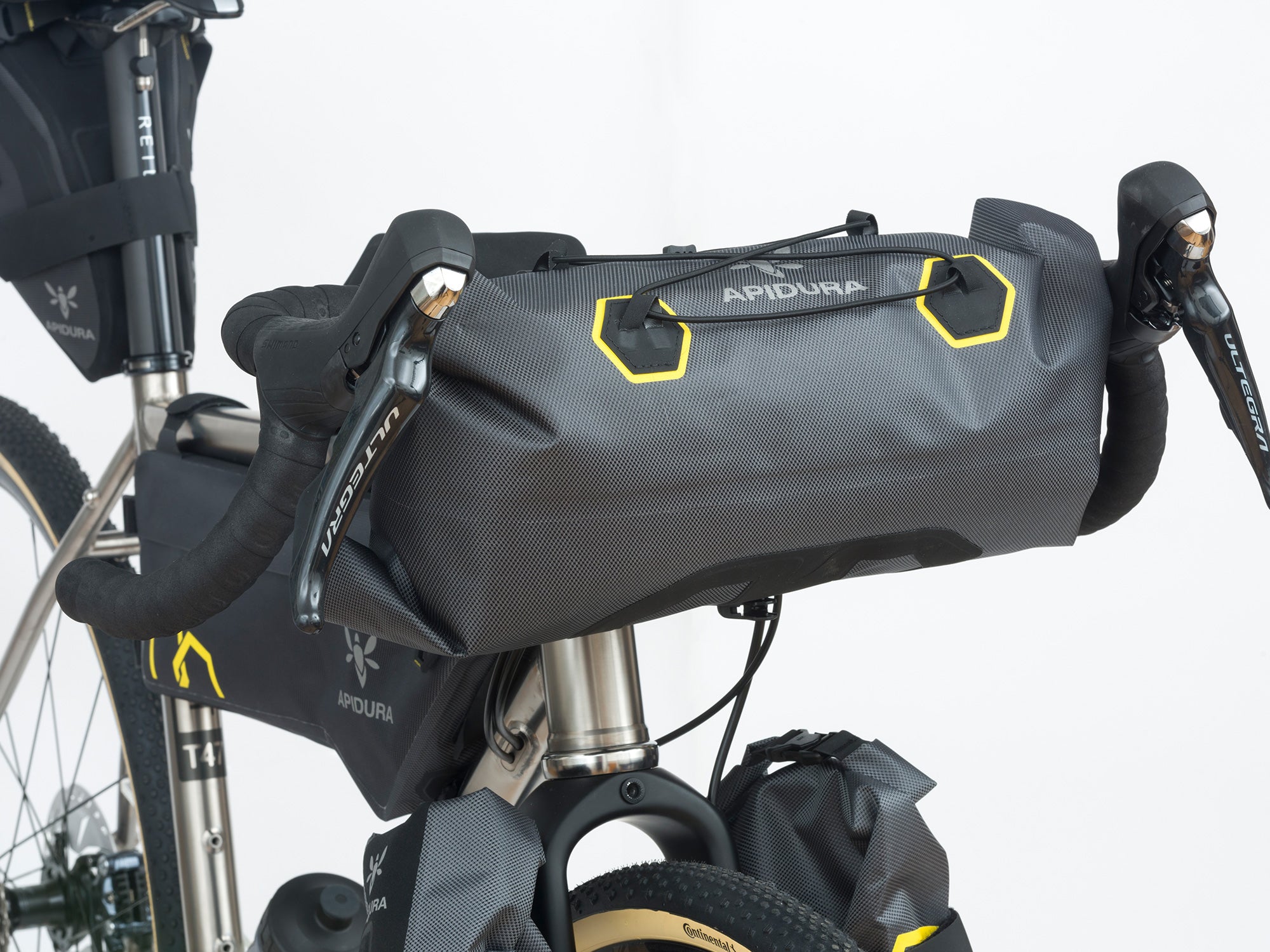

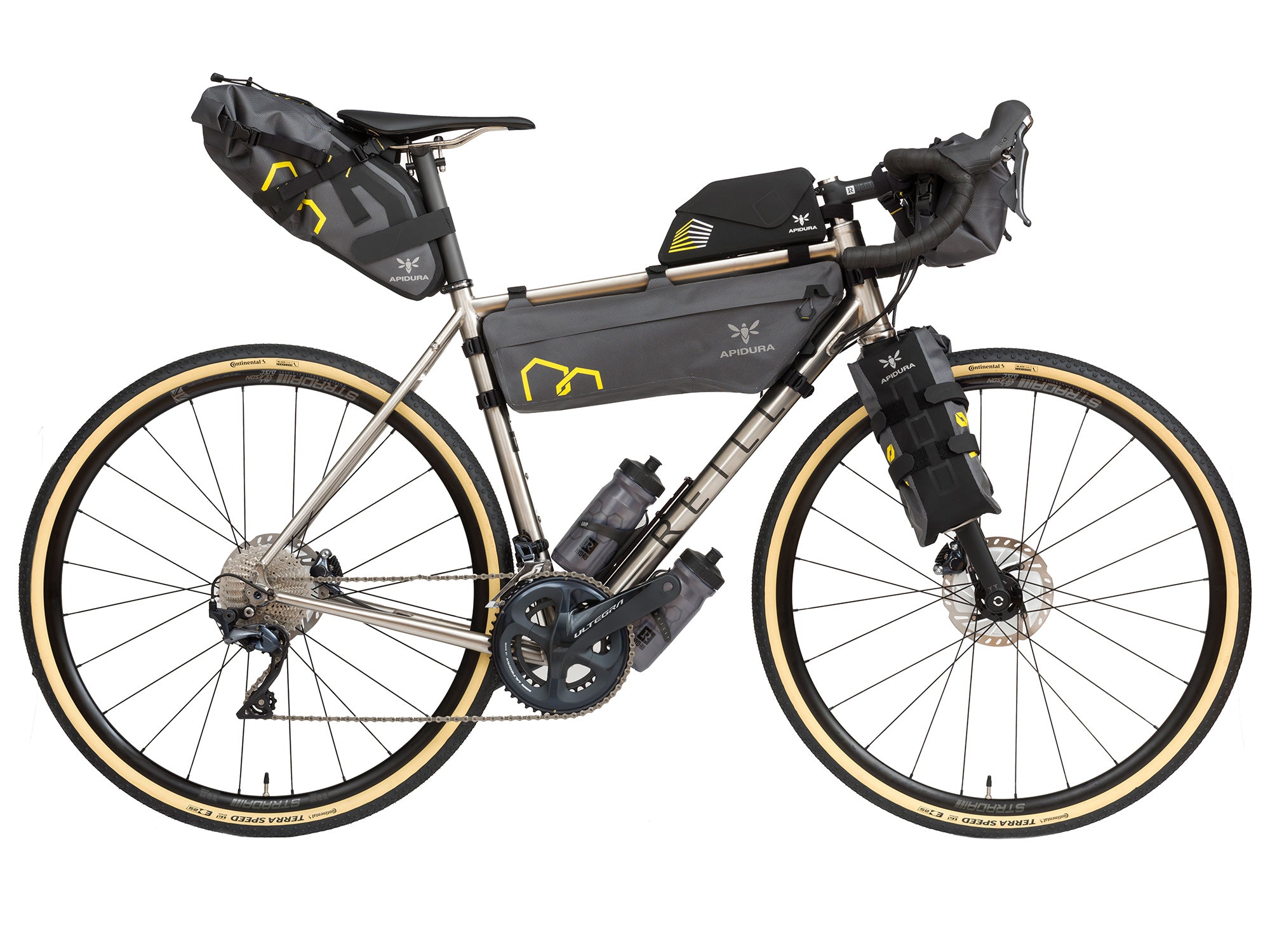

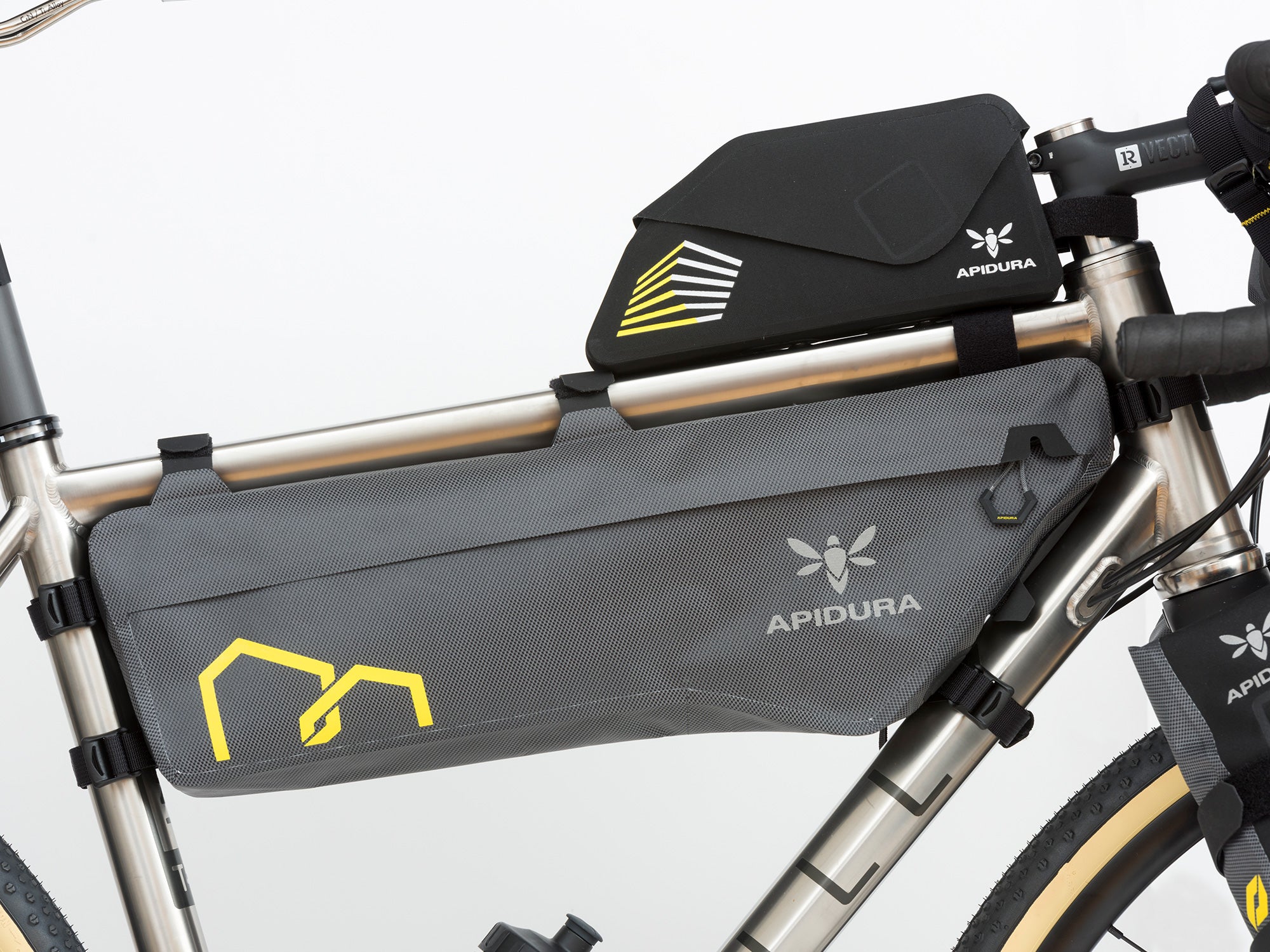

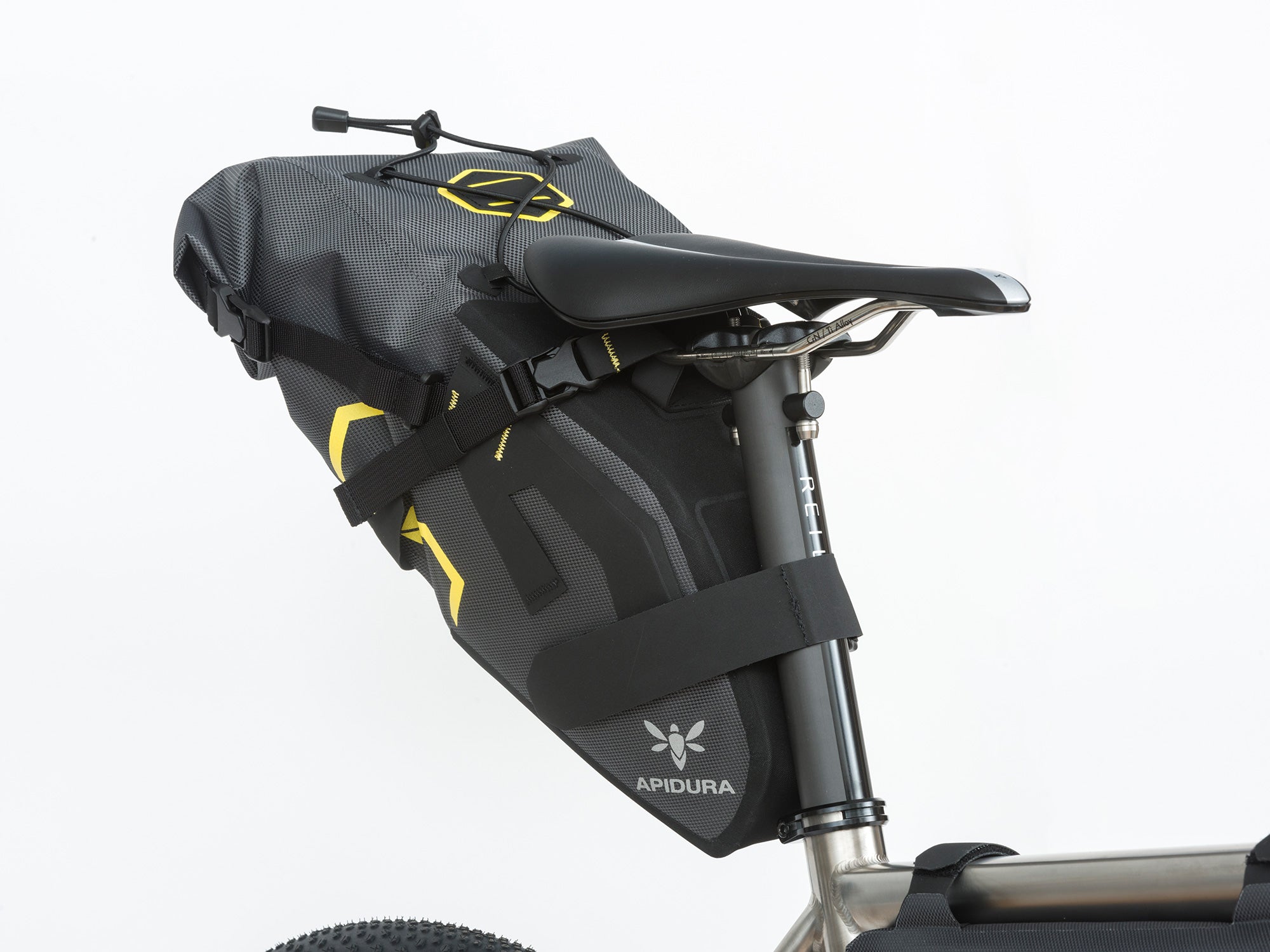

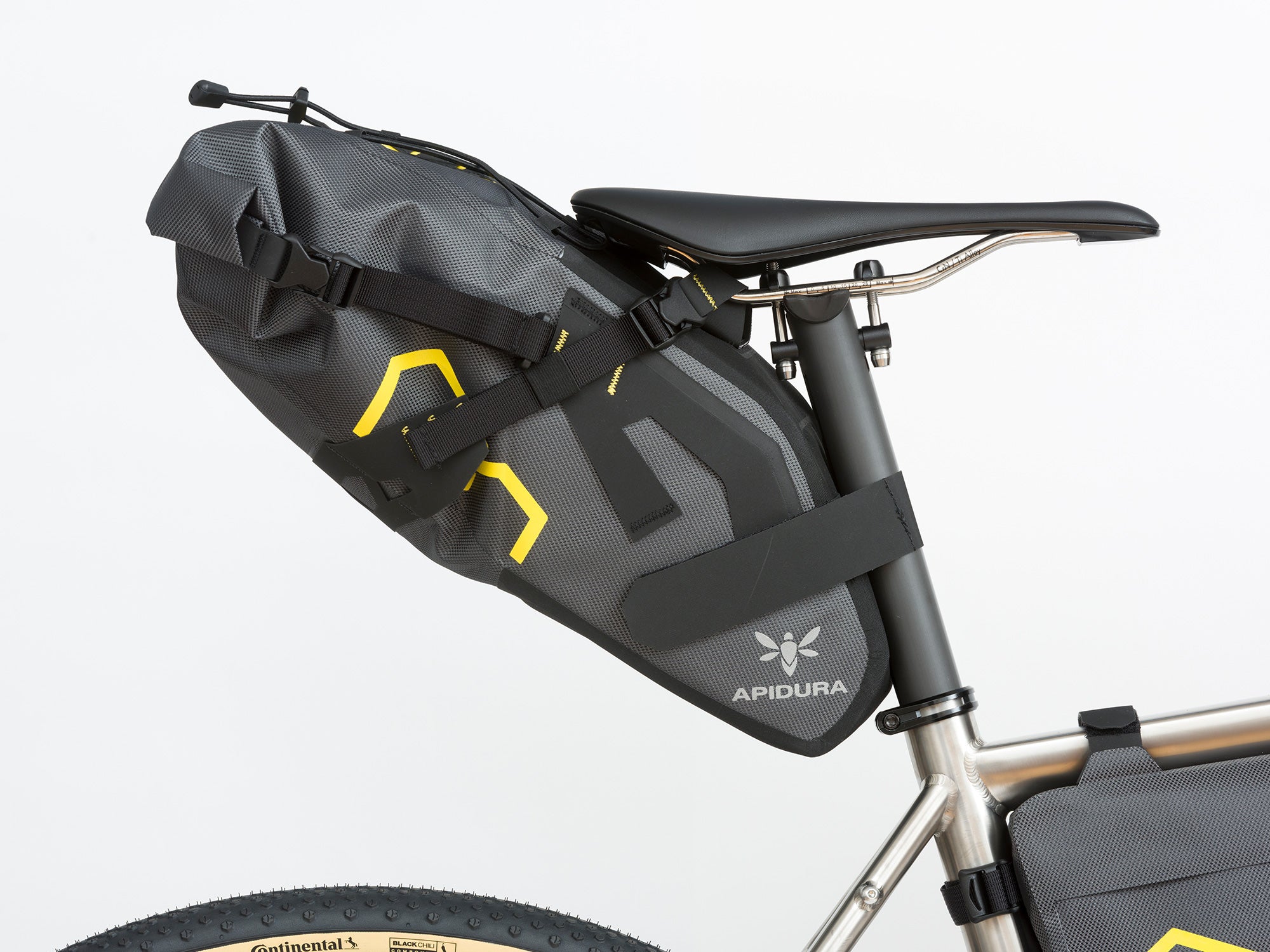

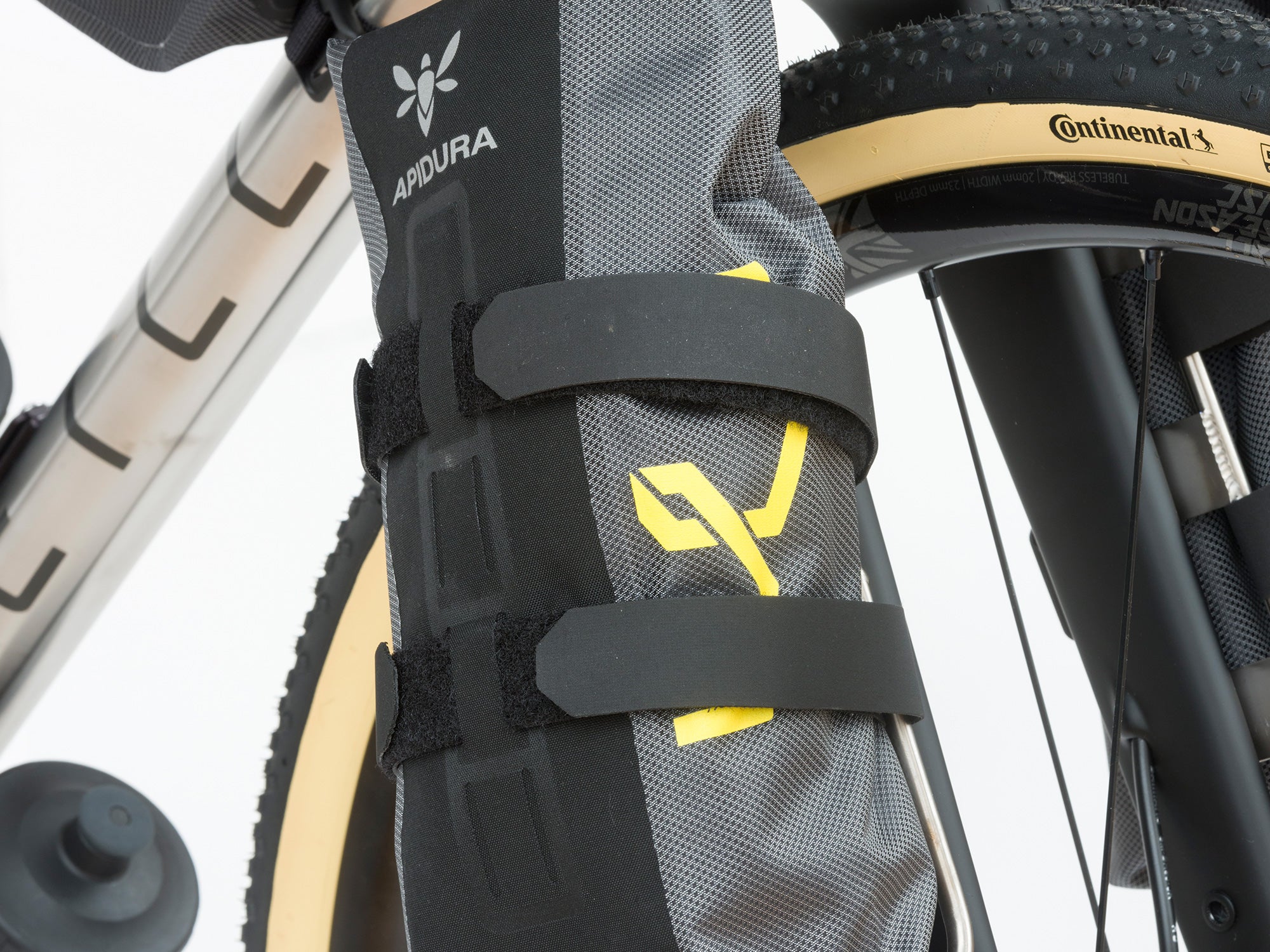

We do not sell bikepacking packs. Thanks to Apidura the loan of their Expedition range for the photographic shoot. For more info visit Apidura

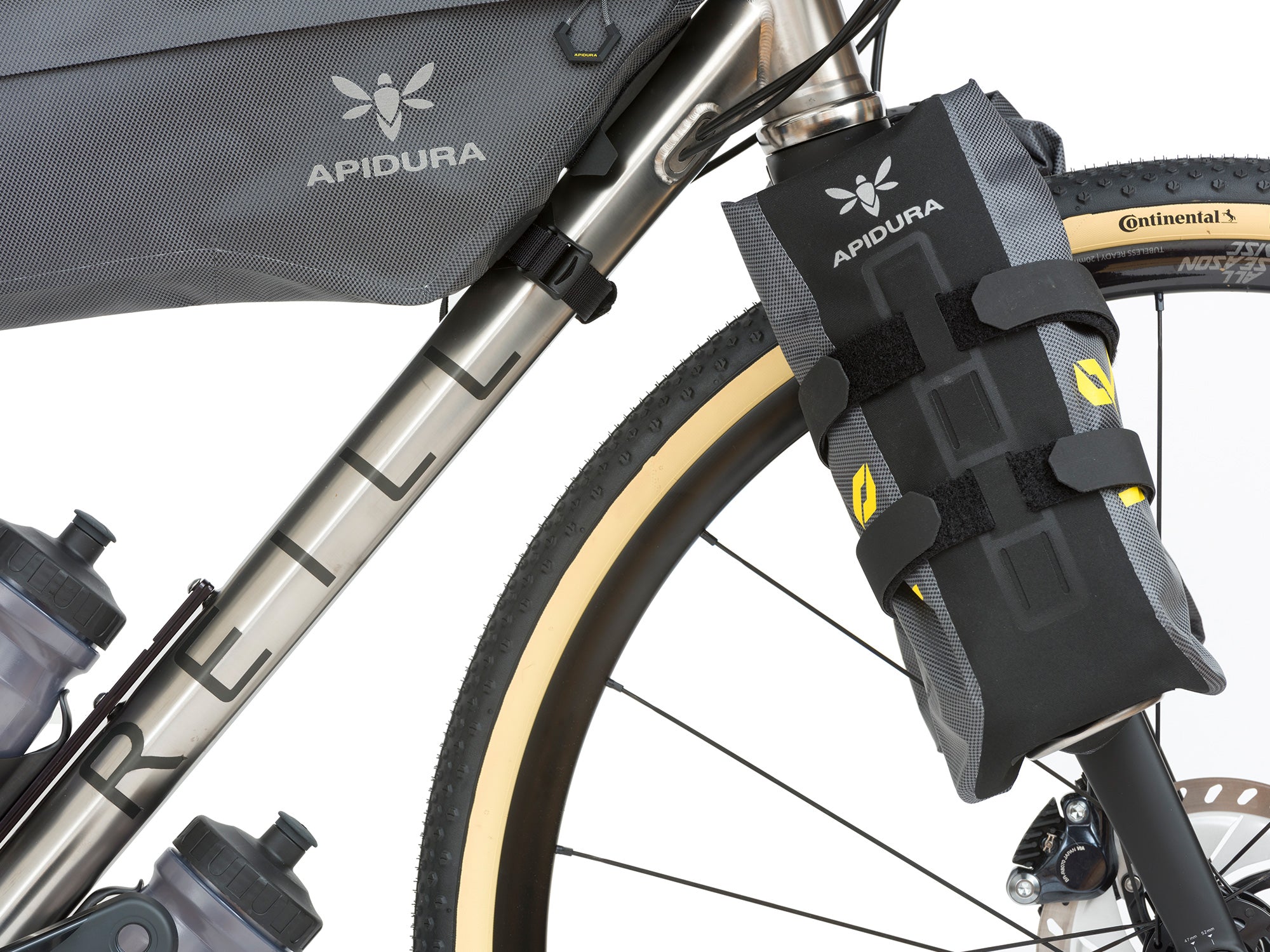

Fork packs attached using King Cage Titanium Many Things Cages. Available from Bikemonger
Rider Height vs Frame Sizing
| Rider Height (Ft/in) | Rider Height (Metres) | Suggested Frame Size |
|---|---|---|
| 5'1" to 5'4" | 1.55m to 1.63m | EXTRA EXTRA SMALL |
| 5'3" to 5'6" | 1.60m to 1.68m | EXTRA SMALL |
| 5'5" to 5'8" | 1.65m to 1.73m | SMALL |
| 5'7" to 6'0" | 1.70m to 1.83m | MEDIUM |
| 5'11" to 6'2" | 1.80m to 1.88m | LARGE |
| 6'1" to 6'4" | 1.85m to 1.93m | EXTRA LARGE |
| 6'3" to 6'6" | 1.91m to 1.98m | EXTRA EXTRA LARGE |
Frame Sizing
| SIZE | EXTRA SMALL | SMALL | MEDIUM | LARGE |
EXTRA LARGE |
| SEAT TUBE C/TOP | 470MM | 490MM | 510MM | 530MM | 550MM |
| TOP TUBE VIRTUAL | 520MM | 540MM | 550MM | 570MM | 590MM |
| BB HEIGHT | 275MM | 275MM | 275MM | 275MM | 275MM |
| CHAINSTAY LENGTH | 430MM | 430MM | 430MM | 430MM | 425MM |
| SEAT TUBE ANGLE | 76 | 75 | 74 | 73.5 | 73 |
| HEAD TUBE ANGLE | 70 | 71 | 71.5 | 72 | 72 |
| FORK RAKE | 50MM | 50MM | 50MM | 50MM | 50MM |
| HEAD TUBE | 100MM | 120MM | 135MM | 155MM | 175MM |
| AXLE TO CROWN | 400MM | 400MM | 400MM | 400MM | 400MM |
| STACK | 531MM | 552MM | 568MM | 589MM | 608MM |
| REACH | 384MM | 386MM | 390MM | 395MM | 404MM |
| WHEELBASE | 1032MM | 1032MM | 1035MM | 1038MM | 1053MM |
| FRONT CENTRE | 612MM | 612MM | 615MM | 618MM | 632MM |
