SPECTRE//ALL ROAD DISC FRAMESET
Tax included.

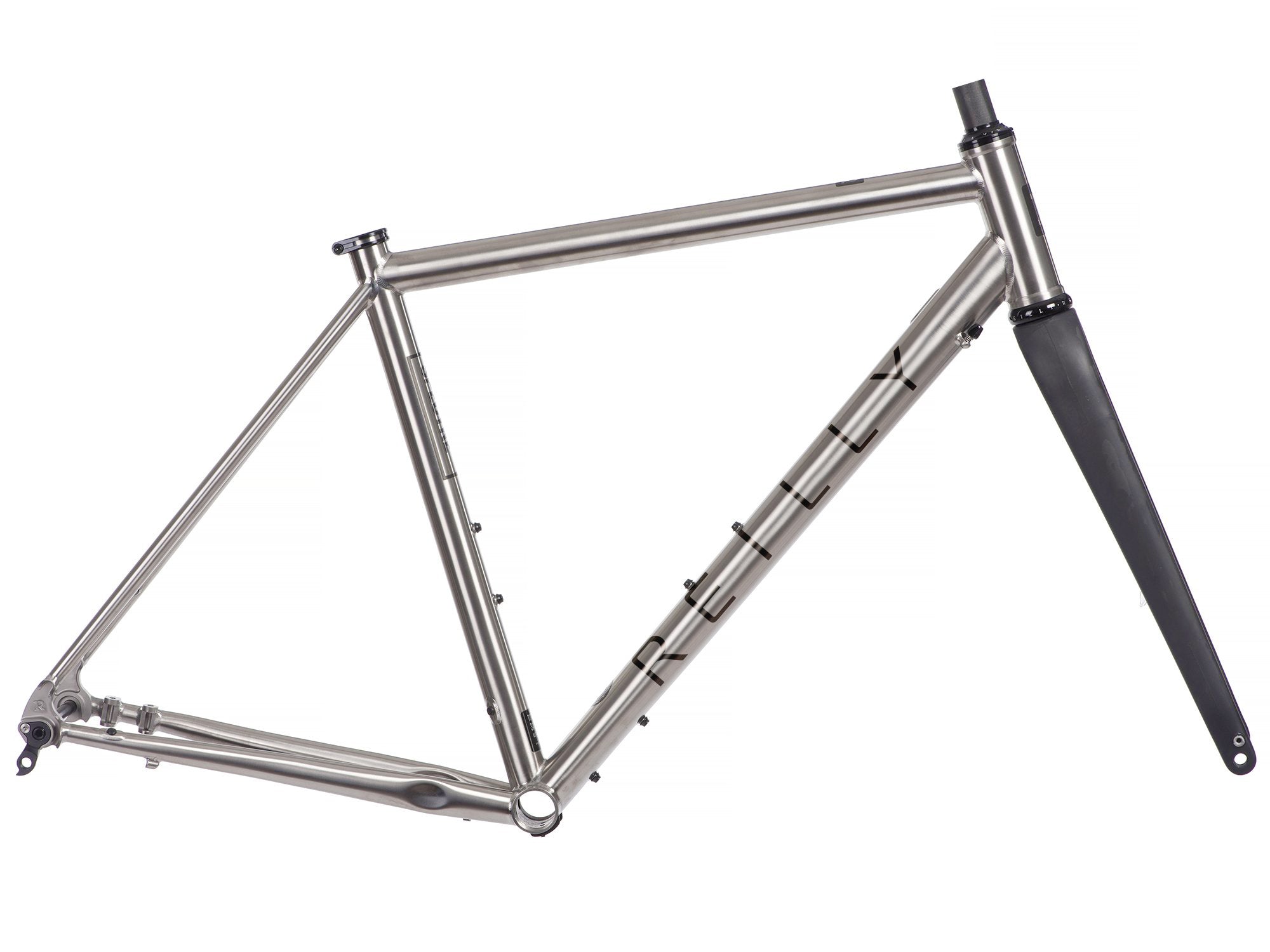

SPECTRE: TITANIUM 3AL 2.5V // ALL ROAD DISC FRAMESET
Our disc brake Road frame the SPECTRE has awe-inspiring levels of braking power and is ultra versatile with ample tyre clearance up to 35c. Featuring a CNC machined low mount disc dropout, hewn from a solid billet of 6AL4V titanium, incredibly stiff and sleek - this frame is designed for the country lanes.
Frame Features
- 3AL-2.5V Cold worked ultra butted titanium tube set
- 44mm head tube allowing standard and tapered steerers
- 31.6mm seat post size
- 34.9mm band on front derailleur clamp
- English threaded BB
- Flat mount brake mounts
- Bright brushed finish as standard
- 142mm x 12mm thru axle
- Hidden fittings for guards
- No pannier fittings. If these are necessary then we say Gradient.
- 3 sets of bottle cage mounts
- 35c Max tyres without guards // 32c with guards
- Mechanical and Di2 ready
- Bright brushed as standard
- Tubing UTS 975MPa
- FAQ's
This is not a road race frame, it is much more versatile than that. A Gradient for the road.
Rider Height vs Frame Sizing
| Rider Height (Ft/in) | Rider Height (Metres) | Suggested Frame Size |
|---|---|---|
| 5'1" to 5'4" | 1.55m to 1.63m | EXTRA EXTRA SMALL |
| 5'3" to 5'6" | 1.60m to 1.68m | EXTRA SMALL |
| 5'5" to 5'8" | 1.65m to 1.73m | SMALL |
| 5'7" to 6'0" | 1.70m to 1.83m | MEDIUM |
| 5'11" to 6'2" | 1.80m to 1.88m | LARGE |
| 6'1" to 6'4" | 1.85m to 1.93m | EXTRA LARGE |
| 6'3" to 6'6" | 1.91m to 1.98m | EXTRA EXTRA LARGE |
Frame Sizing
| SIZE | EXTRA SMALL | SMALL | MEDIUM | LARGE | EXTRA LARGE |
| SEAT TUBE C/TOP | 470mm | 490mm | 510mm | 530mm | 540mm |
| TOP TUBE EFFECTIVE | 515mm | 530mm | 550mm | 570mm | 590mm |
| BB DROP | 72mm | 72mm | 72mm | 72mm | 72mm |
| CHAINSTAY LENGTH | 414mm | 417mm | 420mm | 420mm | 422mm |
| SEAT TUBE ANGLE | 75.5° | 74.5° | 73.5° | 72.5° | 72.5° |
| HEAD TUBE ANGLE | 70.5° | 71° | 72° | 73.5° | 73° |
| FORK RAKE | 47mm | 47mm | 47mm | 47mm | 47mm |
| TRAIL | 72mm | 69mm | 63mm | 59mm | 59mm |
| FRONT CENTRE | 594mm | 594mm | 596mm | 612mm | 626mm |
| WHEELBASE | 997mm | 1000mm | 1005mm | 1021mm | 1038mm |
| STANDOVER | 744mm | 756mm | 780mm | 800mm | 812mm |
| HEAD TUBE | 105mm | 120mm | 140mm | 160mm | 175mm |
| STACK | 526mm | 542mm | 564mm | 585mm | 600mm |
| REACH | 376mm | 378mm | 382mm | 396mm | 406mm |
