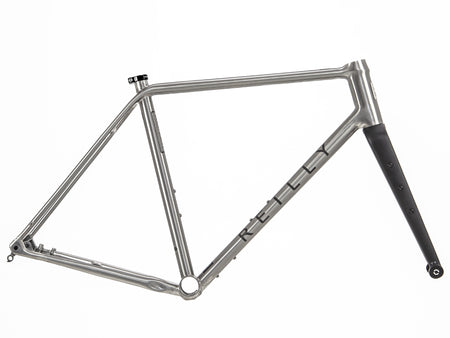

REFLEX // GRAVEL RACE FRAMESET

In stock
The Reflex takes fast gravel riding to a new level. Combining the sleek investment cast aero shaping of the Fusion with the progressive geometry of the Gradient, the Reflex is the ultimate titanium gravel race bike. The Reflex is fully integrated, with internal frame routing for brake hoses, Di2 cables, dynamo cabling for front and rear lights and a hydraulic dropper seat post via the T47 bottom bracket shell. This integration not only enhances the Reflex’s clean lines, but protects hoses and cables, and offers a clutter-free cockpit and maximum hanging space for bikepacking kit.

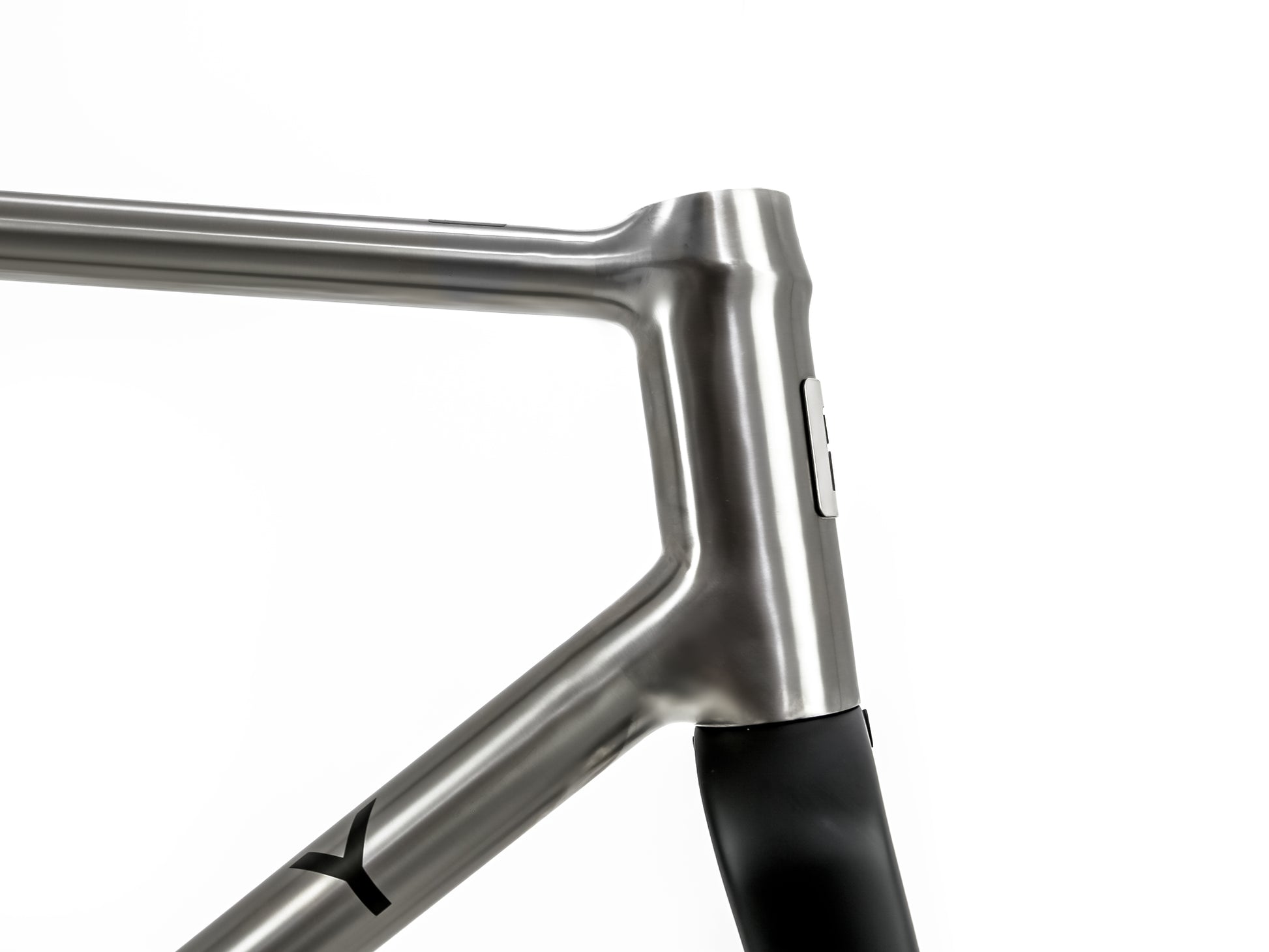

With ultra-wide tyre clearance up to 700c x 55mm(29” x 2.2”), the Reflex combines the characteristic flex and flow of a Reilly titanium gravel bike with the agility of a race thoroughbred, making it the perfect beast for hitting the tech trails or clocking up ultra distance miles. The Reflex’s 6AL- 4V Ti headtube is compatible with FSA ACR and Deda DCR bar / stem options and may be fitted with short-travel gravel suspension forks for hardcore off-road use.
“With the Reflex,” says Reilly co-founder Neil FitzGerald, “we wanted to meld the responsive handling and comfort of the Gradient with the speed and agility of the Fusion to create a fresh-looking titanium gravel race winner. We’re thrilled with the result.” With its chunky tyres, striking investment castlines and integrated simplicity, bundled with Reilly's lifetime warranty on the frameset, the Reflex is a guaranteed head-turner and a solid  investment in your gravel riding future.
TO BOOK A DEMO RIDE OR FOR HELP WITH BIKE BUILDS CONTACT PHIL 01273 694 143 / SALES@REILLYCYCLEWORKS.COM
Regular price £3,332.50
Size

BOOK A DEMO RIDE HERE


Titanium Grade  6AL - 4V with 3AL - 2.5V

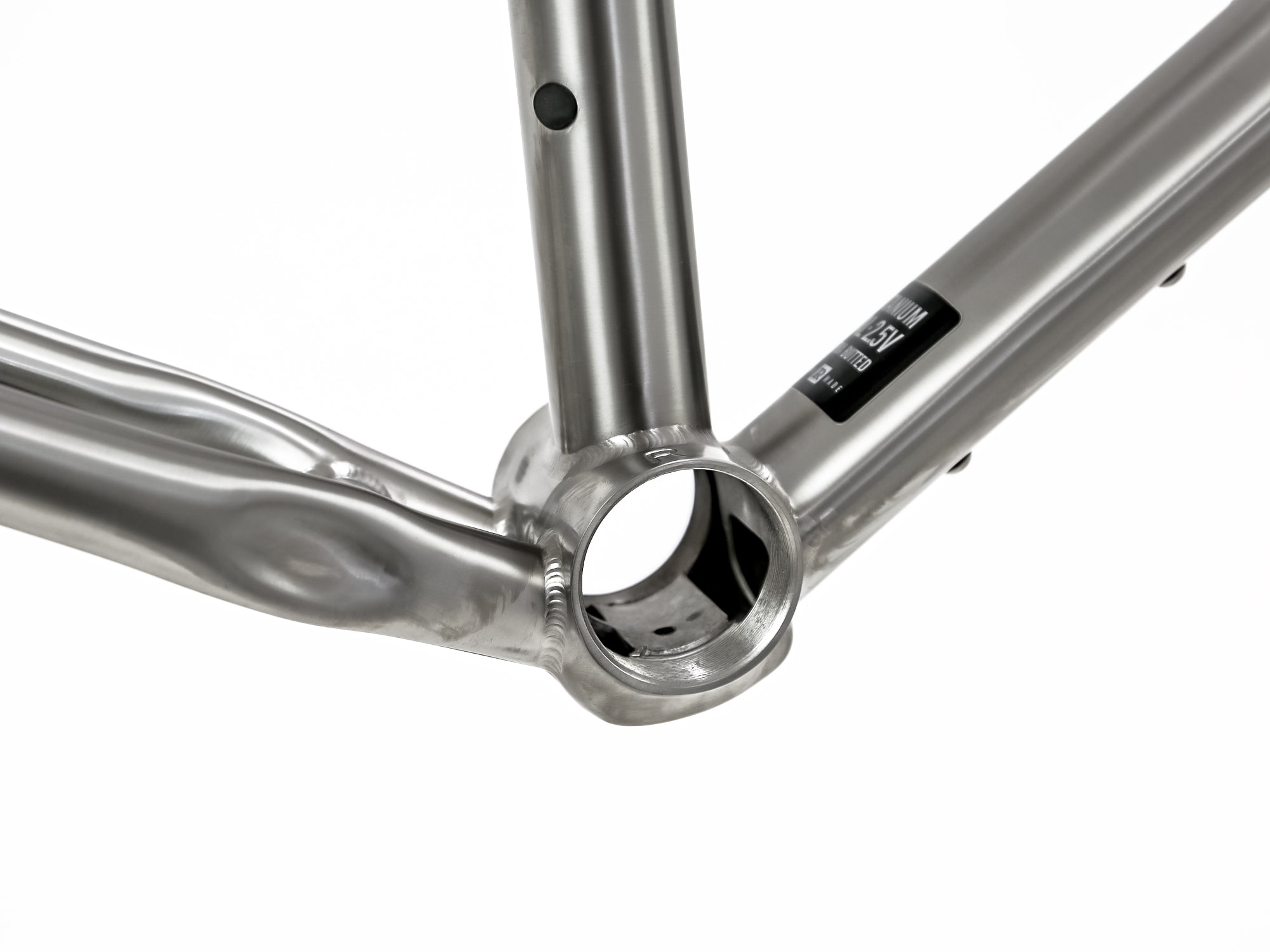

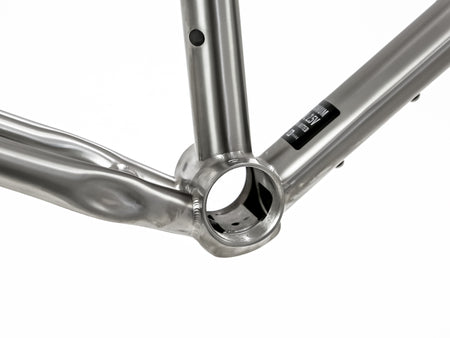

Bottom Bracket Shell Threaded T47
Bottom Bracket SN-Vitae T47/68
Cable Routing Fully Integrated

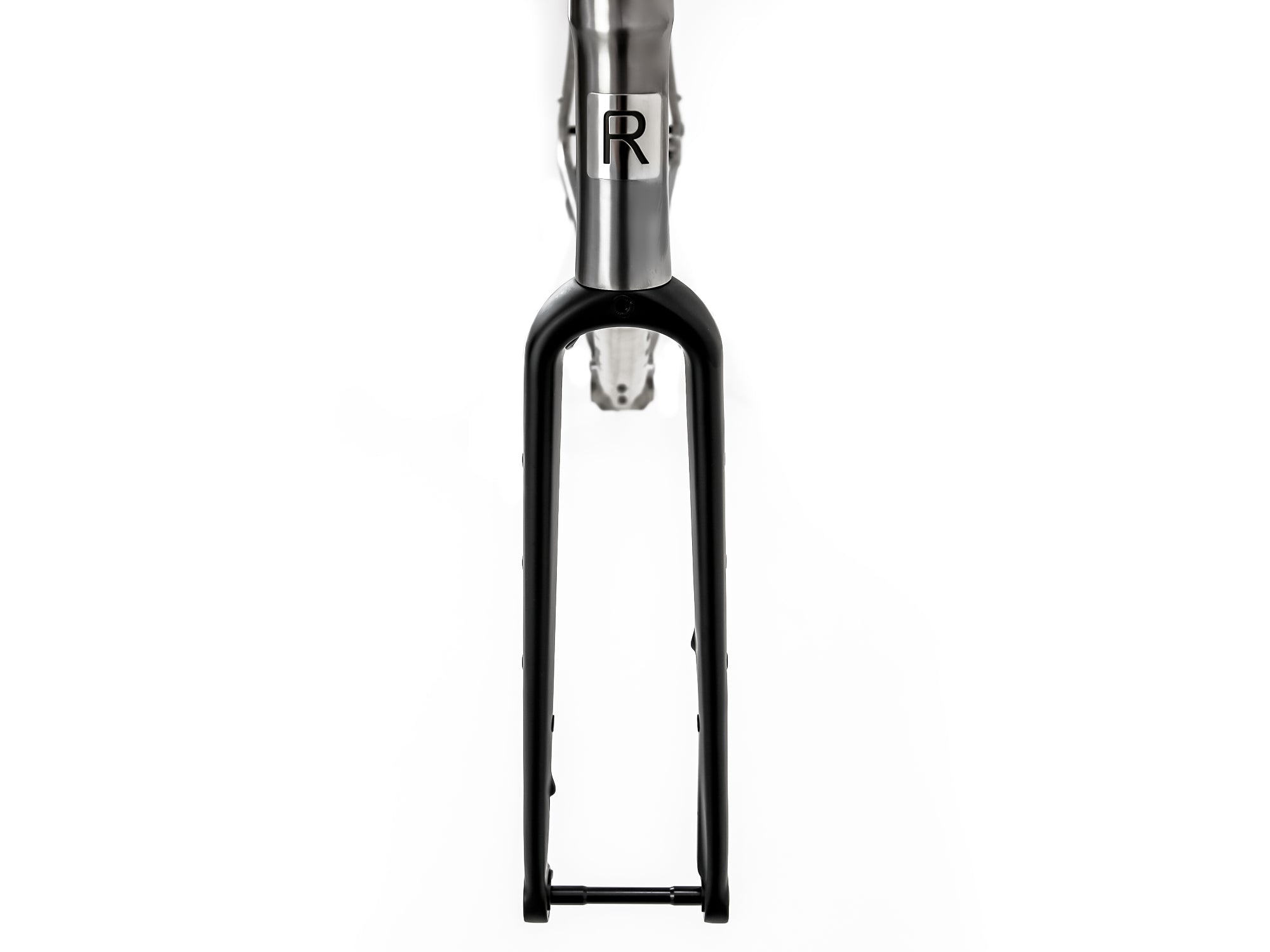

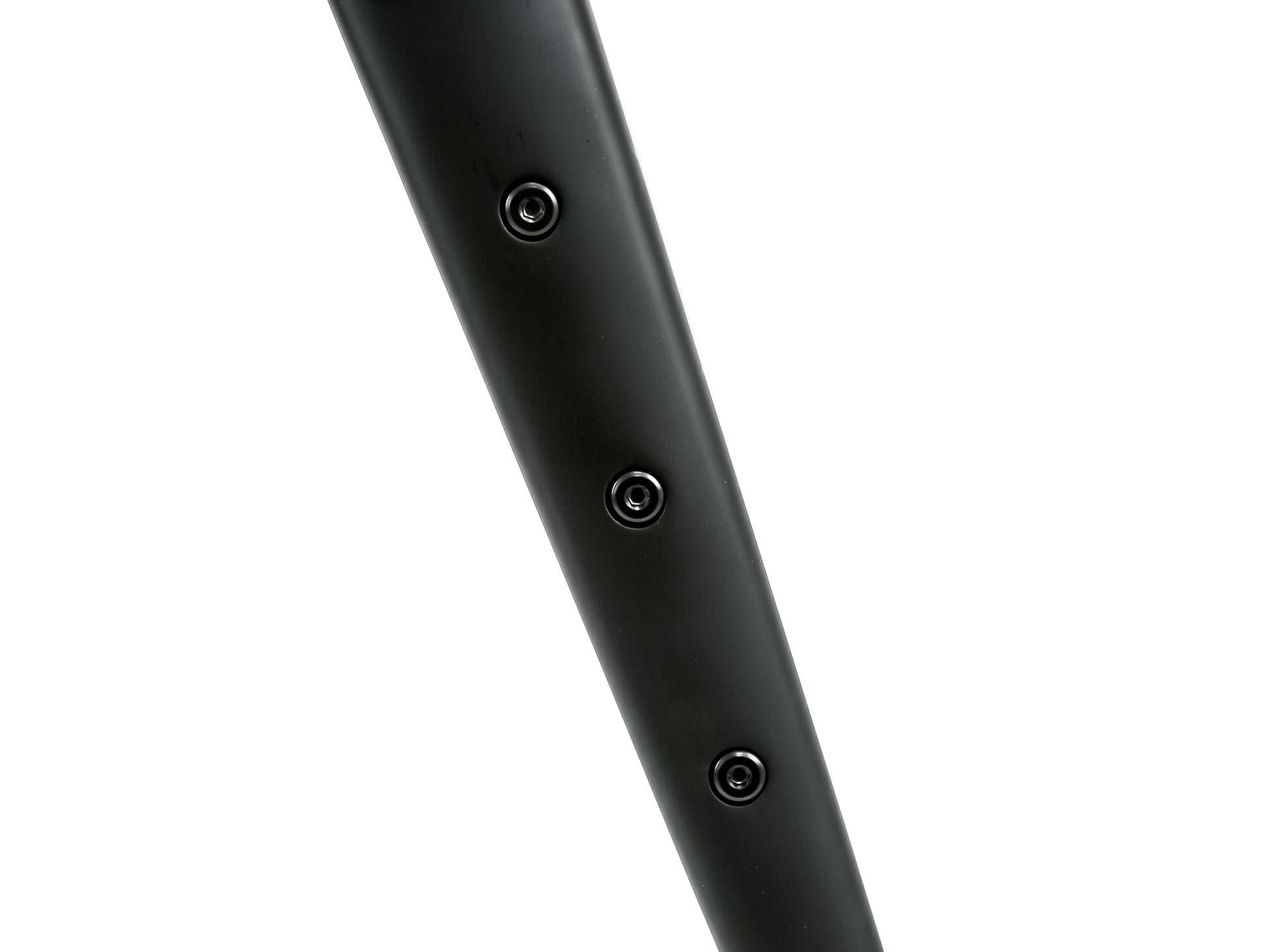

Fork Integrated Carbon Adventure Fork
Headset / Bars / Stem Fully Integrated
Bar Tape Reilly Black EVA Bar Tape
Frame Features x3 Bottle cage mounts
Set-Up British Standard, whereby the right-hand lever operates the front brake and the left-hand lever operates the rear brake
Warranty   Lifetime Frame Warranty (Original Owner Only, Non-Transferable) T&Cs Apply

Frame Geometry

SIZE XXS XS SMALL MEDIUM LARGE
XL
XXL
SEAT TUBE C/TOP 460MM 470MM 490MM 510MM 530MM 550MM 570MM
TOP TUBE VIRTUAL 500MM 520MM 540MM 550MM 570MM 590MM 605MM
BB HEIGHT 275MM 275MM 275MM 275MM 275MM 275MM 275MM
CHAINSTAY LENGTH 430MM 430MM 430MM 430MM 430MM 430MM 430MM
SEAT TUBE ANGLE 76 76 75 74 73.5 73 73
HEAD TUBE ANGLE 69.5 70.5 71 71.5 72 72 72
FORK RAKE 47MM 47MM 47MM 47MM 47MM 47MM 47MM
HEAD TUBE 100MM 100MM 120MM 135MM 155MM 175MM 195MM
AXLE TO CROWN 400MM 400MM 400MM 400MM 400MM 400MM 400MM
STACK 527MM 531MM 552MM 568MM 589MM 608MM 626MM
REACH 369MM 388MM 392MM 387MM 396MM 404MM 413MM
WHEELBASE 1014MM 1025MM 1032MM 1028MM 1038MM 1053MM 1068MM
FRONT CENTRE 594MM 605MM 612MM 607MM 618MM 632MM 647MM
