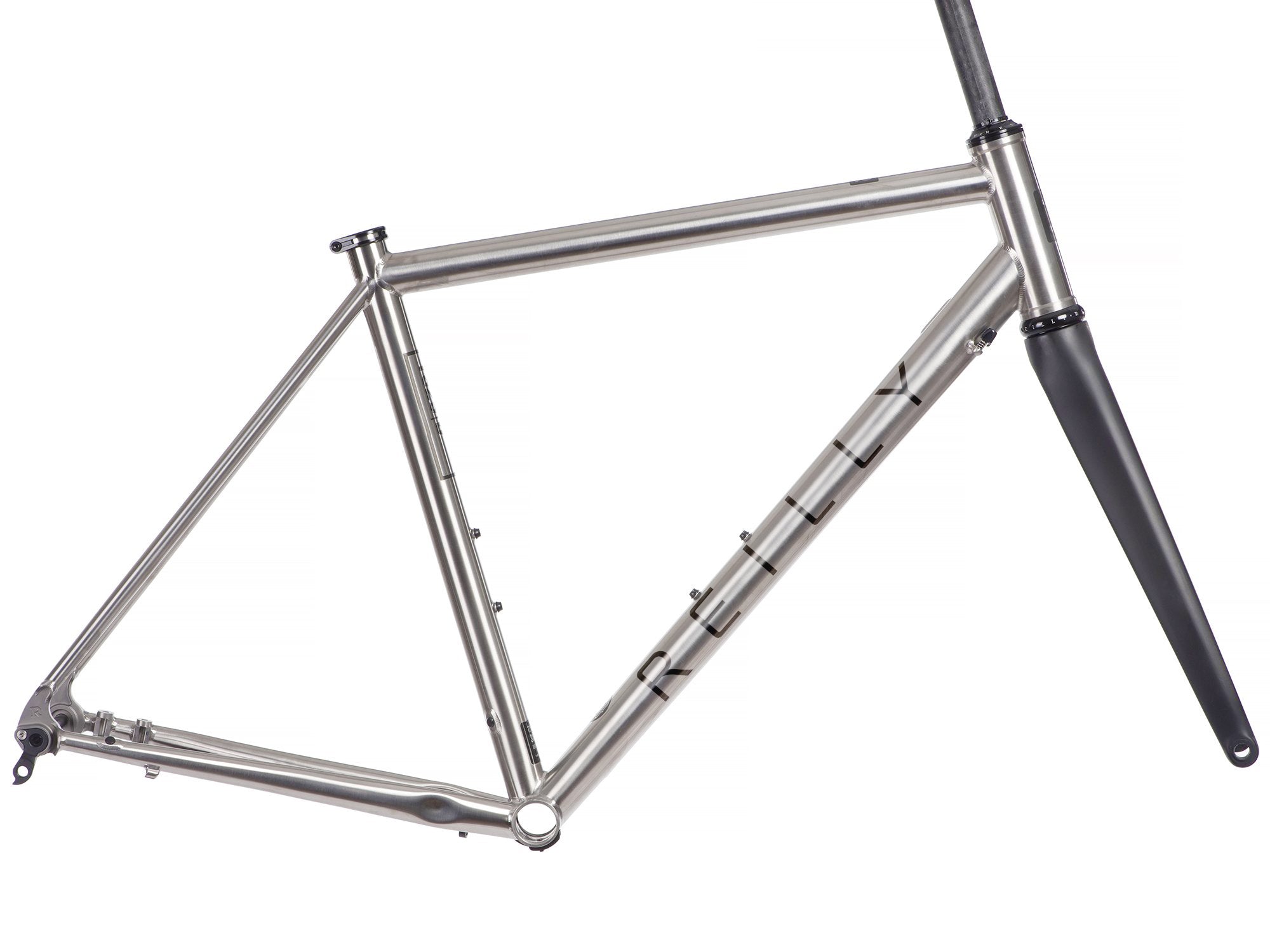

T640D: TITANIUM 6AL-4V // ROAD DISC FRAMESET
For the rider that demands and must have the best, the REILLY T640D is our flagship titanium road frame and available as custom or off the peg. Featuring ultra butted 6AL4V seamless main tubes that have a ultimate tensile strength of 1150MPa and density of just 4.42gm/cc, these numbers added to extraordinary design make the T640D staggeringly stiff but supremely comfortable. Lighter, stiffer and more compliant than 3AL2.5, this frame has it all and bags more. Designed for a tapered fork which adds incredible, sure footed, razor sharp handling.
Frame Features
- Di2/eps or mechanical to choice
- Designed for 30mm tyres if needed
- Flat mount brakes
- CNC XX44mm head tube for Chris King inset
- English threaded BB
- 31.6mm seat post size
- 34.9mm band on front derailleur
- Tubing UTS 1150MPa
- Bright brushed finish as standard
- Lifetime warranty
- FAQ's
Rider Height vs Frame Sizing
| Rider Height (Ft/in) | Rider Height (Metres) | Suggested Frame Size |
|---|---|---|
| 5'1" to 5'4" | 1.55m to 1.63m | EXTRA EXTRA SMALL |
| 5'3" to 5'6" | 1.60m to 1.68m | EXTRA SMALL |
| 5'5" to 5'8" | 1.65m to 1.73m | SMALL |
| 5'7" to 6'0" | 1.70m to 1.83m | MEDIUM |
| 5'11" to 6'2" | 1.80m to 1.88m | LARGE |
| 6'1" to 6'4" | 1.85m to 1.93m | EXTRA LARGE |
| 6'3" to 6'6" | 1.91m to 1.98m | EXTRA EXTRA LARGE |
Frame Sizing
| SIZE | SMALL | MEDIUM | LARGE | EXTRA LARGE |
| SEAT TUBE C/TOP | 490mm | 510mm | 530mm | 540mm |
| TOP TUBE EFFECTIVE | 530mm | 550mm | 570mm | 590mm |
| BB DROP | 72mm | 72mm | 72mm | 72mm |
| CHAINSTAY LENGTH | 407mm | 408mm | 410mm | 410mm |
| FORK RAKE | 43mm | 43mm | 43mm | 43mm |
| TRAIL | 63mm | 56mm | 56mm | 56mm |
| FRONT CENTRE | 578mm | 584mm | 599mm | 619mm |
| WHEELBASE | 974mm | 981mm | 996mm | 1016mm |
| STANDOVER | 753mm | 774mm | 792mm | 804mm |
| HEAD TUBE | 130mm | 150mm | 170mm | 185mm |
| STACK | 541mm | 564mm | 583mm | 597mm |
| REACH | 374mm | 382mm | 392mm | 407mm |
