Regular price £6,199.00 GBP
Regular price Sale price £6,199.00 GBP
Sale Sold out
Tax included.

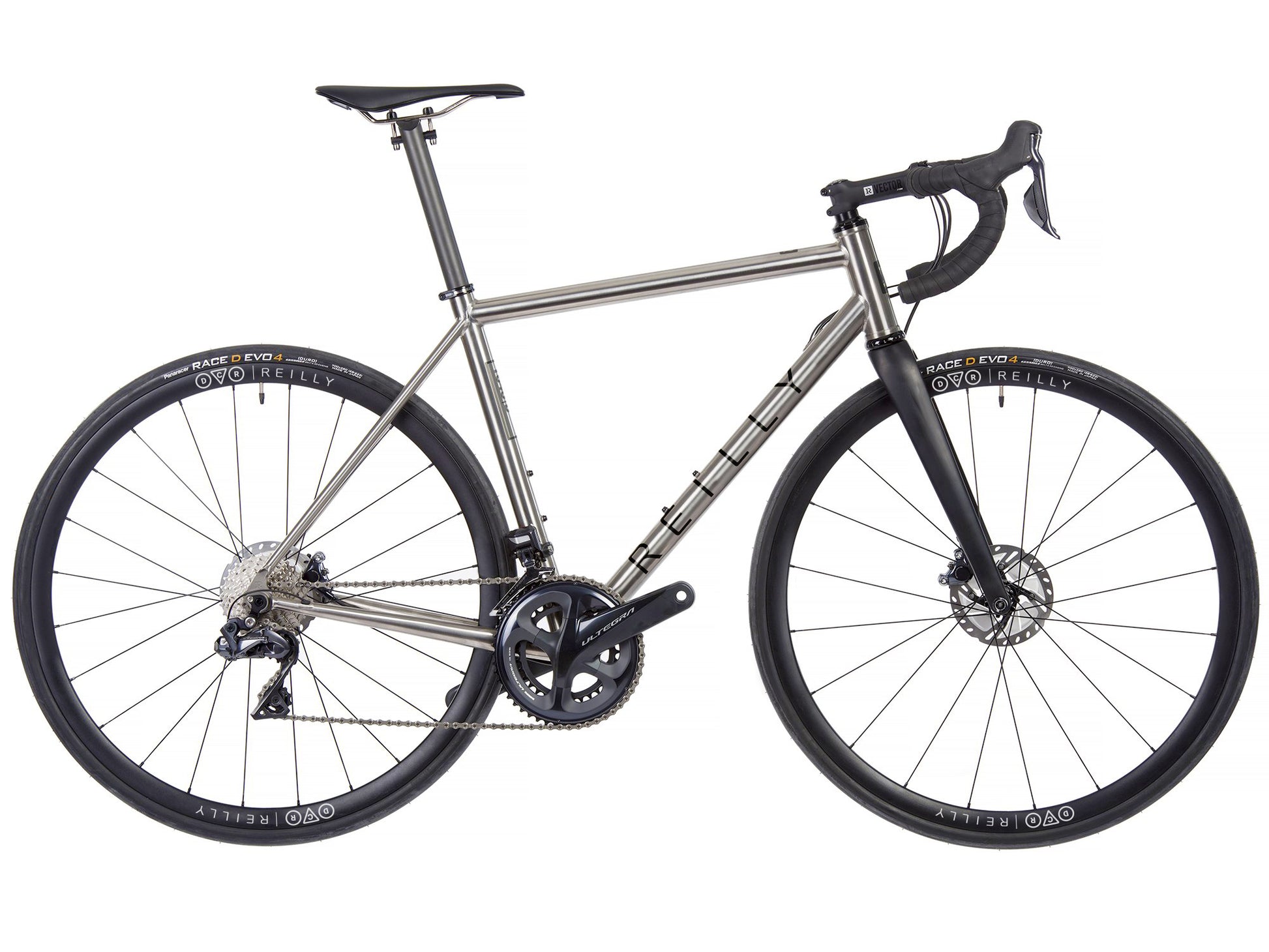

For the rider that demands and must have the best, the REILLY T640D is our flagship titanium road frame and available as custom or off the peg. Featuring ultra butted 6AL4V seamless main tubes that have a ultimate tensile strength of 1150MPa and density of just 4.42gm/cc, these numbers added to extraordinary design make the T640D staggeringly stiff but supremely comfortable. Lighter, stiffer and more compliant than 3AL2.5, this frame has it all and bags more. Designed for a tapered fork which adds incredible, sure footed, razor sharp handling.

The Builds

We have spent many hours in the saddle considering our perfect setup for the T640 bikes and we believe the options available meet our riders high demands and ours of course.

We'll set-up the front brake to be operated by the Right Hand lever. Please state in 'Order Notes' how you would like them set-up if otherwise.


Shimano / SRAM / Campagnolo complete groupsets: We've chosen the components to best match the conditions the T640D excels in. Be it climbing in the mountains or racing we have you covered. We only supply complete groupset.

Builds are supplied with 50/34 Compact Chainsets.

Wheelset and Tyres:

  • DCR x Reilly Carbon 37s¬†fitted as standard. Option to upgrade to Strada Performance Aero Disc 35/45/55s
  • Continental Grand Prix 5000:¬†Unsurpassed puncture protection and Continentals advanced BlackChili compound for lower rolling resistance and increased grip.¬†

Bars, Stem, Seatpost and Saddle:

We've specced our T640D with the best in REILLY componentry.

  • Vector carbon seat post and our lightest yet at 148 grams, supplied with 2 6AL-4V titanium retaining bolts.
  • Vector titanium RS saddle. Anatomically shaped, a proprietary technology that gives our saddle a sleek finish without a visible seam between the cover and the base. In addition, this innovative technology also ensures a 100% waterproof feature.
  • Vector alloy bar and stem.
  • Vector chrono headset, for 44mm head tubes, 1 1/8" to 1.5" tapered steerers.
Arran's review

On road the T640 has not lost any of the vibration absorbing properties normally associated with titanium, however on the hills when step up out of the saddle on the pedals the bicycle immediately feels so much more solid and stiffer, especially around the bottom bracket
Read the full review here

Frame Features

  • Di2/eps or mechanical to choice
  • Designed for 30mm tyres if needed
  • Flat mount brakes
  • CNC XX44mm head tube for Chris King inset
  • English threaded BB
  • 31.6mm seat post size
  • 34.9mm band on front derailleur
  • Tubing UTS 1150MPa
  • Bright brushed finish as standard
  • Lifetime warranty
  • FAQ's

Rider Height vs Frame Sizing

Rider Height (Ft/in) Rider Height (Metres) Suggested Frame Size
5'1" to 5'4" 1.55m to 1.63m EXTRA EXTRA SMALL
5'3" to 5'6" 1.60m to 1.68m EXTRA SMALL
5'5" to 5'8" 1.65m to 1.73m SMALL
5'7" to 6'0" 1.70m to 1.83m MEDIUM
5'11" to 6'2" 1.80m to 1.88m LARGE
6'1" to 6'4" 1.85m to 1.93m EXTRA LARGE
6'3" to 6'6" 1.91m to 1.98m EXTRA EXTRA LARGE

Frame Sizing

SEAT TUBE C/TOP 490mm 510mm 530mm 540mm
TOP TUBE EFFECTIVE 530mm 550mm 570mm 590mm
BB DROP 72mm 72mm 72mm 72mm
CHAINSTAY LENGTH 407mm 408mm 410mm 410mm
FORK RAKE 43mm 43mm 43mm 43mm
TRAIL 63mm 56mm 56mm 56mm
FRONT CENTRE 578mm 584mm 599mm 619mm
WHEELBASE 974mm 981mm 996mm 1016mm
STANDOVER 753mm 774mm 792mm 804mm
HEAD TUBE 130mm 150mm 170mm 185mm
STACK 541mm 564mm 583mm 597mm
REACH 374mm 382mm 392mm 407mm
