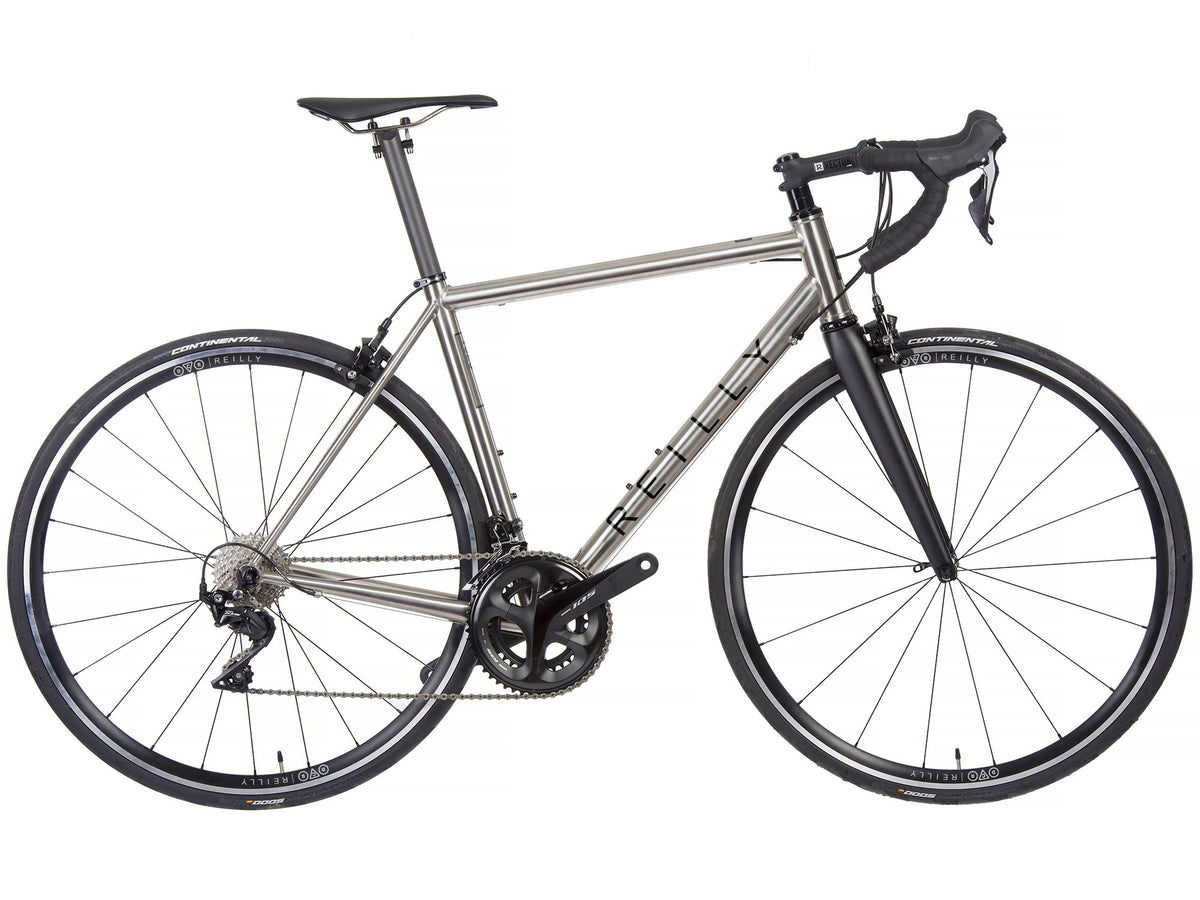

T325C//ROAD CALIPER
The caliper version of Reilly’s much-lauded T325. A road race / sportive favourite, equally suited to the Sunday club run or crushing the miles on your next endurance challenge.
Fast, responsive and surprisingly lightweight, the T325 is the outcome of years of expertise in producing titanium bike frames. It perfectly balances the best qualities of titanium (stiffness, weight, comfort and durability) to produce an exceptionally direct, but velvety smooth road experience. Its ultra-butted 3AL-2.5V tubeset sets it apart as an out-and-out performer, with the timeless style of a classic round-tubed road bike and the all-day comfort synonymous with titanium.
TO BOOK A DEMO RIDE OR FOR HELP WITH BIKE BUILDS CONTACT PHIL 01273 694 143 / SALES@REILLYCYCLEWORKS.COM
Regular price
£4,299.00
incl VAT for UK customers ONLY
Couldn't load pickup availability
Share the T325 with your friends.
BOOK A DEMO RIDE HERE
| Titanium Grade | 3AL - 2.5V |
| Front Derailleur Clamp | 34.9mm Band Adapter |
| Bottom Bracket Shell | Threaded T47 |
| Bottom Bracket | As groupset manufacturer |
| Cable Routing | External Gear Cable Routing; Internal Downtube Brake Hose Routing |
| Fork | UDM Carbon Fork |
| Brakes | Rim brakes as per groupset manufacturer |
| Wheels | DCR x Reilly XT 31 rim brake Wheelset, Tubeless Ready |
| Tyres | Panaracer Agilest TLR 28mm |
| Max Clearance | 700c 28mm |
| Headset | Reilly Aluminium Headset, Black, red as chosen |
| Bars / Width | Reilly Aluminium Compact Bars (Drop 125mm; Reach 75mm, Flare: 4°) or as chosen |
| Stem / Length | Reilly Aluminium Stem (Angle: 84°/-6°) or as chosen |
| Bar Tape | Black EVA Bar Tape |
| Seatpost | Reilly UD Carbon Seatpost, 27.2mmx350mm, with x2 6AL-4V titanium retaining bolts |
| Seat Clamp | Reilly Super Lite Alloy Seat Clamp, Black, 34.9mm |
| Saddle | Reilly Titanium Alloy ‘Airform’ Saddle |
| Frame Features | x2 Bottle Cage Mounts |
| Set-Up | British Standard, whereby the right-hand lever operates the front brake and the left-hand lever operates the rear brake |
| Warranty | Lifetime Frame Warranty (Original Owner Only, Non-Transferable) T&Cs Apply |
Frame Geometry
| SIZE | SMALL | MEDIUM | LARGE | EXTRA LARGE |
| SEAT TUBE C/TOP | 490mm | 510mm | 530mm | 540mm |
| TOP TUBE EFFECTIVE | 530mm | 550mm | 570mm | 590mm |
| BB DROP | 72mm | 72mm | 72mm | 72mm |
| CHAINSTAY LENGTH | 407mm | 408mm | 410mm | 410mm |
| FORK RAKE | 45mm | 45mm | 45mm | 45mm |
| TRAIL | 63mm | 56mm | 56mm | 56mm |
| FRONT CENTRE | 578mm | 584mm | 599mm | 619mm |
| WHEELBASE | 974mm | 981mm | 996mm | 1016mm |
| STANDOVER | 753mm | 774mm | 792mm | 804mm |
| HEAD TUBE | 130mm | 150mm | 170mm | 185mm |
| STACK | 541mm | 564mm | 583mm | 597mm |
| REACH | 374mm | 382mm | 392mm | 407mm |
Simon Withers / Bike Radar – 4.5 Star review read here
“Thrilling, fast road bike with top-notch kit and wheels – a joy to ride.”
David Arthur / Road.cc read the full review here
The Reilly T325 provides a very smooth ride with the sort of handling that will allow sporty types to indulge their performance aspirations. It's fast and very direct. It's a worthy alternative to a carbon fibre race bike.
