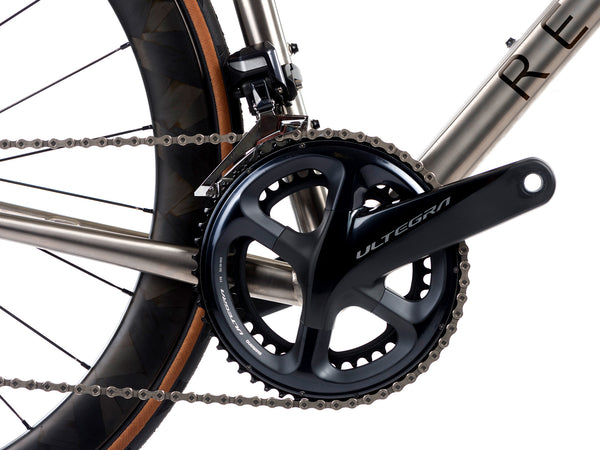

Fusion titanium aero road bike - groupset

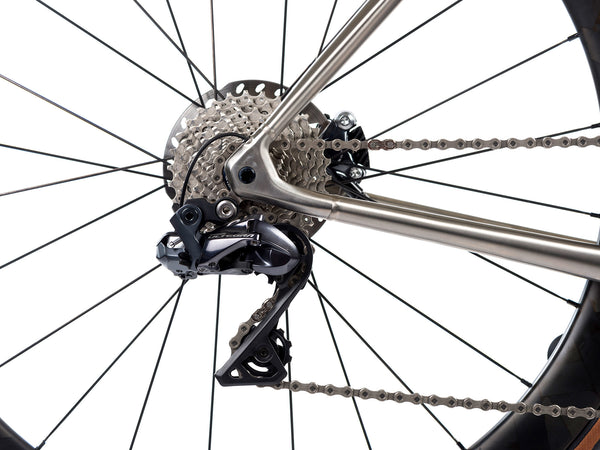

Derailleur

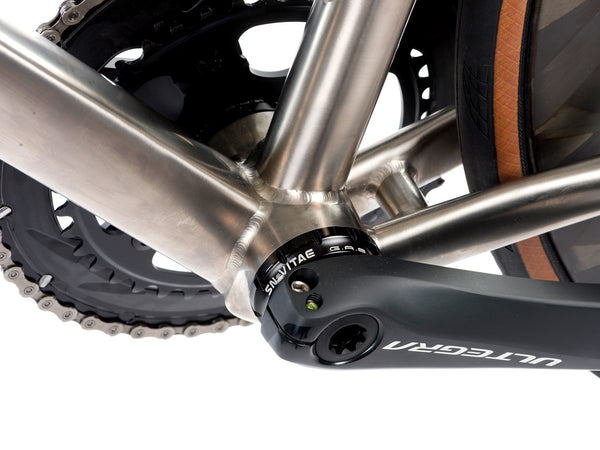

Fusion titanium aero road bike sn vitae bottom bracket

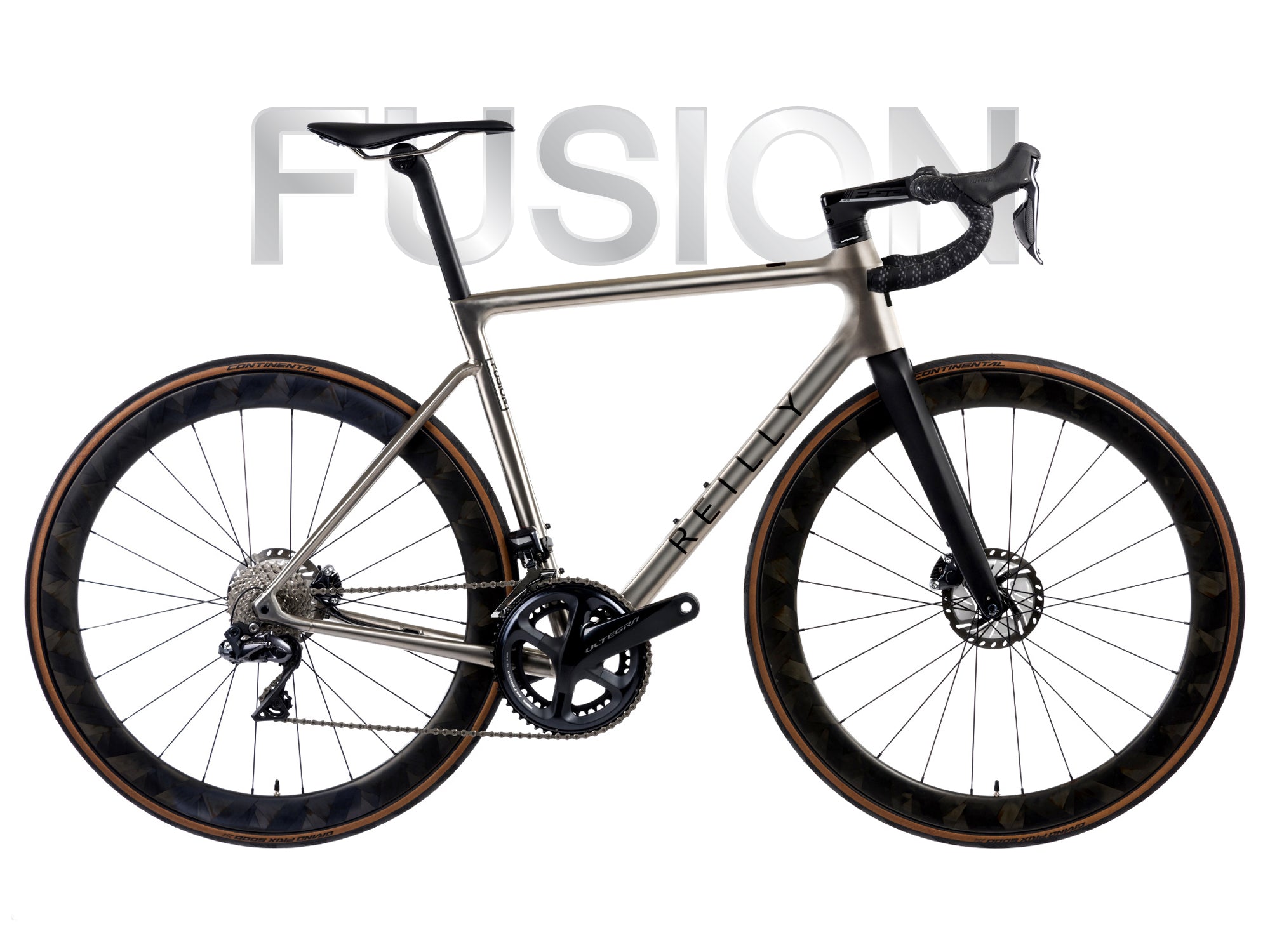

FUSION//AERO ROAD DISC

The REILLY FUSION represents an evolution of Reilly’s road series, combing classic Reilly race geometry, top grade hydroformed titanium tubes, and advanced engineering to create a light, aerodynamic titanium frame to rival carbon equivalents. In a nod to tradition, Reilly’s innovative use of investment casting makes the FUSION a distinctive ti offering in a market of ubiquitous carbon frames.

The nature of investment casting allowed Reilly to mimic the aero shapes usually associated with a carbon mould or 3D printing. The seamless welding of the investment cast parts to 3AL-2.5V tubing highlights the hand-crafted detail associated with all Reilly frames. Fully integrated cable routing gives the bike a sleek and minimal cockpit, while the stunning ‘kamm tail’ tube profile brings additional aero benefit.

Neil FitzGerald, Reilly Co-founder, says of the launch: “Reilly’s Fusion is spearheading the titanium road revolution. It symbolises an exciting time for us, marking a new chapter as we build on our framebuilding heritage, while continuing to innovate to offer all customers their dream ride. We have raised the bar again for road adventurers to create a truly cutting edge bicycle frame to enjoy the great outdoors, whether that’s planning an ultra endurance road trip or sleekly navigating the daily commute.”

£5,999.00

incl VAT for UK customers ONLY

Size XXS XS Small Medium Large XL XXL

Product variants

CONTACT THE SALE TEAM TO DISCUSS YOUR BUILD OR BOOK A DEMORIDE

Chat Email 01959 528 253

To reserve your bike and secure a place in the build queue, a fully-refundable deposit equivalent to 25% of the build cost or frameset is required. Instructions: add to cart > proceed to checkout > enter your contact information > continue to shipping/payment > on the payment page, select 'Bank Deposit.' After clicking 'Complete Order', you will be presented with an Order Confirmation page which displays our bank details. Please use your surname as reference.

Share the Fusion with your friends.

Button label

Titanium Grade	6AL -4V with 3AL - 2.5 V
Front Derailleur Clamp	34.9mm Band Adapter

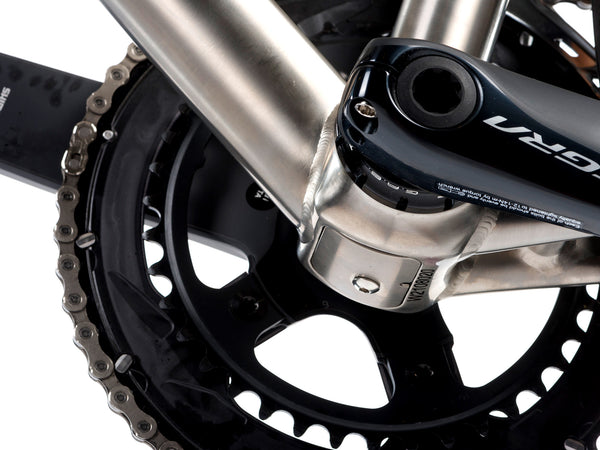

Bottom Bracket Shell	Threaded T47
Bottom Bracket	Praxis T47 BB
Cable Routing	Fully integrated
Fork	Carbon race fork with internal front brake hose routing

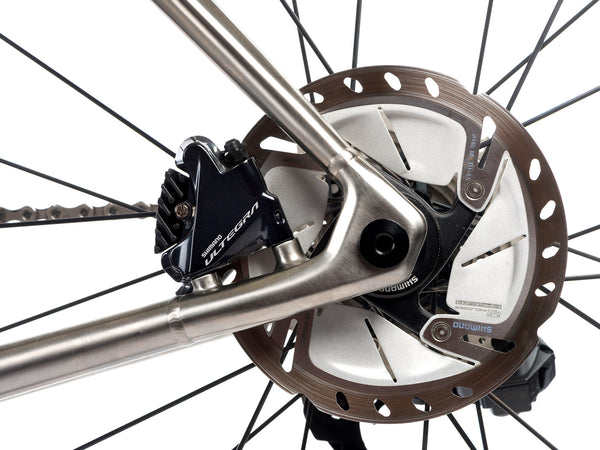

Brakes	Hydraulic Disc with Flat-Mount Calipers
Rotors	160F/140R
Thru Axles	100mmx12mmF; 142mmx12mmR
Wheels	All-road, alloy Tubeless ready
Tyres	Panaracer Agilest
Max Clearance	32mm
Headset / Bars / Stem	Semi integrated / Reilly alloy bars / Reilly alloy stem
Bar Tape	Black EVA Bar Tape
Seatpost	D-shaped carbon seatpost. Zero offset (if you would like 25mm offset please mention in the special requests drop down)
Seat Clamp	Internal titanium seatclamp
Saddle	Reilly Titanium Alloy ‘Airform’ Saddle
Frame Features	x2 Bottle cage mounts
Set-Up	British Standard, whereby the right-hand lever operates the front brake and the left-hand lever operates the rear brake
Warranty	Lifetime Frame Warranty (Original Owner Only, Non-Transferable) T&Cs Apply

SIZE	XS	SMALL	MEDIUM	LARGE	XL	XXL
SEAT TUBE C/TOP	470mm	490mm	510mm	530mm	540mm	575mm
TOP TUBE EFFECTIVE	510mm	530mm	547mm	570mm	590mm	610mm
BB DROP	72mm	72mm	72mm	72mm	72mm	72mm
CHAINSTAY LENGTH	414mm	414mm	414mm	414mm	414mm	414mm
SEAT TUBE ANGLE	75.5°	74°	73.5°	73°	73°	72.5°
HEAD TUBE ANGLE	71.5°	72°	73°	73°	73°	74°
FORK RAKE	43mm	43mm	43mm	43mm	43mm	43mm
FRONT CENTRE	577mm	577mm	579mm	597mm	617mm	621mm
WHEELBASE	980mm	980mm	982mm	1000mm	1021mm	1024mm
HEAD TUBE	110mm	130mm	150mm	170mm	185mm	215mm
STACK	512mm	533mm	555mm	574mm	589mm	621mm
REACH	378mm	377mm	382mm	394mm	410mm	414mm
